38 to 120 Ton Fiberglass Cooling Towers

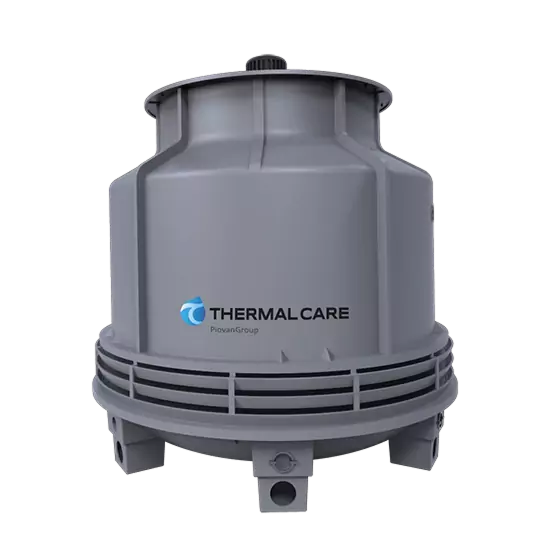

Fiberglass Cooling Tower
These lightweight fiberglass cooling towers are designed for long life and low maintenance at a competitive price. FT Series towers are of a counter flow design, carefully engineered with the optimum combination of heat transfer media, uniform air flow and even water distribution. They provide maximum air/water contact and low air pressure drop to assure efficient heat transfer while minimizing power requirements to save on operating costs.
-
Distributed
Cooling Solutions -
Improve Constancy and Quality
-
Improve
Output -
Utmost Efficiency of Production
Benefits of the FT Series Cooling Tower Features
Lower noise, superior energy efficiency, reduced maintenance, and high reliability from the direct drive between the motor and the fan.
Resists harsh weather, and has a longer life than steel construction towers, especially in industrial manufacturing environments.
Corrosion resistant; perfect for industrial and harsh environments.
Provide optimal efficiency and long life with no rust or corrosion - which can be typical with galvanized steel towers.
Overview
- Sizes from 38 to 120 tons (134 to 422 kW)
- Rugged FRP shell resists corrosion and harsh weather conditions
- FRP water basin with integral sump and mounting feet for easy cleaning and low cost installation
- 360° air intake eliminates tower position problems due to prevailing winds or nearby structures
- PVC fill is designed for maximum air/water contact for efficient heat transfer
- Self-rotating sprinkler system with non-clog openings for long service life
- Cast aluminum or polypropylene direct drive fan has no belts or pulleys to align or replace
- Totally enclosed fan motor is designed for outdoor operation - stands up to severe service duty
- FRP inlet louvers won't corrode and are easy to attach for basin cleaning and fill inspection
- Galvanized motor mounts and discharge grille resist corrosion, never need painting. Grille promotes safety and prevents entry of debris.
- Convenient inspection port for ease of sprinkler head checks, preventive maintenance, and flow observation
- Stainless steel fasteners resist corrosion
- Access ladder makes it easy to reach the fan and motor (60 tons and larger)
- Ten year parts warranty on tower shell
- 12 month parts warranty on all other components
Available Options
FT Series
- Mechanical float valve
- Electrical basin heater package
- Structural steel support base and leg package
- Stainless steel sprinkler head
- Weatherproof thermostat
- Equalization connection allows several tower basins to be connected
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
