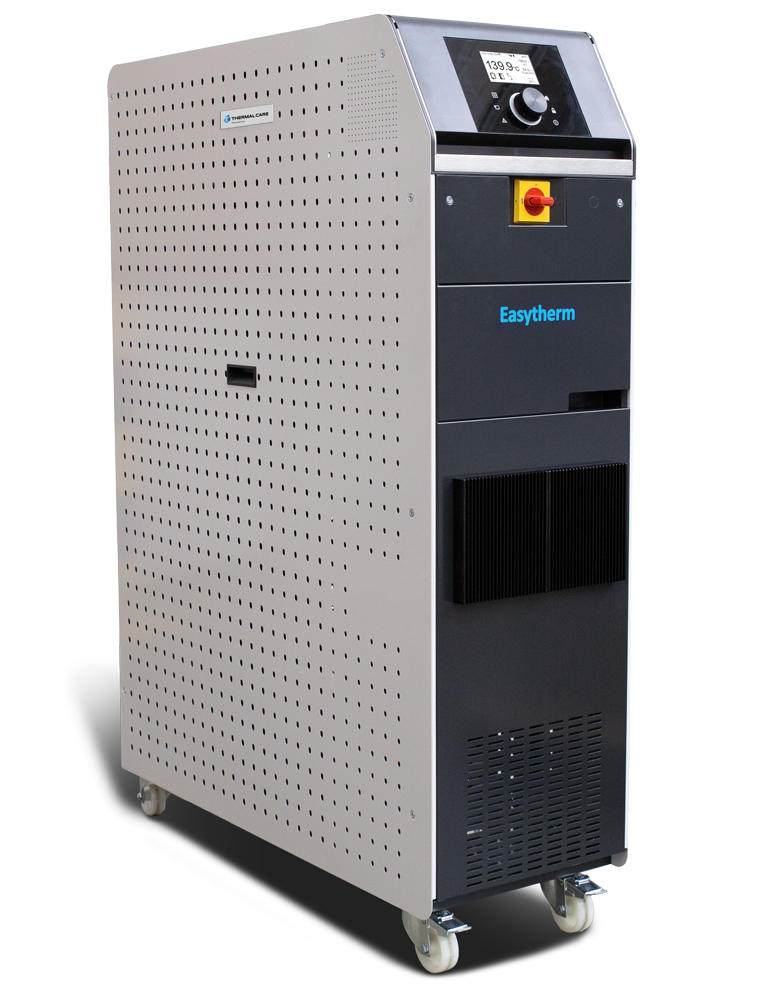

Easytherm Flow
Up to 140°C, 300 l/m or 130 m head
The Easytherm Flow series is designed to meet market needs where high-water flow rates and very precise mold temperature control are required. The temperature controller employs highly reliable components and advanced control to manage and monitor temperature, flow rate, and pressure. The multiprotocol board allows precise interfacing with the injection molding machine.
With the Easytherm Flow series it is possible to equip a specific series of multistage pumps capable of reaching very high flow rates, up to 300 l/min or heads up to 130 meters.
The pump is natively controlled by an inverter that interacts with the HMI of the temperature controller allowing the operator to take action quickly during the molding process. The inverter also allows the pump speed to be set according to the needs of the process ensuring optimal work and containing energy consumption.
In the field, ETP-F allows without any particular setting an important reduction of cycle time and a faster start-up of the mold up to 20 %.
Considering the result in terms of high efficiency achievement ETP-F series allows a fast payback of the investment.
ETP-F series offers a wide range of solutions in terms of pump performance, heat exchangers such as, coil, plate system, and direct injection for high cool efficiency.
-
Energy-saving inverter operation
-
Reduced cycle time - Fast start-up
-
Quick payback (ROI)
-
Easy to operate
Benefits of the Easytherm Flow Temperature Controller Features
Seamless integration with injection molding machines.
Pumps up to 300 l/min or 130 m head for fast, efficient cooling.
Select indirect or direct cooling depending on process needs
Adjust flow quickly and optimize energy consumption.
Overview
- High capacity water temperature control maintains stable temperatures up to 140°C.
- Flexibile heating, flow and pressure optons to match specific product specifications.
- Simple, intuitive set up and operation with LED status indicators.
- Built for long term reliability and reduced downtime.
- OPC-UA and other protocols enable integration with modern production systems.
- Indirect cooling mode for safe, efficient cooling.
Additional Features
- Water process fluid system
- Insulation made of special material conferrable in standard waste in case of replacement
- Flow sensor for temperature till 120°C
- Top version HMI drives the operator on setting parameters and through an easy and immediate status check of the system
Available Options
- Multiprotocol communication interface (Current Loop, Ethernet, RS485, Profinet, Profibus, Device-net, Ethernet IP and Powerlink)
- Multi-stage pump for a high process efficiency
Resources
Brochures
Specifications
Specification Tables
| Model | ETP-F 112 | ETP-F 118 | ETP-F 124 | ETP-F 136 |
|---|---|---|---|---|
| Maximum Temperature | 140°C | 140°C | 140°C | 140°C |
| Heating Power | 12 kW | 18 kW | 24 kW | 36 kW |
| Heat Exchanger | Coil or Plate | Coil or Plate | Coil or Plate | Coil or Plate |
| Maximum Flow Rate Pump - P107HT Maximum Flow Rate Pump - P106HT Maximum Flow Rate Pump - P59HT |
300 l/min 260 l/min 160 l/min |
300 l/min 260 l/min 160 l/min |
300 l/min 260 l/min 160 l/min |
300 l/min 260 l/min 160 l/min |
| Pump Head - P107HT Pump Head - P106HT Pump Head - P59HT |
300 m 110 m 100 m |
300 m 110 m 100 m |
300 m 110 m 100 m |
300 m 110 m 100 m |
| Flow Sensor (Maximum Working Temperature = 120°C) |
Optional | Optional | Optional | Optional |
| Pump Type (P107HT / P106HT / P59HT) |
Multi-Stage Pump in Stainless Steel |
Multi-Stage Pump in Stainless Steel |
Multi-Stage Pump in Stainless Steel |
Multi-Stage Pump in Stainless Steel |
| Dimensions L x W x H |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
| Model | ETP-F 112 ID | ETP-F 118 ID | ETP-F 124 ID |
|---|---|---|---|
| Maximum Temperature | 90°C | 90°C | 90°C |
| Heating Power | 12 kW | 18 kW | 24 kW |
| Heat Exchanger | Direct Injection | Direct Injection | Direct Injection |
| Maximum Flow Rate Pump - P107 Maximum Flow Rate Pump - P106 Maximum Flow Rate Pump - P59 |
300 l/min 260 l/min 160 l/min |
300 l/min 260 l/min 160 l/min |
300 l/min 260 l/min 160 l/min |
| Pump Head - P107HT Pump Head - P106HT Pump Head - P59HT |
300 m 110 m 100 m |
300 m 110 m 100 m |
300 m 110 m 100 m |
| Flow Sensor (Maximum Working Temperature = 120°C) |
Optional | Optional | Optional |
| Pump Type (P107HT / P106HT / P59HT) |
Multi-Stage Pump in Cast Iron |
Multi-Stage Pump in Cast Iron |
Multi-Stage Pump in Cast Iron |
| Dimensions L x W x H |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
