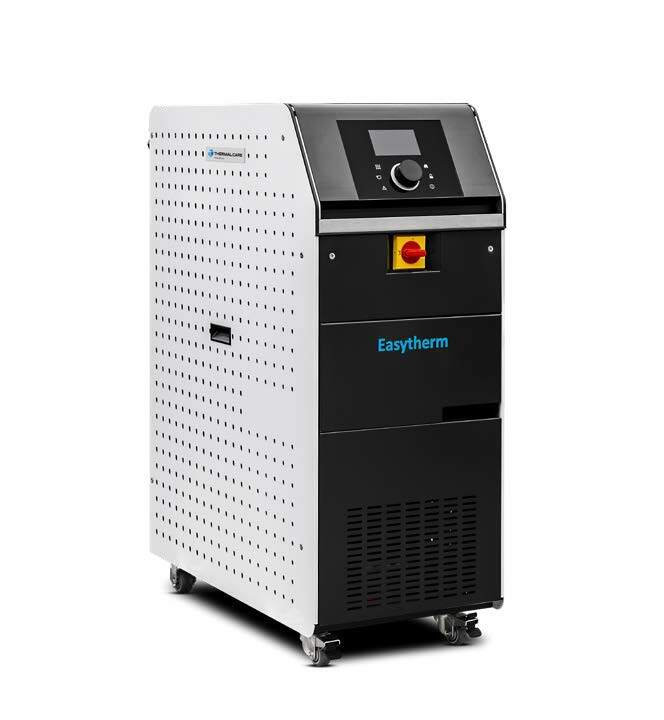

Easytherm ETW 112-136
Up to 90°C
Easytherm EW is the new mould temperature series uses water as process fluid with an open system configuration, for injection, blow moulding and extrusion processes.
A new interior and exterior layout, redesigned ergonomic control, coupled with high-end components, characterise a versatile machine that guarantees reliability and long term performances. Easytherm EW operates at temperatures up to 90°C.
The large 4.3” TFT high contrast display is tilted to ensure easy reading. Navigation in the sub menus is managed via a convenient knob.
Easytherm EW is already set up for use in Industry 4.0 environments with a wide range of communication protocols, including OPC-UA platform and is Winfactory 4.0 ready.
-
Easy to use
-
Robust construction for industrial applications
-
Precise temperature control
-
Up to 90°C operating temperature
Benefits of the Easytherm ETW 112-136 Temperature Controller Features
Quick visibility of machine status, in an intuitive control interface for simple operation and monitoring.
Configurable for diverse production requirements
Stable control up to 90°C.
Built for industrial manufacturing settings using premium quality components for long life and durability.
Overview
- Flexibile temperature control maintains precise operation up to 90°C for consistent product quality.
- Configurable pump and heating/cooling options for diverse process needs.
- Premium materials ensure long term reliability and minimal downtime.
- High contrast display with LED status and easy to navigate controls.
- Industry 4.0 ready with OPC-UA connectivity enables integration with modern production systems.
- Indirect cooling mode provides efficient and safe cooling for sensitive processes.
Additional Features
- Three electrical feeding options: 380/3/60, 400/3/50 and 460/3/60 (V, Ph, Hz)
- Application to manage a mould temperature probe or a thermocouple
- Water process fluid system
- Dedicated refilling line for process water
- Maximizing reliability and machine lifespan, with minimum maintenance
- Direct access to the main and most common funtion is through six capacitive short cuts touch buttons
Available Options
- 2 or 4 ways manifold
- Additional filters
- Pressure transducer (flow rate calculation)
- Remote connection for enable and alarm
- Anti-corrosive kit (to avoid any risk of galvanic corrosion with the consequent risk of damages to contaminant release)
- Quick mould discharge
- Communication interface (Current Loop, Ethernet, RS485, Profinet, Profibus, Device-net, Ethernet IP and Powerlink)
- In case of multiple zones mould, they can be connected to one another via RS485, Current Loop or Ethernet
Resources
Brochures
Specifications
Specification Tables
| Model | ETW 112 | ETW 118 | ETW 124 | ETW 136 |
|---|---|---|---|---|
| Maximum Temperature | 90°C | 90°C | 90°C | 90°C |
| Heating Power | 12 kW | 18 kW | 24 kW | 36 kW |
| Cooling Power (kW) / ΔT = 70°C |
65 Coil or 90 Plates |
65 Coil or 90 Plates |
65 Coil or 90 Plates |
65 Coil or 90 Plates |
| Heat Exchanger | Coil or Plate | Coil or Plate | Coil or Plate | Coil or Plate |
| Maximum Flow Rate Pump - P8 Maximum Flow Rate Pump - P9 Maximum Flow Rate Pump - P12 Maximum Flow Rate Pump - P14 |
40 l/min 60 l/min 100 l/min 200 l/min |
40 l/min 60 l/min 100 l/min 200 l/min |
40 l/min 60 l/min 100 l/min 200 l/min |
40 l/min 60 l/min 100 l/min 200 l/min |
| Head Pump - P8 / P9 / P12 Head Pump - P14 |
60 m 37 m |
60 m 37 m |
60 m 37 m |
60 m 37 m |
| Load Power Pump - P8 / P9 Load Power Pump - P12 / P14 |
0.75 kW 1.5 kW |
0.75 kW 1.5 kW |
0.75 kW 1.5 kW |
0.75 kW 1.5 kW |
| Reversible Pump - P8 / P9 / P12 Reversible Pump - P14 |
Yes No |
Yes No |
Yes No |
Yes No |
| Dimensions L x W x H |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
