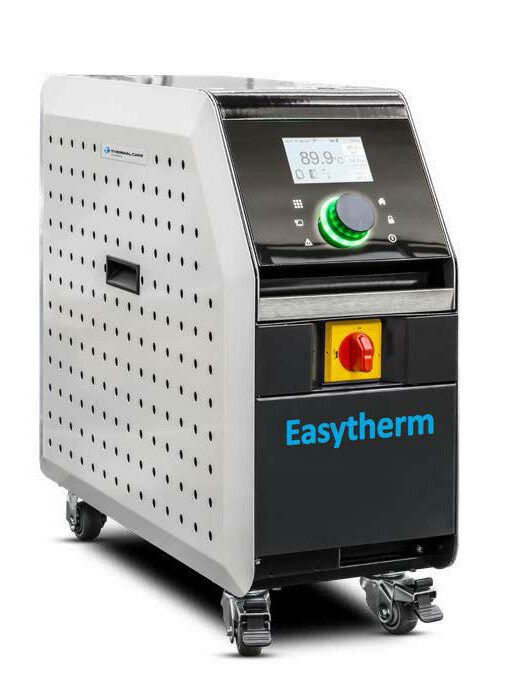

Easytherm ETW
Up to 90 °C
Easytherm ETW is the new mould temperature series uses water as process fluid with an open system configuration, for injection, blow moulding and extrusion processes.
A new interior and exterior layout, redesigned ergonomic control, coupled with high-end components, characterise a versatile machine that guarantees reliability and long term performances. Easytherm ETW operates at temperatures up to 90°C.
The large 4.3” TFT high contrast display is tilted to ensure easy reading. Navigation in the sub menus is managed via a convenient knob.
Easytherm EW is already set up for use in Industry 4.0 environments with a wide range of communication protocols, including OPC-UA platform and is Winfactory 4.0 ready.
-
Easy to use
-
Precise temperature control
-
Robust construction for industrial applications
-
Up to 90°C operating temperature
Benefits of the Easytherm ETW Temperature Controller Features
Clear visibility and intuitive operation.
Reliable control up to 90°C.
A small footprint allows this TCU to fit where others will not.
High quality construction ensures long term reliability.
Overview
- Maintains stable operation up to 90°C.
- Fast response thermal elements provide accurate and reliable performance.
- Easy to use thanks to TFT 4.3” display, frontal status led and intuitive controls
- Robust, premium components ensures long term reliability and mininimal maintenance.
- OPC-UA and Winfactory 4.0 are Industry 4.0 ready.
- Indirect cooling mode for efficient heat removal.
Additional Features
- Four electrical feeding options: 380/3/60, 400/3/50, 440/3/60 and 460/3/60 (V, Ph, Hz)
- Application to manage a mould temperature probe or a thermocouple
- Clear display to keep the important information always visible
- Pressurized water process fluid system
- Ergonomic design with an integrated handlebar
- One of the most smaller units on the market (high flow rate models even in HT version share the same compact chassis)
Available Options
- 2 or 4 ways manifold
- Additional filters
- Flow meter keeps under control the process water flow rate and detects leakeage in the circuit
- Remote connection for enable and alarm
- Flow Through Heater (FTH) avoids any risk of corrosion and failure of the heating elements and maximize heat transfer
- Process water loading line separate from the cooling circuit
- Pressure gauge
- Quick mould discharge
- Sludge remover filter
- Heating element made from highly corrosion resistant alloy (Incoloy825), easily removable for cleaning and maintenance
- Communication interface (Current Loop, Ethernet, RS485, Profinet, Profibus, Device-net, Ethernet IP and Powerlink)
Resources
Brochures
Specifications
Specification Tables
| Model | ETW 09 | ETW 12 |
|---|---|---|
| Maximum Temperature | 90°C | 90°C |
| Heating Power | 9 kW | 12 kW |
| Cooling Power (kW) / ΔT = 80°C Flow |
45 kW | 45 kW |
| Heat Exchanger | Plate | Plate |
| Maximum Flow Rate Pump - P6 Maximum Flow Rate Pump - P7 |
60 l/min 70 l/min |
60 l/min 70 l/min |
| Pump Head - P6 Pump Head - P7 |
38 m 60 m |
38 m 60 m |
| Load Power Pump - P6 Load Power Pump - P7 |
0.5 kW 1.0 kW |
0.5 kW 1.0 kW |
| Reversible Pump - P6 Reversible Pump - P7 |
Yes Yes |
Yes Yes |
| Dimensions L x W x H |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
