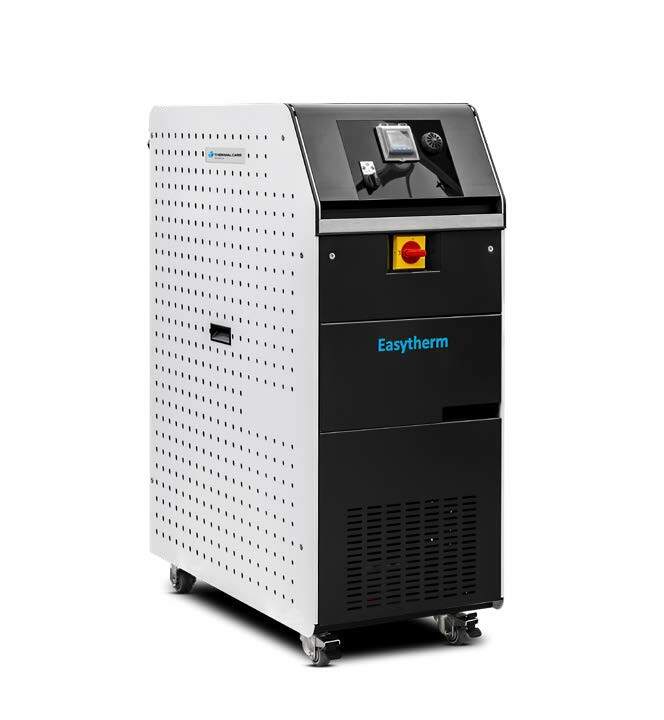

Easytherm EMW 112-124
Up to 90°C
Easytherm EW is the new mould temperature series uses water as process fluid with an open system configuration, for injection, blow moulding and extrusion processes.
A new interior and exterior layout, redesigned ergonomic control, coupled with high-end components, characterise a versatile machine that guarantees reliability and long term performances. Easytherm EW operates at temperatures up to 90 °C.
The large 4.3” TFT high contrast display is tilted to ensure easy reading. Navigation in the sub menus is managed via a convenient knob.
Easytherm EW is already set up for use in Industry 4.0 environments with a wide range of communication protocols, including OPC-UA platform and is Winfactory 4.0 ready.
-
Easy to use
-
Precise temperature control
-
Robust construction for industrial applications
-
Up to 90°C operating temperature
Benefits of the Easytherm EMW 112-124 Temperature Controller Features
Easy programming and real time system visibility.
Pump performance up to 200 l/min.
Maintains product quality and system performance
Reliable performance up to 90°C.
Redesigned internal layout with best in class components and a compact footprint.
Overview
- Delivers stable stable and reliable performance up to 90°C.
- Flexible flow and pressures up to 200 l/min.
- User friendly controls and clear interface for simple, intuitive operation.
- Intuitive controls simplfy setup and monitoring for operators of any experience level.
- Robust industrial design and premium parts ensure long term reliability.
- Indirect cooling mode for efficient heat removal.
Additional Features
- Four electrical feeding options: 380/3/60, 400/3/50, 440/3/60 and 460/3/60 (V, Ph, Hz)
- Internal tank made in AISI304 stainless steel in order to increase corrosion resistance
- Water / Open process fluid system
- Different pump types available to meet customer requirements
Available Options
- 2 or 4 ways manifold
- Additional filters
- Pressure switch to detect water flow
- Reversible running mode
- Acoustic alarm
- Communication interface (Current Loop and Modbus RTU)
Resources
Brochures
Specifications
Specification Tables
| Model | EMW 112 | EMP 118 | EMP 124 |
|---|---|---|---|
| Maximum Temperature | 90°C | 90°C | 90°C |
| Heating Power | 12 kW | 18 kW | 24 kW |
| Cooling Power (kW) / ΔT = 70°C |
65 Coil or 90 Plates |
65 Coil or 90 Plates |
65 Coil or 90 Plates |
| Heat Exchanger | Coil or Plate | Coil or Plate | Coil or Plate |
| Maximum Flow Rate - Pump P8 Maximum Flow Rate - Pump P9 Maximum Flow Rate - Pump P12 Maximum Flow Rate - Pump P14 |
40 l/min 60 l/min 100 l/min 200 l/min |
40 l/min 60 l/min 100 l/min 200 l/min |
40 l/min 60 l/min 100 l/min 200 l/min |
| Head - Pump P8 Head - Pump P9 Head - Pump P12 Head - Pump P14 |
60 m 60 m 60 m 37 m |
60 m 60 m 60 m 37 m |
60 m 60 m 60 m 37 m |
| Load Power - Pump P8 Load Power - Pump P9 Load Power - Pump P12 Load Power - Pump P14 |
0.75 kW 0.75 kW 1.5 kW 1.5 kW |
0.75 kW 0.75 kW 1.5 kW 1.5 kW |
0.75 kW 0.75 kW 1.5 kW 1.5 kW |
| Reversible | Yes | Yes | Yes |
| Dimensions L x W x H |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
