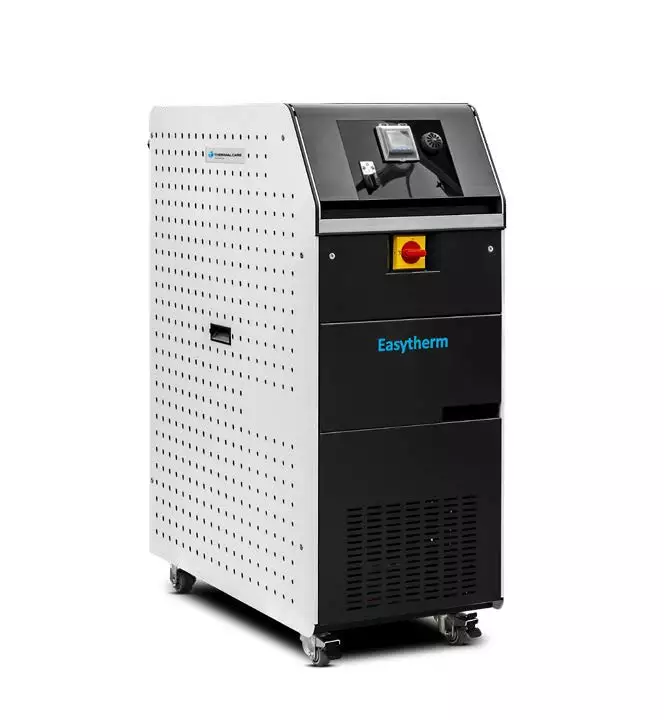

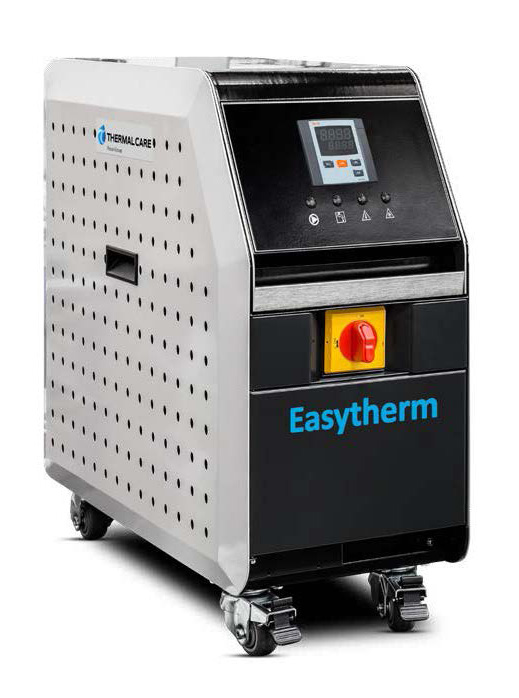

Easytherm EBW-EMW
Up to 90°C
Easytherm EW is the new mould temperature series uses water as process fluid with an open system configuration, for injection, blow moulding and extrusion processes.
A new interior and exterior layout, redesigned ergonomic control, coupled with high-end components, characterise a versatile machine that guarantees reliability and long term performances. Easytherm EW operates at temperatures up to 90°C.

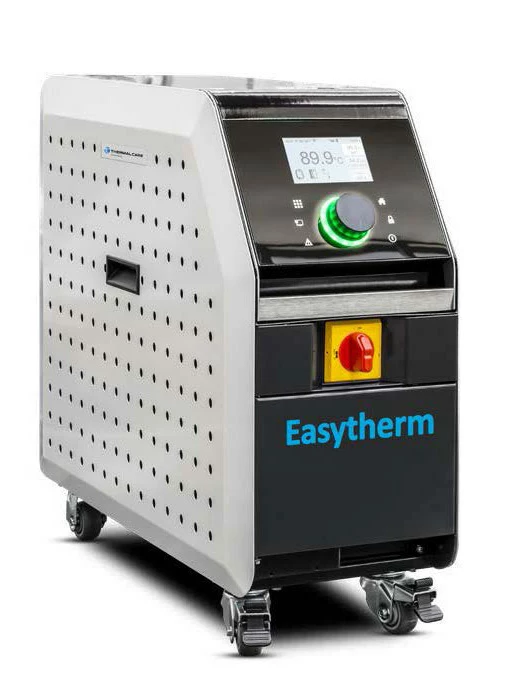

The large 4.3” TFT high contrast display is tilted to ensure easy reading. Navigation in the sub menus is managed via a convenient knob.
Easytherm EW is already set up for use in Industry 4.0 environments with a wide range of communication protocols, including OPC-UA platform and is Winfactory 4.0 ready.
-
Easy to use
-
Precise temperature control
-
Robust construction for industrial applications
-
Up to 90°C operating temperature
Benefits of the Easytherm EW Temperature Controller Features
Easy programming and real time system visibility.
Consistent performance up to 90°C.
Faster heat up, tighter accuracy, improved reliability.
Redesigned internal layout with best-in-class components and a compact footprint.
Overview
- Delivers stable stable and reliable performance up to 90°C.
- High performance heating elements ensure accurate and reliable performance.
- User friendly controls and clear interface for simple, intuitive operation.
- Best in class components for long service life and reliability.
- Indirect cooling mode for efficient heat removal.
Additional Features
- Four electrical feeding options: 380/3/60, 400/3/50, 440/3/60 and 460/3/60 (V, Ph, Hz)
- Water / Open process fluid system
Available Options
- 2 or 4 ways manifold
- Additional filters
- Acoustic alarm
- Reversible running mode
- Flow meter for process water
- Sludge remover filter
- Pressure switch to detect water flow; for EMW models only
- Communication interface (Current Loop); for EMW models only
Resources
Brochures
Specifications
Specification Tables
| Model | EBW 09 | EBW 12 | EMW 09 | EMW 12 |
|---|---|---|---|---|
| Maximum Temperature | 90°C | 90°C | 90°C | 90°C |
| Heating Power | 12 kW | 18 kW | 9 kW | 12 kW |
| Cooling Power (kW) / ΔT = 70°C |
21 kW | 21 kW | 21 kW | 21 kW |
| Heat Exchanger | Coil | Coil | Coil | Coil |
| Maximum Flow Rate Pump - P6 Maximum Flow Rate Pump - P7 |
60 l/min 70 l/min |
60 l/min 70 l/min |
60 l/min 70 l/min |
60 l/min 70 l/min |
| Pump Head - P6 Pump Head - P7 |
38 m 60 m |
38 m 60 m |
38 m 60 m |
38 m 60 m |
| Load Power Pump - P6 Load Power Pump - P7 |
0.5 kW 1.0 kW |
0.5 kW 1.0 kW |
0.5 kW 1.0 kW |
0.5 kW 1.0 kW |
| Reversible Pump - P6 Reversible Pump - P7 |
Yes Yes |
Yes Yes |
Yes Yes |
Yes Yes |
| Dimensions L x W x H |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
