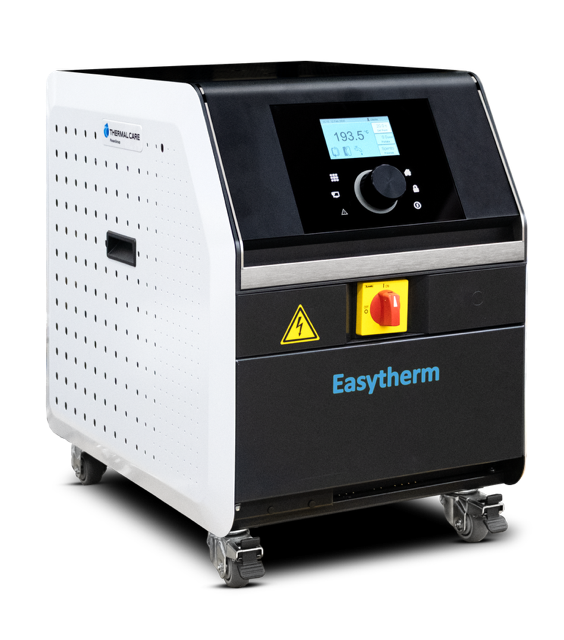

Easytherm ETP/ETP HT
Up to 200 °C
Easytherm is the new mould temperature control unit characterized by user- friendliness, flexibility and reliability, for injection and blow moulding and extrusion processes.
A new interior and exterior layout, redesigned ergonomic control, coupled with high-end components, characterise a versatile machine that guarantees reliability and long term performances.
Easytherm operates at temperatures up to 200°C HT. Maximum reliability is assured thanks to technologies such as magnetic driven pumps or Flow Through Heaters.
The large 4.3” TFT high contrast display is tilted to ensure easy reading. Navigation in the sub menus is managed via a convenient knob.
Easytherm is already set up for use in Industry 4.0 environments with a wide range of communication protocols, including OPC-UA platform and is Winfactory 4.0 ready.
-
Precise temperature control
-
Easy to use
-
Robust construction for industrial applications
-
Up to 200°C operating temperature
Benefits of the Easytherm ETP/ETP HT Temperature Controller Features
Intuitive interface for easy monitoring and status visualization.
Reliable control up to 200°C
Minimizes maintenance and improves reliability.
Designed for small spaces, the ETP will fit just about anywhere.
Ensure rapid, stable heating performance.
Overview
- Precise and effective temperature control maintains stable high temperature operation up to 200°C.
- Fast response heating elements ensure accurate and reliable performance.
- TFT 4.3” display, frontal status LED and intuitive controls simply monitoring and adjustment.
- Robust design using premium components, magnetic driven pumps, and flow through heaters to ensure long term reliability.
- Industry 4.0 ready with OPC-UA and Winfactory 4.0 compatibility.
- Indirect cooling mode protects the process without compromising product quality.
Additional Features
- Four electrical feeding options: 380/3/60, 400/3/50, 440/3/60 and 460/3/60 (V, Ph, Hz)
- Application to manage a mould temperature probe or a thermocouple
- Clear display to keep the important information always on display
- Pressurized water process fluid system
- Ergonomic design with an integrated handle bar
- One of the most smaller units on the market (all the high flow rate models event the HT version share the same compact chassis)
Available Options
- 2 or 4 ways manifold
- Additional filters
- Flow meter for process water
- Remote connection for enable and alarm
- Pressure gauge
- Process water loading line separate from the cooling circuit
- Quick mould discharge
- Sludge remove filter
- Flow Through Heater (FTH) avoids any risk of corrosion and failure of the heating elements and maximize heat transfer
- Communication interface (Current Loop, Ethernet, RS485, Profinet, Profibus, Device-net, Ethernet IP and Powerlink)
Resources
Brochures
Specifications
Specification Tables
| Model | ETP 06 (Small) |
ETP 06 (Large) |
ETP 12 (Small) |
ETP 12 (Large) |
|---|---|---|---|---|
| Maximum Temperature | 140°C | 140°C | 140°C | 140°C |
| Heating Power | 6 kW | 6 kW | 12 kW | 12 kW |
| Cooling Power (kW) / ΔT = 130°C |
82 kW | 82 kW | 82 kW | 82 kW |
| Heat Exchanger | Plate | Plate | Plate | Plate |
| Maximum Flow Rate - Pump P8 Maximum Flow Rate - Pump P9 |
40 I/min 60 I/min |
40 I/min 60 I/min |
40 I/min 60 I/min |
40 I/min 60 I/min |
| Head - Pump P8 Head - Pump P9 |
60 m 60 m |
60 m 60 m |
60 m 60 m |
60 m 60 m |
| Load Power - Pump P8 Load Power - Pump P9 |
0.75 kW 0.75 kW |
0.75 kW 0.75 kW |
0.75 kW 0.75 kW |
0.75 kW 0.75 kW |
| Pump Type - Pump P8 Pump Type - Pump P9 |
Mechanical Sealing Mechanical Sealing |
Mechanical Sealing Mechanical Sealing |
Mechanical Sealing Mechanical Sealing |
Mechanical Sealing Mechanical Sealing |
| Dimensions L x W x H |
260 x 620 x 600 mm | 400 x 692 x 600 mm | 260 x 620 x 600 mm | 400 x 692 x 600 mm |
| Model | ETP HT 06 (Small) |
ETP HT 06 (Large) |
ETP HT 12 (Small) |
ETP HT 12 (Large) |
|---|---|---|---|---|
| Maximum Temperature | 180°C | 180°C | 180°C | 180°C |
| Heating Power | 6 kW | 6 kW | 12 kW | 12 kW |
| Cooling Power (kW) / ΔT = 130°C |
82 kW | 82 kW | 82 kW | 82 kW |
| Heat Exchanger | Plate | Plate | Plate | Plate |
| Maximum Flow Rate - Pump P10 Maximum Flow Rate - Pump P11 |
60 I/min 30 I/min |
60 I/min 30 I/min |
60 I/min 30 I/min |
60 I/min 30 I/min |
| Head - Pump P10 Head - Pump P11 |
60 m 50 m |
60 m 50 m |
60 m 50 m |
60 m 50 m |
| Load Power - Pump P10 Load Power - Pump P11 |
1.0 kW 0.5 kW |
1.0 kW 0.5 kW |
1.0 kW 0.5 kW |
1.0 kW 0.5 kW |
| Pump Type - Pump P10 Pump Type - Pump P11 |
Magnetic Drive Magnetic Drive |
Magnetic Drive Magnetic Drive |
Magnetic Drive N / A |
Magnetic Drive N / A |
| Dimensions L x W x H |
260 x 620 x 600 mm | 400 x 692 x 600 mm | 260 x 620 x 600 mm | 400 x 692 x 600 mm |
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
