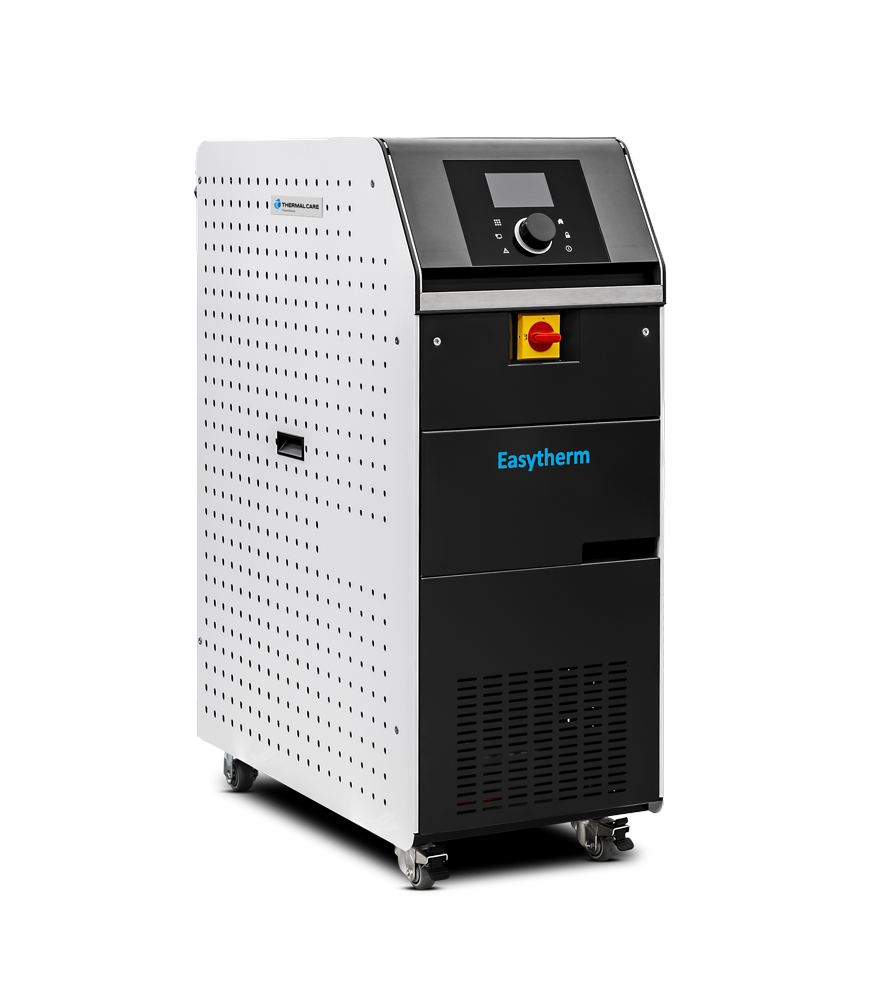

Easytherm ETP 112-136/ETP HT 112-136
Up to 180°C
Easytherm is the new mould temperature control unit characterized by user- friendliness, flexibility and reliability, for injection and blow moulding and extrusion processes.
A new interior and exterior layout, redesigned ergonomic control, coupled with high-end components, characterise a versatile machine that guarantees reliability and long term performances.
Easytherm operates at temperatures up to 180°C HT. Maximum reliability is assured thanks to technologies such as magnetic driven pumps or Flow Through Heaters.
The large 4.3” TFT high contrast display is tilted to ensure easy reading. Navigation in the sub menus is managed via a convenient knob.
Easytherm is already set up for use in Industry 4.0 environments with a wide range of communication protocols, including OPC-UA platform and is Winfactory 4.0 ready.
-
Precise temperature control
-
Easy to use
-
Robust construction for industrial applications
-
Up to 180°C operating temperature
Benefits of the Easytherm ETP 112-136/ETP HT 112-136 Temperature Controller Features
Immediate machine status at a glance.
Optimized flow and thermal performance.
Protects product quality and system performance.
Reliable control up to 180°C.
Overview
- High capacity water temperature control maintains stable temperatures up to 180°C.
- Flexibile heating, flow and pressure optons to match specific product specifications.
- Simple, intuitive set up and operation with LED status indicators.
- Built for long term reliability and reduced downtime.
- OPC-UA and other protocols enable integration with modern production systems.
- Indirect cooling mode protects the process without compromising product quality.
Additional Features
- Three electrical feeding options: 380/3/60, 400/3/50, and 460/3/60 (V, Ph, Hz)
- Application to manage a mould temperature probe or a thermocouple
- Refilling of the process water can be done from the cooling water circuit or from a dedicated line
- Tubular heaters are realized with Incoloy 800 to guarantee a high corrosive resistance
- Quick mould discharge
Available Options
- 2 or 4 ways manifold
- Additional filters
- Pressure transducer (flow rate calculation)
- Remote connection for enable and alarm
- Pressure gauge
- Anti-corrosive kit (to avoid any risk of galvanic corrosion with the consequent risk of damages and contaminant release)
- Communication interface (Current Loop, Ethernet, RS485, Profinet, Profibus, Device-net, Ethernet IP and Powerlink)
Resources
Brochures
Specifications
Specification Tables
| Model | ETP 112 | ETP 118 | ETP 124 | ETP 136 |
|---|---|---|---|---|
| Maximum Temperature | 140°C | 140°C | 140°C | 140°C |
| Heating Power | 12 kW | 18 kW | 24 kW | 36 kW |
| Cooling Power (kW) / ΔT = 110°C |
100 Coil or 125 Plates |
100 Coil or 125 Plates |
100 Coil or 125 Plates |
100 Coil or 125 Plates |
| Heat Exchanger | Coil or Plate | Coil or Plate | Coil or Plate | Coil or Plate |
| Maximum Flow Rate - Pump P8 Maximum Flow Rate - Pump P9 Maximum Flow Rate - Pump P12 Maximum Flow Rate - Pump P14 Maximum Flow Rate - Pump P15 Maximum Flow Rate - Pump 9M |
40 l/min 60 l/min 100 l/min 200 l/min 300 l/min 60 l/min |
40 l/min 60 l/min 100 l/min 200 l/min 300 l/min 60 l/min |
40 l/min 60 l/min 100 l/min 200 l/min 300 l/min 60 l/min |
40 l/min 60 l/min 100 l/min 200 l/min 300 l/min 60 l/min |
| Pump Head - P8 Pump Head - P9 Pump Head - P12 Pump Head - P14 Pump Head - P15 Pump Head - 9M |
60 m 60 m 60 m 37 m 58 m 60 m |
60 m 60 m 60 m 37 m 58 m 60 m |
60 m 60 m 60 m 37 m 58 m 60 m |
60 m 60 m 60 m 37 m 58 m 60 m |
| Pump Load Power - P8 Pump Load Power - P9 Pump Load Power - P12 Pump Load Power - P14 Pump Load Power - P15 Pump Load Power - 9M |
0.75 kW 0.75 kW 1.5 kW 1.5 kW 4.0 kW 1.0 kW |
0.75 kW 0.75 kW 1.5 kW 1.5 kW 4.0 kW 1.0 kW |
0.75 kW 0.75 kW 1.5 kW 1.5 kW 4.0 kW 1.0 kW |
0.75 kW 0.75 kW 1.5 kW 1.5 kW 4.0 kW 1.0 kW |
| Dimensions L x W x H |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |

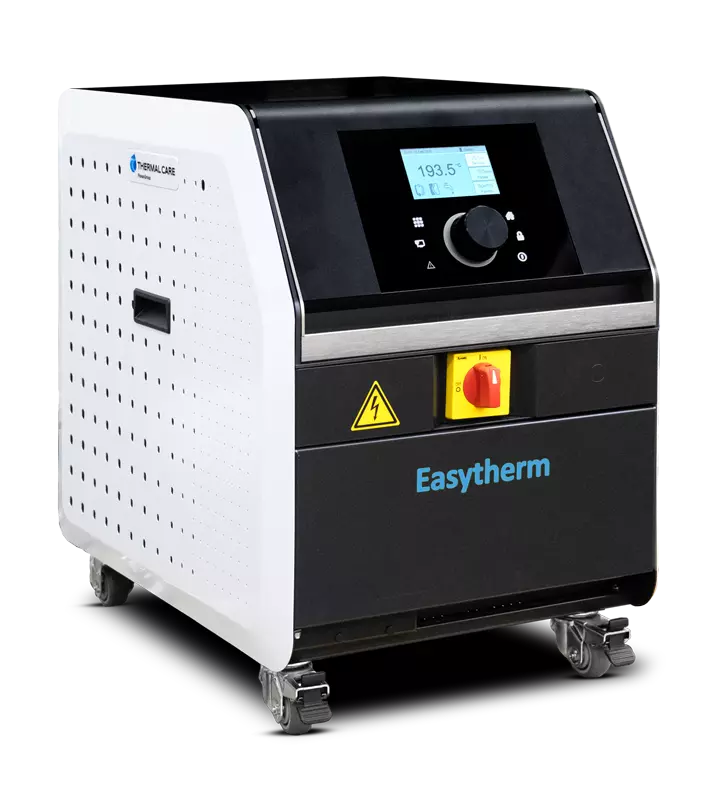

| Model | ETP HT 112 | ETP HT 118 | ETP HT 124 | ETP HT 136 |
|---|---|---|---|---|
| Maximum Temperature | 180°C | 180°C | 180°C | 180°C |
| Heating Power | 12 kW | 18 kW | 24 kW | 36 kW |
| Cooling Power (kW) / ΔT = 110°C |
100 Coil or 125 Plates |
100 Coil or 125 Plates |
100 Coil or 125 Plates |
100 Coil or 125 Plates |
| Heat Exchanger | Coil or Plate | Coil or Plate | Coil or Plate | Coil or Plate |
| Maximum Flow Rate - Pump 9M Maximum Flow Rate - Pump 13M Maximum Flow Rate - Pump 16M |
60 l/min 150 l/min 200 l/min |
60 l/min 150 l/min 200 l/min |
60 l/min 150 l/min 200 l/min |
60 l/min 150 l/min 200 l/min |
| Head - Pump 9M Head - Pump 13M Head - Pump 16M |
60 m 50 m 65 m |
60 m 50 m 65 m |
60 m 50 m 65 m |
60 m 50 m 65 m |
| Load Power - Pump 9M Load Power - Pump 13M Load Power - Pump 16M |
1.0 kW 2.8 kW 4.0 kW |
1.0 kW 2.8 kW 4.0 kW |
1.0 kW 2.8 kW 4.0 kW |
1.0 kW 2.8 kW 4.0 kW |
| Dimensions L x W x H |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
