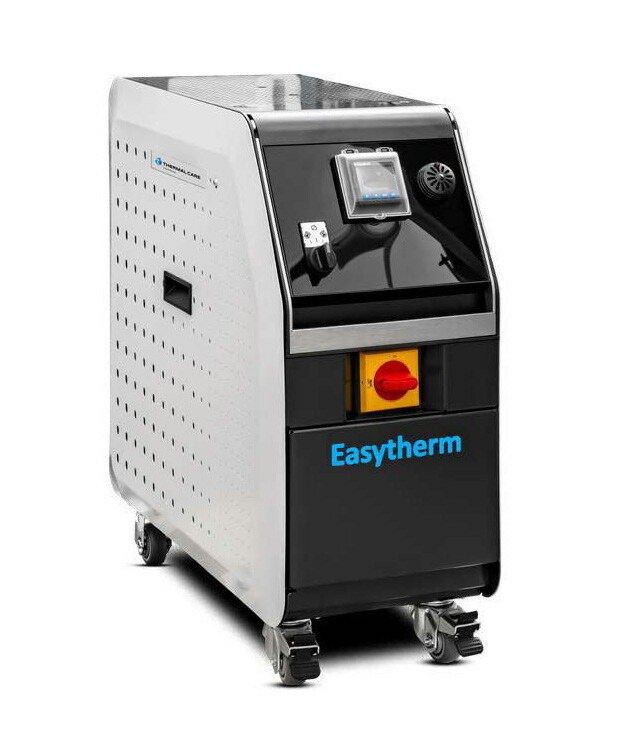

Easytherm EMP/EMP ID/ET PID
Up to 140°C
Easytherm is the new mould temperature control unit characterized by user- friendliness, flexibility and reliability, for injection and blow moulding and extrusion processes.
A new interior and exterior layout, redesigned ergonomic control, coupled with high-end components, characterise a versatile machine that guarantees reliability and long term performances.
Easytherm operates at temperatures up to 140°C. Maximum reliability is assured thanks to technologies such as magnetic driven pumps or Flow Through Heaters.
The large 4.3” TFT high contrast display is tilted to ensure easy reading. Navigation in the sub menus is managed via a convenient knob.
Easytherm is already set up for use in Industry 4.0 environments with a wide range of communication protocols, including OPC-UA platform and is Winfactory 4.0 ready.
-
Easy to use
-
Robust construction for industrial applications
-
Precise temperature control
-
Up to 140°C operating temperature
Benefits of the Easytherm EMP/EMP ID/ETP ID Temperature Controller Features
Easy programming and real-time system visibility.
Choose direct or indirect cooling based on needs.
Fast response and stable temperature maintenance.
Accurate and stable temperature control up to 140°C.
Redesigned internal layout with best-in-class components and a compact footprint.
Overview
- Precise and effective temperature control thanks to cutting edge thermal elements and advanced controller.
- High performance heating components ensure fast response and reliable temperature regulation.
- User friendly controls make setup and monitoring quick and easy.
- Premium components and redesigned internal layout ensure long term reliability and reduced downtime.
- Indirect cooling mode offers flexibility to match different moulding processes and production requirements.
Additional Features
- Ergonomic design with an integrated handle bar
- Four electrical feeding options: 380/3/60, 400/3/50, 440/3/60 and 460/3/60 (V, Ph, Hz)
- Flow Through Heater (FTH) avoids any risk of corrosion and failure of the heating elements and maximize heat transfer
- Pressurized water process fluid system
- One of the most smaller units on the market (all the high flow rate models event the HT version share the same compact chassis)
Available Options
- 2 or 4 ways manifold
- Additional filters
- Process water loading line separate from the cooling circuit and pressure switch to detect water flow
- Sludge remover filter
- Communication interface (Current Loop and Modbus RTU)
- OPC-UA Communication Interface; for ETP models only
Resources
Brochures
Specifications
Specification Tables
| Model | EMP 06 | EMP 12 |
|---|---|---|
| Maximum Temperature | 140°C | 140°C |
| Heating Power | 6 kW | 12 kW |
| Cooling Power (kW) / ΔT = 130°C; 15 I/min |
82 kW | 82 kW |
| Heat Exchanger | Plate | Direct Injection |
| Maximum Flow Rate - Pump P8 Maximum Flow Rate - Pump P9 Maximum Flow Rate - Pump P10 |
40 l/min 60 l/min 60 l/min |
40 l/min 60 l/min 60 l/min |
| Head - Pump P8 Head - Pump P9 Head - Pump P10 |
60 m 60 m 60 m |
60 m 60 m 60 m |
| Load Power - Pump P8 Load Power - Pump P9 Load Power - Pump P10 |
0.75 kW 0.75 kW 1.0 kW |
0.75 kW 0.75 kW 1.0 kW |
| Pump Type - Pump 8 Pump Type - Pump 9 Pump Type - Pump 10 |
Mechanical Sealing Mechanical Sealing Magnetic Drive |
Mechanical Sealing Mechanical Sealing Magnetic Drive |
| Dimensions L x W x H |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
| Model | EMP 06 ID | EMP 12 ID |
|---|---|---|
| Maximum Temperature | 90°C | 90°C |
| Heating Power | 6 kW | 12 kW |
| Cooling Power (kW) / ΔT = 70°C; 15 I/min |
80 kW | 80 kW |
| Heat Exchanger | Direct Injection | Direct Injection |
| Maximum Flow Rate - Pump P8 Maximum Flow Rate - Pump P9 Maximum Flow Rate - Pump P10 |
40 l/min 60 l/min 60 l/min |
40 l/min 60 l/min 60 l/min |
| Head - Pump P8 Head - Pump P9 Head - Pump P10 |
60 m 60 m 60 m |
60 m 60 m 60 m |
| Load Power - Pump P8 Load Power - Pump P9 Load Power - Pump P10 |
0.75 kW 0.75 kW 1.0 kW |
0.75 kW 0.75 kW 1.0 kW |
| Pump Type - Pump 8 Pump Type - Pump 9 Pump Type - Pump 10 |
Mechanical Sealing Mechanical Sealing Magnetic Drive |
Mechanical Sealing Mechanical Sealing Magnetic Drive |
| Dimensions L x W x H |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
| Model | ETP 06 ID | ETP 12 ID |
|---|---|---|
| Maximum Temperature | 90°C | 90°C |
| Heating Power | 6 kW | 12 kW |
| Cooling Power (kW) / ΔT = 70°C; 15 I/min |
80 kW | 80 kW |
| Heat Exchanger | Direct Injection | Direct Injection |
| Maximum Flow Rate - Pump P8 Maximum Flow Rate - Pump P9 Maximum Flow Rate - Pump P10 |
N / A N / A N / A |
N / A N / A N / A |
| Head - Pump P8 Head - Pump P9 Head - Pump P10 |
N / A N / A N / A |
N / A N / A N / A |
| Load Power - Pump P8 Load Power - Pump P9 Load Power - Pump P10 |
N / A N / A N / A |
N / A N / A N / A |
| Pump Type - Pump 8 Pump Type - Pump 9 Pump Type - Pump 10 |
N / A N / A N / A |
N / A N / A N / A |
| Dimensions L x W x H |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
