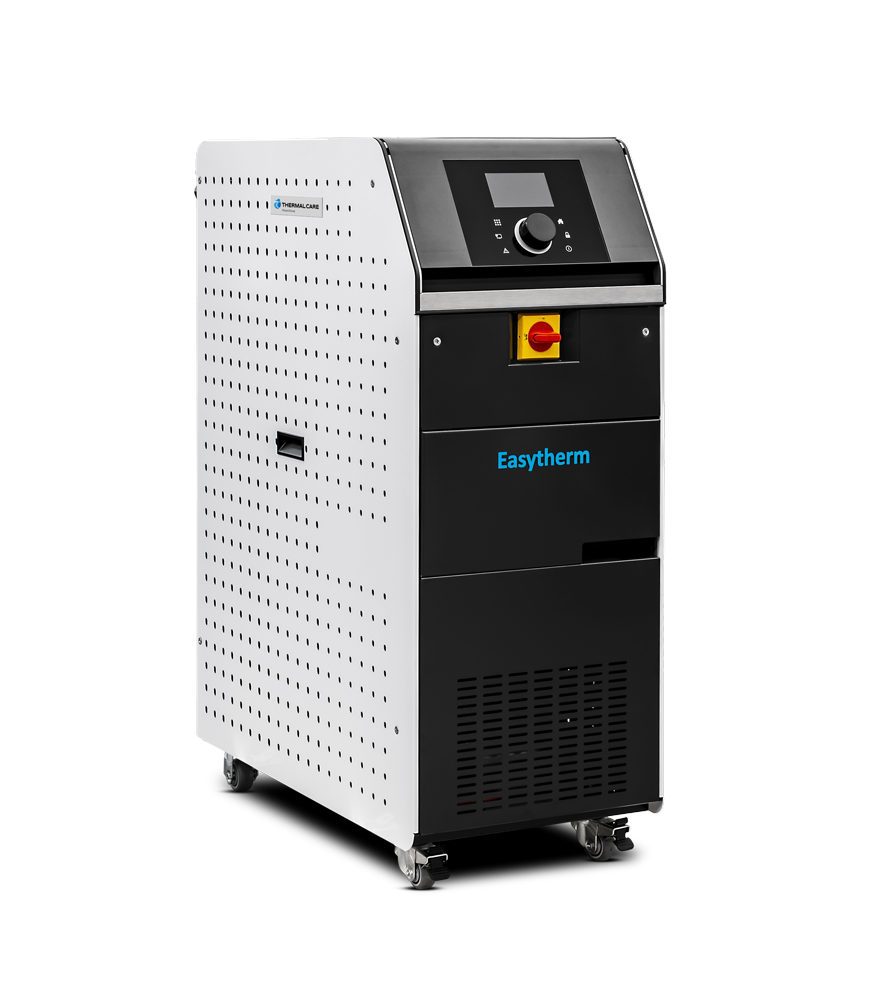

Easytherm ETO/ETO HT 112-136
Up to 250°C
The ETO mould temperature series uses diathermic oil to reach temperatures up to 250°C. These series are manufactured using components with the highest level of quality and reliability.
The machine can be configured with different heating and cooling power and with the process pump that provides the right combination of flow rate and pressure.
The most important informations are immediately available thanks to the high contrast coloured display; the led integrated in the central knob changes its colour to clearly show the machine status. The new control includes also a wide range of communication interface, including the OPC-UA.
-
Precise temperature control
-
Easy to operate
-
Robust construction for industrial environments
-
Up to 250°C operation using diathermic oil
Not available in: CN, HK, MN, KR, JP, VN, KH, TH, LA, MY, PH, ID, MM, FJ, MO
Benefits of the Easytherm EO Temperature Controller Features
Intuitive monitoring at a glance.
Reliable control up to 250°C.
Customize flow and thermal performance for each application
Safe, efficient process cooling without contamination risk.
Overview
- Suitable for a wide running range of heating power and oil flow rate
- Highest standard of quality and reliability
- High process temperatures without increasing of running pressure
Additional Features
- Three electrical feeding options: 380/3/60, 400/3/50, and 460/3/60 (V, Ph, Hz)
- Application to manage a mould temperature probe or a thermocouple
- Oil process fluid system
- Quick mould discharge
Available Options
- 2 or 4 ways manifold
- Additional filters
- Pressure transducer (flow rate calculation)
- Remote connection for enable and alarm
- Communication interface (Current Loop, Ethernet, RS485,
Profinet, Profibus, Device-net, Ethernet IP and Powerlink)
Resources
Brochures
Specifications
Specification Tables
| Model | ETO 112 | ETO 118 | ETO 124 | ETO 136 |
|---|---|---|---|---|
| Maximum Temperature | 160°C | 160°C | 160°C | 160°C |
| Heating Power | 12 kW | 18 kW | 24 kW | 36 kW |
| Cooling Power (kW) / ΔT = 140°C |
46 Coil or 125 Plates |
46 Coil or 125 Plates |
46 Coil or 125 Plates |
46 Coil or 125 Plates |
| Heat Exchanger | Coil or Plate | Coil or Plate | Coil or Plate | Coil or Plate |
| Maximum Flow Rate - Pump P8 Maximum Flow Rate - Pump P9 Maximum Flow Rate - Pump P12 Maximum Flow Rate - Pump P14 Maximum Flow Rate - Pump P15 |
40 l/min 60 l/min 100 l/min 200 l/min 300 l/min |
40 l/min 60 l/min 100 l/min 200 l/min 300 l/min |
40 l/min 60 l/min 100 l/min 200 l/min 300 l/min |
40 l/min 60 l/min 100 l/min 200 l/min 300 l/min |
| Pump Head - P8 Pump Head - P9 Pump Head - P12 Pump Head - P14 Pump Head - P15 |
60 m 60 m 60 m 37 m 58 m |
60 m 60 m 60 m 37 m 58 m |
60 m 60 m 60 m 37 m 58 m |
60 m 60 m 60 m 37 m 58 m |
| Pump Load Power - P8 Pump Load Power - P9 Pump Load Power - P12 Pump Load Power - P14 Pump Load Power - P15 |
0.75 kW 0.75 kW 1.5 kW 1.5 kW 4.0 kW |
0.75 kW 0.75 kW 1.5 kW 1.5 kW 4.0 kW |
0.75 kW 0.75 kW 1.5 kW 1.5 kW 4.0 kW |
0.75 kW 0.75 kW 1.5 kW 1.5 kW 4.0 kW |
| Dimensions L x W x H |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
| Model | ETO HT 112 | ETO HT 118 | ETO HT 124 | ETO HT 136 |
|---|---|---|---|---|
| Maximum Temperature | 250°C | 250°C | 250°C | 250°C |
| Heating Power | 12 kW | 18 kW | 24 kW | 36 kW |
| Cooling Power (kW) / ΔT = 140°C |
46 Coil | 46 Coil | 46 Coil | 46 Coil |
| Heat Exchanger | Coil | Coil | Coil | Coil |
| Maximum Flow Rate - Pump 9M Maximum Flow Rate - Pump 13M Maximum Flow Rate - Pump P16M |
60 l/min 150 l/min 200 l/min |
60 l/min 150 l/min 200 l/min |
60 l/min 150 l/min 200 l/min |
60 l/min 150 l/min 200 l/min |
| Head - Pump 9M Head - Pump 13M Head - Pump 16M |
60 m 50 m 65 m |
60 m 50 m 65 m |
60 m 50 m 65 m |
60 m 50 m 65 m |
| Load Power - Pump 9M Load Power - Pump 13M Load Power - Pump 16M |
1.0 kW 2.8 - 3.5 kW 4.0 - 4.5 kW |
1.0 kW 2.8 - 3.5 kW 4.0 - 4.5 kW |
1.0 kW 2.8 - 3.5 kW 4.0 - 4.5 kW |
1.0 kW 2.8 - 3.5 kW 4.0 - 4.5 kW |
| Reversible - Pump 9M Reversible - Pump 13M Reversible - Pump 16M |
Yes Yes Yes |
Yes Yes Yes |
Yes Yes Yes |
Yes Yes Yes |
| Dimensions L x W x H |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
