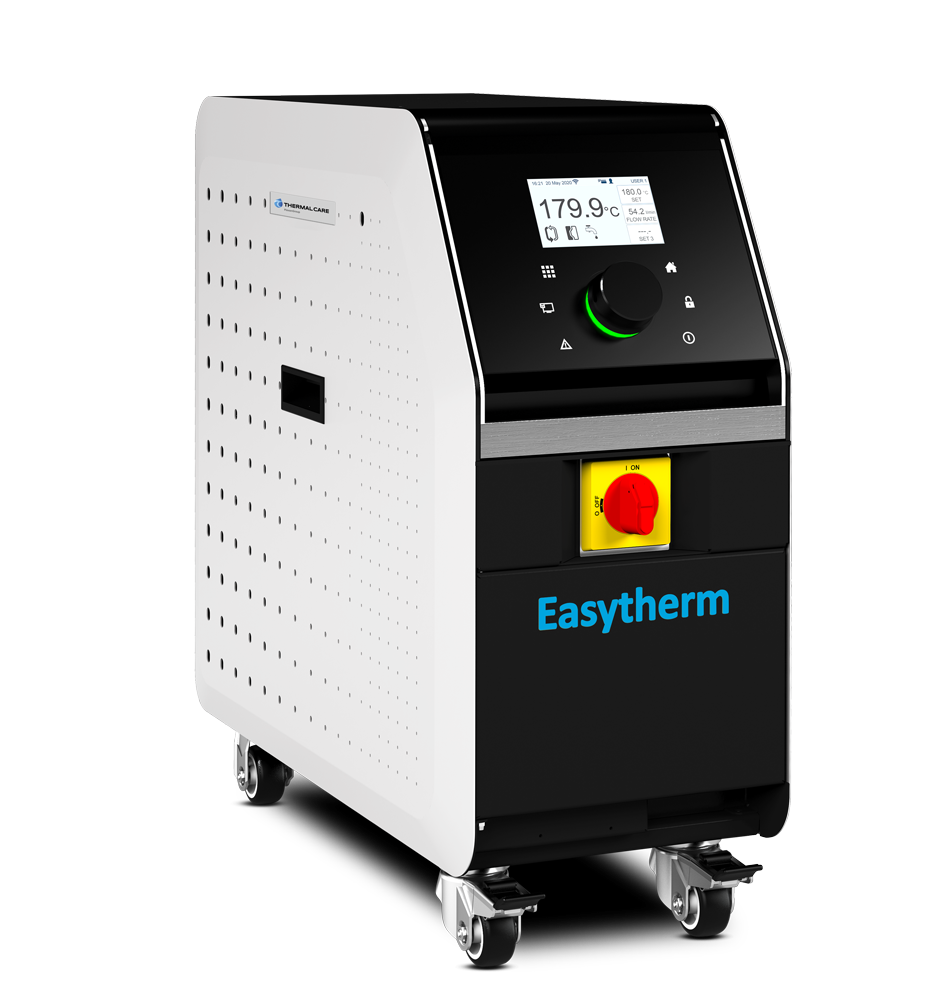

Easytherm EMO-ETO
Up to 250 °C
The ETO mould temperature series uses diathermic oil to reach temperatures up to 250°C. These series are manufactured using components with the highest level of quality and reliability.
The machine can be configured with different heating and cooling power and with the process pump that provides the right combination of flow rate and pressure.
The most important informations are immediately available thanks to the high contrast coloured display; the led integrated in the central knob changes its colour to clearly show the machine status. The new control includes also a wide range of communication interface, including the OPC-UA.
-
Precise temperature control
-
Easy to operate
-
Robust construction for industrial environments
-
Up to 250°C operation using diathermic oil
Benefits of the Easytherm EMO-ETO Temperature Controller Features
Easy programming and real-time system visibility.
Redesigned internal layout with best-in-class components and a compact footprint.
Faster heat up, tighter accuracy, improved reliability.
Overview
- Suitable for a wide running range of heating power and oil flow rate
- Highest standard of quality and reliability
- High process temperatures without increasing of running pressure
Additional Features
- Four electrical feeding options: 380/3/60, 400/3/50, 440/3/60, and 460/3/60 (V, Ph, Hz)
- Oil process fluid system
Available Options
- 2 or 4 ways manifold
- Additional water filter
- Acoustic alarm
- Reversible running mode
- Pressure switch to detect water flow
- Communication interface (Current Loop and Modbus RTU)
- OPC-UA Communication Interface; for ETO Models only
Resources
Brochures
Specifications
Specification Tables
| Model | EMO 06 | ETO 06 |
|---|---|---|
| Maximum Temperature | 150°C | 150°C |
| Heating Power | 6 kW | 6 kW |
| Cooling Power (kW) / ΔT = 70°C |
13 kW | 13 kW |
| Heat Exchanger | Coil | Coil |
| Maximum Flow Rate - Pump P6 Maximum Flow Rate - Pump P7 |
60 l/min 70 l/min |
60 l/min 70 l/min |
| Head - Pump P6 Head - Pump P7 |
35 m 60 m |
35 m 60 m |
| Load Power - Pump P6 Load Power - Pump P7 |
0.5 kW 1.0 kW |
0.5 kW 1.0 kW |
| Reversible | Optional | Optional |
| Dimensions L x W x H |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
