DigitempEVO
Temperature Controllers

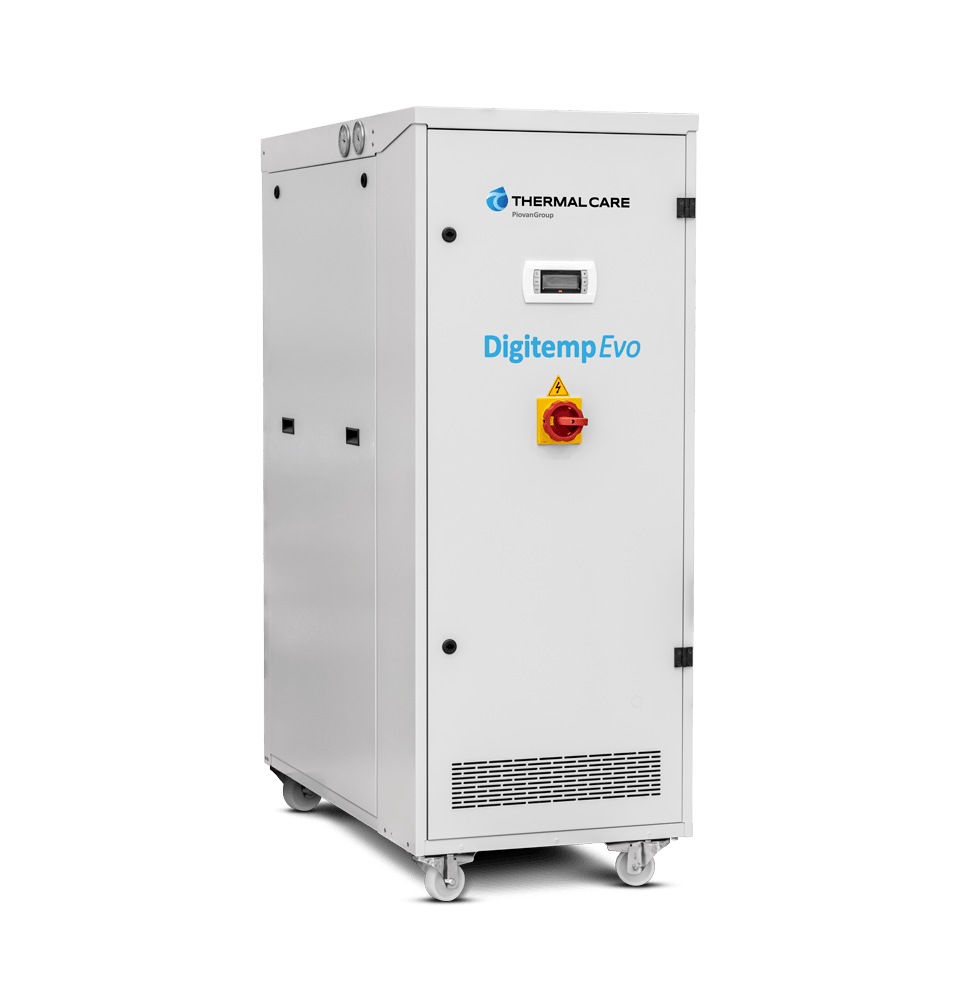

DigitempEvo is a thermochiller, that combines the functions of a temperature control unit and a water cooled chiller.The DigitempEvo has three running modes according to the boundary conditions:
1—cooling: the machine works as a water cooled chiller; the internal refrigerant circuit and high efficiency scroll compressor are activated to produce the required cooling power.
2—heating: the electrical heating elements are activated and the process water is heated up to 90°C so that the mould can reach the right working conditions.
3—free-cooling: if the running conditions are favourable, the cooling of the process water can be achieved with just a heat exchanger, between the process and condensing unit.
DigitempEvo guarantees the maxi-mum level of efficiency thanks to the modulating capacity of the digital scroll compressor, the free cooling function and the fine control of the cooling capacity realised with the electronic expansion valve.
DigitempEvo improves productivity, reducing cycle time and assuring mould temperature stability and consistency.
-
Green refrigerant
ODP+O R410A -
Integrated
Free Cooling -
Single or Double Circuit
-
Digital Scroll
Compressor
Benefits of the DigitempEvo Temperature Controller Features
For reduced running costs.
Due to the electronic expansion valve, digital scroll and intelligent PLC control (+/- 0.5 degrees).
Due to a high-efficiency heat exchanger with stainless steel brazed plate evaporator and condenser.
For significant energy savings; 10-100% modulation, resulting in an average of 35% energy savings.
Additional Benefits:
- Integral free-cooling
- Digital scroll compressor
- Single or double circuit with independent temperatures
- Braised plate evaporator and condenser
- Medium and high pressure pumps
Overview
- Improved productivity of the IMM by reducing cycle time and minimizing scraps rate
- High flexibility with a wide temperature range from 5 to 90°C and possibility to control two temperatures
- Maximum efficiency thanks to the scroll compressor and the free cooling function
Available Options
- Free-Cooling kit
- Heating kit
- Condensation control
- Serial interface board
- Phase sequence control
- PROFIBUS serial interface board
- Water filter 500 microns 1"
- Acoustic visual alarm
Resources
Brochures
Specifications
Specification Tables
| Model | DTE 22 | DTE 32 | DTE 43 | DTE 54 |
|---|---|---|---|---|
|
Compressor Absorbed Power1 |
4.74 kW |
6.84 kW |
8.31 kW |
11.24 kW |
|
Condenser Heat Load |
28.5 kW |
40.1 kW |
51.0 kW |
64.0 kW |
|
Condenser Water Flow |
21.5 GPM |
30.5 GPM |
38.7 GPM |
48.4 GPM |
|
Evaporator Water Flow |
18.1 GPM |
25.5 GPM |
32.7 GPM |
40.3 GPM |
|
Evaporator Pressure Drops |
6.8 PSI |
5.1 PSI |
6.3 PSI |
7.0 PSI |
|
Condenser Pressure Drops |
9.4 PSI |
5.5 PSI |
8.7 PSI |
13.3 PSI |
|
EER |
17.1 |
16.8 |
17.7 |
16.2 |
|
Dimensions L x W x H |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
1,143 x 598 x 1,560 mm |
|
Refrigerant Charge |
1.9 kg |
2.3 kg |
3.8 kg |
5.0 kg |
|
Oil Charge |
0.50 gal |
0.61 gal |
0.99 gal |
1.33 gal |
1Data is referred to In/Out evaporator water temperature 59/50°F, In/Out condenser water temperature 86/95°F. Data AT 460v/3Ph/60Hz.
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
