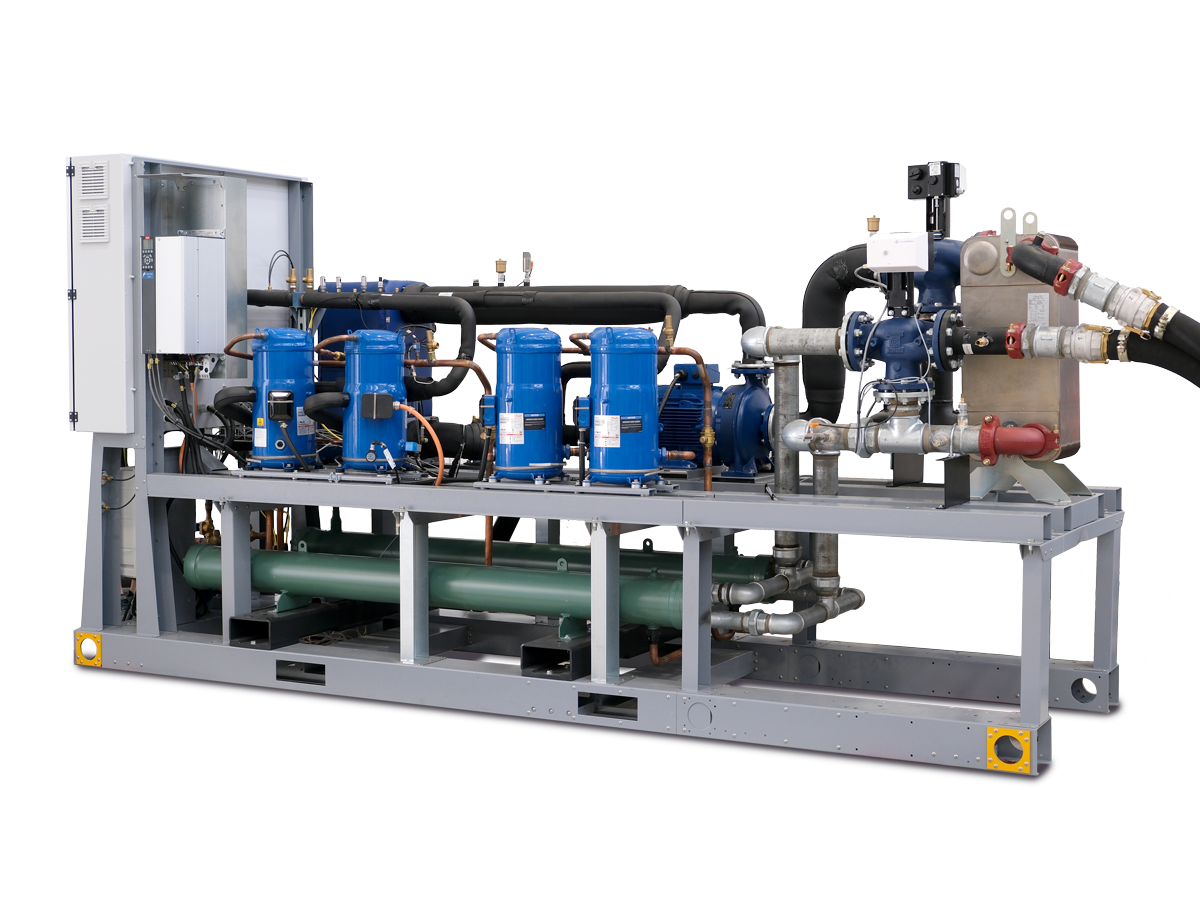

PETChiller+ CW1211EI-5211EI 170 to 320 kW
Cooling capacity from 170 kW to 320 kW
PETChiller is a high-performance mold cooling unit engineered for PET preform production and the packaging industry. Its compact, integrated design uses scroll compressors with modulating technology for precise water temperature control, ensuring superior preform quality.
With over 140 units installed worldwide since 2006, PETChiller reliably optimizes production, handles high water flow rates, seamlessly fits into molding cycles, and cuts cycle times by up to 30% for maximum productivity.
Inverter-driven pumps and compressors maximize energy efficiency and cooling performance, reducing operating costs. Constant water pressure and flow ensure uniform cooling. Industry 4.0 compatibility via Winflo software enables remote monitoring and advanced control. Designed for sustainability, PETChiller supports eco-friendly refrigerants and optional Free Cooling kits for reduced environmental impact and energy savings.
-
Green Refrigerant
ODP = 0 -
Digital Scroll
Compressor
-
Integrated Free-Cooling
-
Indoor Installation
Benefits of the PETChiller+ Industrial Chiller Features
Offers precise temperature control and extensive diagnostics.
Guarantees maximum energy efficiency and maximum stability across the process which includes an integrated inverter.
The all-in-one platform allows for space-saving operation.
The integrated pump delivers reliable fluid movement, supporting precise temperature regulation across a wide capacity range.
Overview
- Inverter Controlled Screw Compressor : Stable process conditions and optimised energy utilisation.
- Inverter Controlled Process Water Pump: The quantity of water to supply to the utilities is automatically determined based on the
- temperature differential in/out.
- Braised plate stainless steel heat exchangers
- Electronic Expansion Valve: Modulation, control and regular gas expansion are key for a process that on top of being efficient must also
- be very accurate.
- High-performance mould cooling unit for packaging industry and PET preforms
- Compatible with R410A and R454B (low GWP option)
- Cooling capacity from 170 to 320 [kW]
- Scroll compressors with integrated inverter
- Shell-and-tube evaporator
- High-flow pumping system with inverter control
- Free cooling available
- Winfactory and Winflo 4.0 ready
- Auto-adaptive functioning
- Highest energy efficiency EER values
- Stable process conditions
Resources
Brochures
Specifications
Specification Tables
| Modello | CW1211 EI | CW2011 EI | CW2611 EI | CW3011 EI |
|---|---|---|---|---|
|
Capacità frigorifera1 Capacità frigorifera2 |
85 kW 109 kW |
135 kW 187 kW |
179 kW 246 kW |
205 kW 281 kW |
|
Pressione massima acqua evaporatore |
10 bar |
10 bar |
10 bar |
10 bar |
|
Portata minima evaporatore |
40 m3/h |
40 m3/h |
40 m3/h |
40 m3/h |
|
Portata massima evaporatore |
100 m3/h |
100 m3/h |
100 m3/h |
95 m3/h |
|
Pressione massima acqua condensatore |
30 bar |
30 bar |
30 bar |
35 bar |
|
Portata minima condensatore |
100 m3/h |
100 m3/h |
100 m3/h |
100 m3/h |
|
Portata massima condensatore |
100 m3/h |
100 m3/h |
100 m3/h |
100 m3/h |
|
Pompa acqua pressione minima |
20 – 45 m3/h 5,38 – 6,37 bar 11 kW |
20 – 45 m3/h 5,38 – 6,37 bar 11 kW |
N/A |
N/A |
|
Pompa acqua bassa pressione |
25 – 51 m3/h 6,66 – 7,7 bar 15 kW |
25 – 51 m3/h 6,66 – 7,7 bar 15 kW |
25,0 – 51,0 m3/h 6,66 – 7,70 bar 15 kW |
25 – 51 m3/h 6,66 – 7,7 bar 15 kW |
|
Pompa acqua pressione media |
27 – 90 m3/h 4,67 – 6,78 bar 18,5 kW |
27 – 90 m3/h 4,67 – 6,78 bar 18,5 kW |
27 – 90 m3/h 4,67 – 6,78 bar 18,5 kW |
27,0 – 90 m3/h 4,67 – 6,78 bar 18,5 kW |
|
Pompa acqua alta pressione |
38 – 90 m3/h 5,83 – 7,55 bar 22 kW |
38 – 90 m3/h 5,83 – 7,55 bar 22 kW |
38 – 90 m3/h 5,83 – 7,55 bar 22 kW |
38 – 90 m3/h 5,83 – 7,55 bar 22 kW |
|
Pompa acqua pressione massima |
N/A |
N/A |
42 – 176 m3/h 4,35 – 6,97 bar 30 kW |
42 – 176 m3/h 4,35 – 6,97 bar 30 kW |
|
Attacchi idraulici ingresso/uscita evaporatore |
DN 100 |
DN 100 |
DN 100 |
DN 100 |
|
Attacchi idraulici ingresso/uscita condensatore |
DN 125 |
DN 125 |
DN 125 |
DN 125 |
|
Dimensioni L x P x H |
2.940 x 1.160 x 2.100 mm |
2.940 x 1.160 x 2.100 mm |
2.940 x 1.160 x 2.100 mm |
2.940 x 1.260 x 2.100 mm |
|
Peso di spedizione |
2.000 kg |
2.400 kg |
2.800 kg |
2.950 kg |
| Modello | CW3311 EI | CW3811 EI | CW4211 EI | CW5211 EI |
|---|---|---|---|---|
|
Capacità frigorifera1 Capacità frigorifera2 |
221 kW 300 kW |
254 kW 347 kW |
276 kW 378 kW |
321 kW 440 kW |
|
Pressione massima acqua evaporatore |
10 bar |
10 bar |
10 bar |
10 bar |
|
Portata minima evaporatore |
65 m3/h |
65 m3/h |
70 m3/h |
70 m3/h |
|
Portata massima evaporatore |
110 m3/h |
110 m3/h |
135 m3/h |
135 m3/h |
|
Pressione massima acqua condensatore |
10 bar |
10 bar |
10 bar |
10 bar |
|
Portata minima condensatore |
50 m3/h |
50 m3/h |
70 m3/h |
70 m3/h |
|
Portata massima condensatore |
100 m3/h |
100 m3/h |
150 m3/h |
150 m3/h |
|
Pompa acqua pressione minima |
N/A |
N/A |
N/A |
N/A |
|
Pompa acqua bassa pressione |
25 – 51 m3/h 7,7 – 6,66 bar 15 kW |
N/A |
27 – 90 m3/h 6,78 – 4,67 bar 18,5 kW |
N/A |
|
Pompa acqua pressione media |
27 – 90 m3/h 6,78 – 4,67 bar 18,5 kW |
27 – 90 m3/h 6,78 – 4,67 bar 18,5 kW |
38 – 90 m3/h 7,55 – 5,83 bar 22,0 kW |
38 – 90 m3/h 7,55 – 5,83 bar 22,0 kW |
|
Pompa acqua alta pressione |
38 – 90 m3/h 7,55 – 5,83 bar 22 kW |
38 – 90 m3/h 7,55 – 5,83 bar 22 kW |
42 – 176 m3/h 6,97 – 4,35 bar 30 kW |
42 – 176 m3/h 6,97 – 4,35 bar 30 kW |
|
Pompa acqua pressione massima |
42 – 176 m3/h 6,97 – 4,35 bar 30 kW |
42 – 176 m3/h 6,97 – 4,35 bar 30 kW |
66 – 208 m3/h 6,57 – 4,92 bar 37 kW |
66 – 208 m3/h 6,57 – 4,92 bar 37 kW |
|
Attacchi idraulici ingresso/uscita evaporatore |
DN 100 |
DN 100 |
DN 150 |
DN 150 |
|
Attacchi idraulici ingresso/uscita condensatore |
DN 125 |
DN 125 |
DN 125 |
DN 125 |
|
Dimensioni L x P x H |
2.940 x 1.260 x 2.100 mm |
3.200 x 1.260 x 2.100 mm |
3.950 x 1.660 x 2.200 mm |
4.291 x 1.657 x 2.100 mm |
|
Peso di spedizione |
3.200 kg |
3.550 kg |
3.600 kg |
4.200 kg |
1Temperatura acqua in ingresso/uscita al setpoint 12/7°C (acqua 100%), temperatura acqua in ingresso/uscita al condensatore 30/35°C.
2Temperatura acqua in ingresso/uscita al setpoint 20/15°C (acqua 100%), temperatura acqua in ingresso/uscita al condensatore 30/25°C.
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
