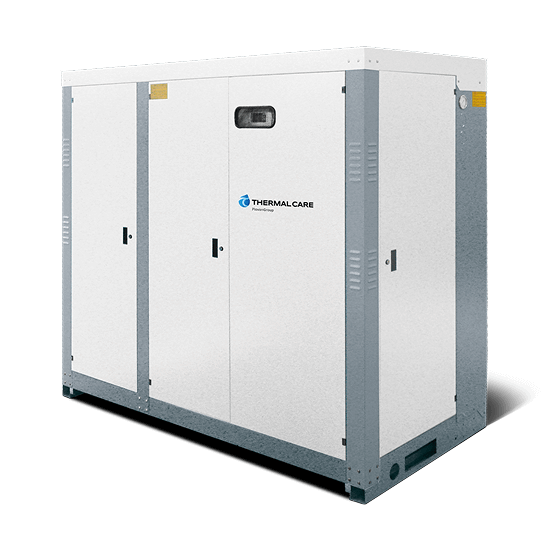

CW 2442-3942 290 to 460 kW
Cooling capacity: 290 kW to 460 kW
4 Scroll Compressors
The CW Series CW 2442-3942 chillers provide low temperature water independent from any ambient condition. The range, designed for application in all the industrial sectors, assures maximum flexibility and energy efficient functioning.
-
Green Refrigerant
ODP = 0 -
Scroll Compressors
-
Indoor Installation
Benefits of the CW Series CW 2442-3942 Industrial Chiller Features
Built for long-term operation with minimal maintenance and a 1-year warranty.
Real-time temperature monitoring, alarms, and built-in protection for safe operation.
Maximizes heat exchange in a compact, durable design for consistent performance.
High-capacity, quiet, and energy-efficient cooling for demanding industrial processes.
Overview
- Ambient air temperatures from 17°C to 40°C, suitable for indoor installations.
- Four scroll compressors deliver quiet, energy-efficient
performance with reduced vibration and long-term reliability. - Stainless-steel brazed plate evaporator provides high-efficiency heat exchange in a compact, durable design
for consistent chilled-water output. - Environmentally responsible R407C rfrigerant offers srong performance while reducing energy consumption and environmental impact.
Available Options
- Internal water circulation pump ensures optimized flow and simplifies installation without the need for external pumping equipment.
Specification Tables
| Model | CW 2442 | CW 3142 | CW 3942 |
|---|---|---|---|
| Cooling Capacity1 | 290 kW | 366 kW | 460 kW |
| Required Water Flow on Condenser | 49.88 m3/h | 62.9 m3/h | 79.1 kW |
| Absorbed Power2 | 59.1 kW | 73.2 kW | 86.8 kW |
| EER3 | 4.9 kW | 5 kW | 5.3 kW |
| Water Pump Low Pressure | 24 - 66 m3/h 2.25 - 3.25 bar 5.5 kW |
36 - 120m3/h 1.5 - 2.5 bar 7.5 kW |
36 - 120 m3/h 1.5 - 2.65 bar 7.5 kW |
| Installed Power with Low Pressure Pump | 107.5 kW | 129.4 kW | 155 kW |
| Water Pump Medium Pressure | 24 - 66 m3/h 3.3 - 4.8 bar 9.2 kW |
24 - 72 m3/h 3.7 - 5.45 bar 11 kW |
48 - 144 m3/h 2.6 - 3.8 bar 15 kW |
| Installed Power with Medium Pressure Pump | 112 kW | 136.7 kW | 162.8 kW |
| Water Pump High Pressure | 24 - 66 m3/h 4.7 - 6.9 bar 15 kW |
6 - 36 m3/h 4.5 - 5.75 bar 18.5 kW |
48 - 132 m3/h 4.6 - 5.95 bar 22 kW |
| Installed Power with High Pressure Pump | 118.3 kW | 144.2 kW | 189.8 kW |
| Water Connections Process and Condensing In/Out (Gruvlock) |
4" | 4" | 4" |
| Pump Weight | 1,500 kg | 1,610 kg | 1,730 kg |
| Dimensions L x W x H | 2,220 x 1,330 x 1,930 mm | 2,220 x 1,330 x 1930 mm | 2,220 x 1,330 x 1,930 mm |
1In/Out evaporator water temperature 20/15°C (100% water), condensed water temperature 30/35°C.
2Temperature range is 15/30°C.
3EER = Cooling capacity [kW] / (Compressors [kW]), 15/30°C.
The data is referred to the following conditions: R407C gas, 400/3/50Hz power supply, installed at sea level and working in proper conditions according to Thermal Care's instruction manual.
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
