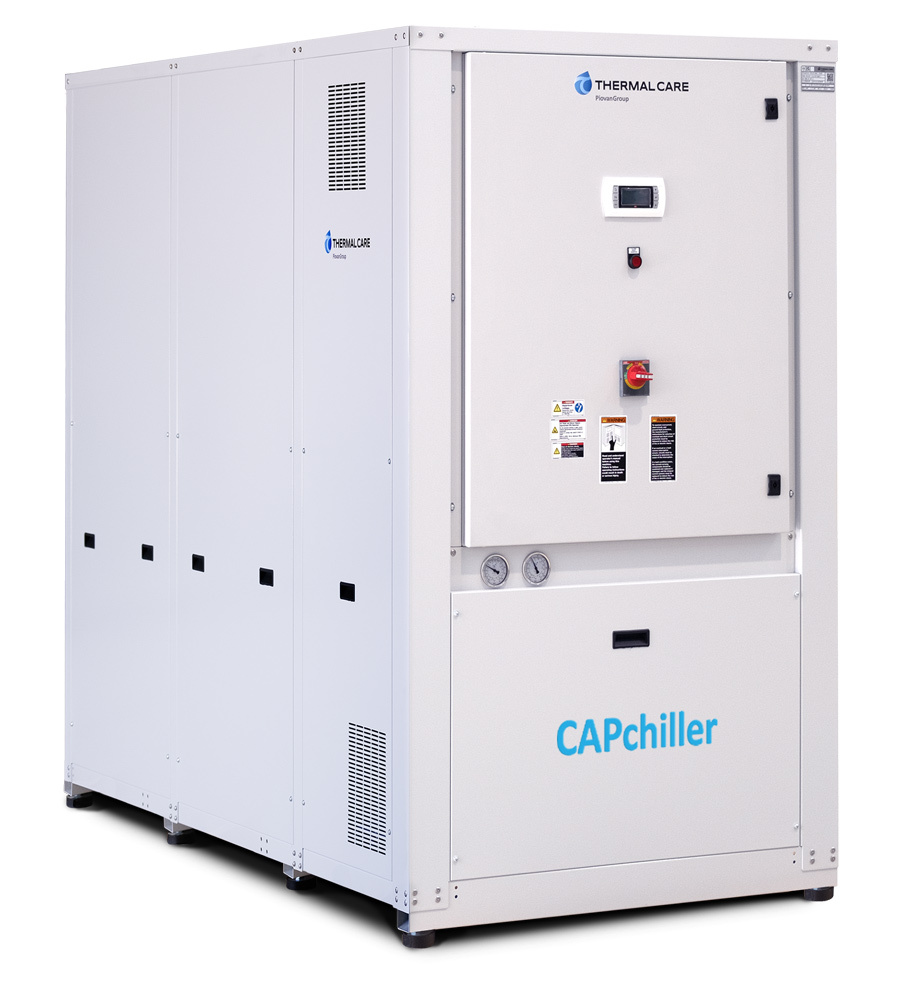

CAPchiller Series CCW 09-50 9 to 50 kW
Central Chillers 9 to 50 kW
CAPchiller has been designed based on the performance requirements of machines producing caps and medical products and all applications requiring very high temperature accuracy, high water flow rates in relation to cooling capacity and high pressures.
Typically, this performance is not met by products with standard components unless they include very large tanks and external process pumps.
The CAPchiller designed by Thermal Care, on the other hand, is a plug-and-play solution: it is equipped with modulating compressors that allow the cooling capacity to be adapted to the thermal load required by the user, and a booster process pump with inverter that follows the application requirements in terms of pressure and water flow.
Thanks also to the very compact double circuit, process stability is ensured even at partial loads. Designed for cooling capacities from 9 kW to 50 kW.
-
Variable speed drive
-
Stable performance under load
-
Automated adjustments
-
Compact design
Benefits of the CAPchiller Industrial Chiller Features
Dynamically modulates cooling output to match thermal load, optimizing energy use and reducing mechanical stress.
System continuously self-tunes (compressor + pump + heat-exchange) for stable, efficient operation even under varying load conditions.
Precise control of water temperature (±0.5 °C), pressure, and flow ensures stable process conditions and high product quality.
High-efficiency, brazed-plate heat-exchange delivers rapid, uniform cooling in a small footprint; ideal where space is limited, but performance is critical.
Fully integrated, factory-built chiller package; minimal external components means fast installation and reduced complexity.
Overview
- High precision of key parameters (water temperature, pressure, flow rate)
- Plug & Play application
- Autoadaptive
Available Options
- Free-Cooling kit
- Heating kit
- Condensation control
- Serial interface board
- Phase sequence control
- PROFIBUS serial interface board
- Water filter 500 microns 1"
- Acoustic visual alarm
Specification Tables
| Model | CCW09 | CCW16 | CCW22 | CCW38 | CCW50 |
|---|---|---|---|---|---|
|
Cooling Capacity |
9 kW |
16 kW |
22 kW |
38 kW |
50 kW |
|
Flow Pump Y |
4 m3h |
7 m3h |
9 m3h |
16 m3h |
22 m3h |
|
Flow Pump Z |
7 m3h |
11 m3h |
16 m3h |
27 m3h |
26 m3h |
|
Flow Pump W |
12 m3h |
18 m3h |
24 m3h |
41 m3h |
54 m3h |
|
Dimensions L x W x H |
2,052 x 905 x 1,862 mm |
2,052 x 905 x 1,862 mm |
2,052 x 905 x 1,862 mm |
2,052 x 905 x 1,862 mm |
2,052 x 905 x 1,862 mm |
