Click and rotate the RQT seriesRQT Mold Temperature Control Units
Available in 3 models; designed for a better level of control and data.
Accurate, dependable and easy-to-use
When you need a compact water temperature control unit for your application, you can count on Thermal Care. We understand how to meet your temperature control equipment needs.
Aquatherm RQT Series temperature controllers provide the best available components such as cast pump volute/heater tube/mixing assemblies, high flow pumps with leak-resistant silicon carbide seals and rugged Incoloy sheathed heaters for years of maintenance free operation. Each control system comes with a large, user-friendly operator interface that provides a wide array of operational and diagnostic information.
-
Precise and effective
-
Easy to use
-
Best in class components and technologies
Benefits of the RQT Advanced Series Temperature Controller Features
Incoloy sheathed heater elements for long life and high performance. Corrosion resistant and superior quality. Available in 9, 12, 18, 24, 36 and 48 kW capacities.
Easy to use LCD screen with adjustable parameters offers exact temperature control.
Sizes are 3/4 to 10 hp. Silicon carbide pump seals are standard.
Integral flush system and turbulence ribs inside the seal chamber help extend the life and efficiency of these high-quality pump seals.
Overview
- From 3/4 to 10 HP, 0 to 48 kW
- High flow pumps
- Leak-resistant, silicon carbide severe-duty pump seal
- Long-life, low-watt density Incoloy heaters resist corrosion better than copper or stainless steel
- Heavy-duty cast-iron pumps, heater tubes, and mixing tubes with O-ring seals reduce threaded fittings that can cause internal pressure losses and are prone to leaks
- Built-in sediment trap and pump seal flush line extends life of pump seal
- 24 VDC control circuit power
- Tilted front panel angled for optimal viewing
- Intelligent vent control - at start-up the automatic vent sequence deactivates when the mold circuit is above 120°F (49°C) to avoid cooling of the mold after temporary power interruptions
- Adjustable deviation alarm time delays
- Supply and return temperature display
- Solid top protects motor from dirt or fluid contamination
- Four swivel casters for easy movement
- Lifetime pump/heater casting warranty
- Lifetime pump seal warranty
- 3 year parts, 3 year labor warranty
Additional Features
- PLC controller
- Modulating cooling valve responds quickly and precisely to sudden changes in process
- 0-10vDC process temperature restransmit
- Seal saver automatically cools process water down to 100°F (38°C) when unit shuts off to extend life of seal and for operator safety
- Pump running hours display
- Adaptive maximum setpoint
- Digital process pressure
- Adaptive pressure relief
- Digital flow meter
- System statistics
- Trending data
- Modbus RTU communication
Available Options
Aquatherm RQT Advanced Series
- Rotary non-fused disconnect switch
- Alarm strobe and relay contact
- Electrical phase error
- Mold purge
- C-UL508A
- Two-zone units
- Closed circuit brazed plate heat exchanger
- Solid state relay heater controls
- Remote temperature probe
- 300°F (149°C) maximum operating range
- Process check valve
- Certified and calibrated RTD
- Nonferrous corrosion resistance package
- Stacking rack
- Ethernet for Modbus TCP communication
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
Resources
Brochures
Specifications
Controller

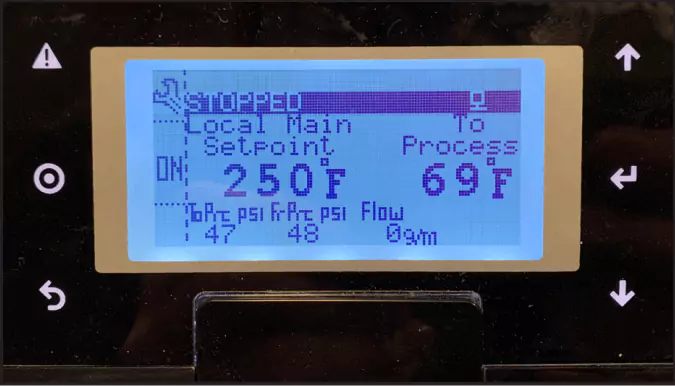

Aquatherm RQT Advanced series temperature controllers come with a PLC control and easy to use LCD screen with adjustable parameters for precise temperature control.

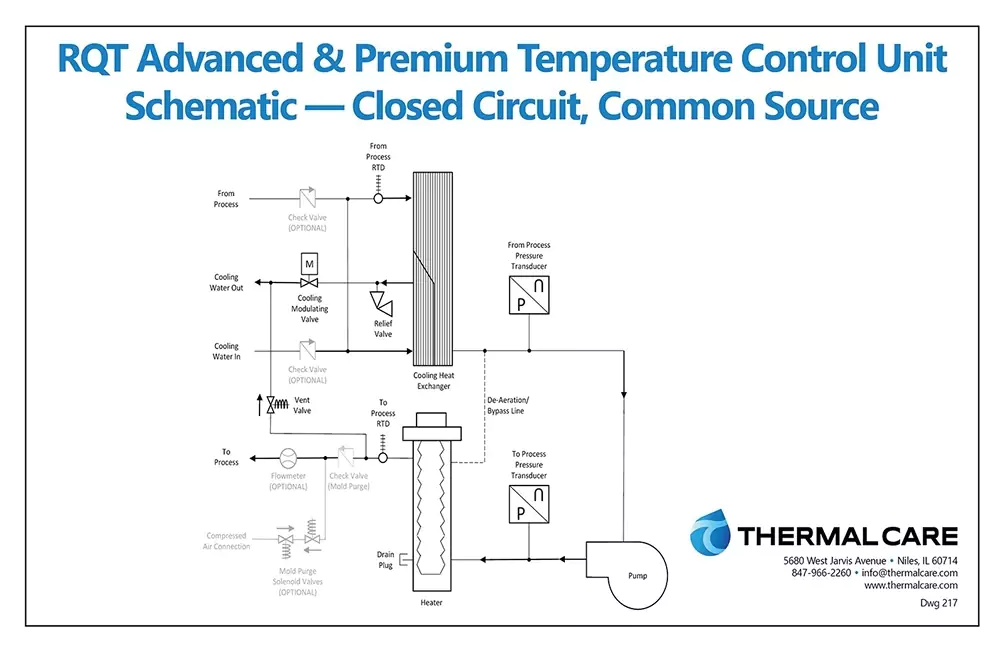

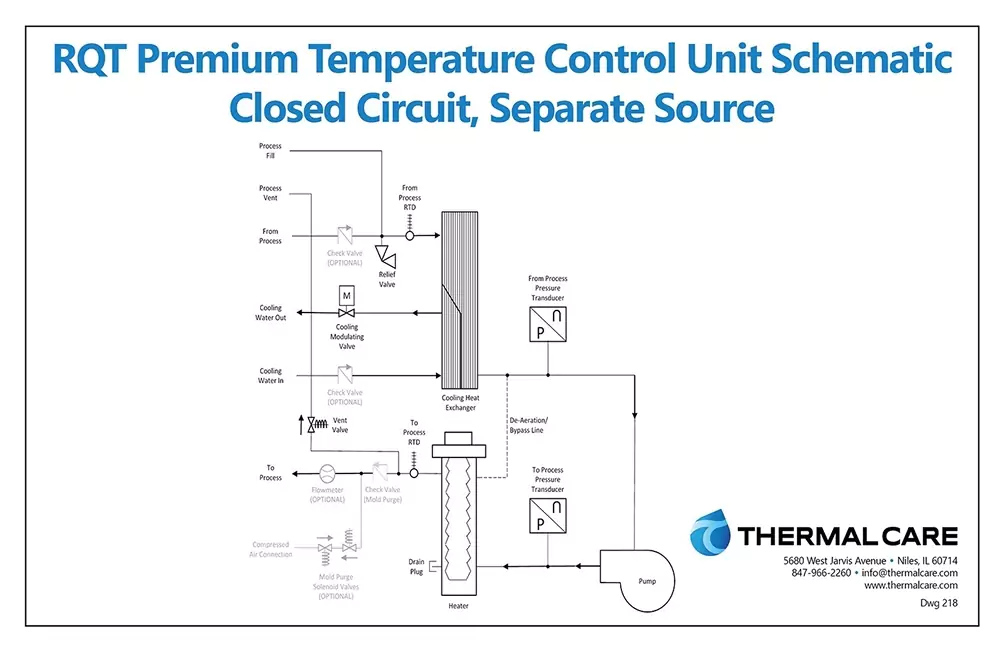

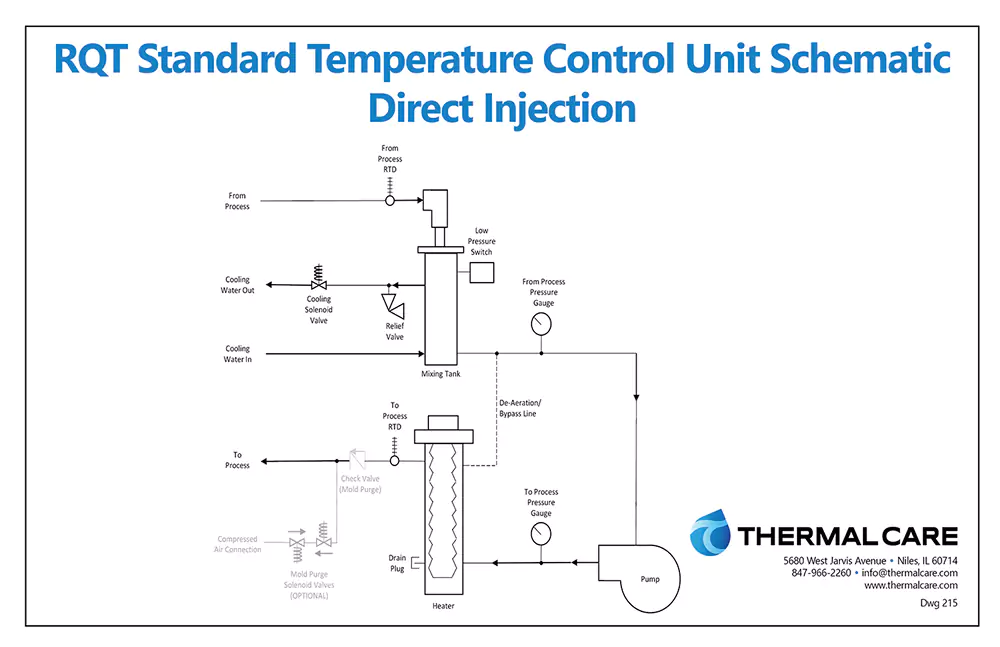

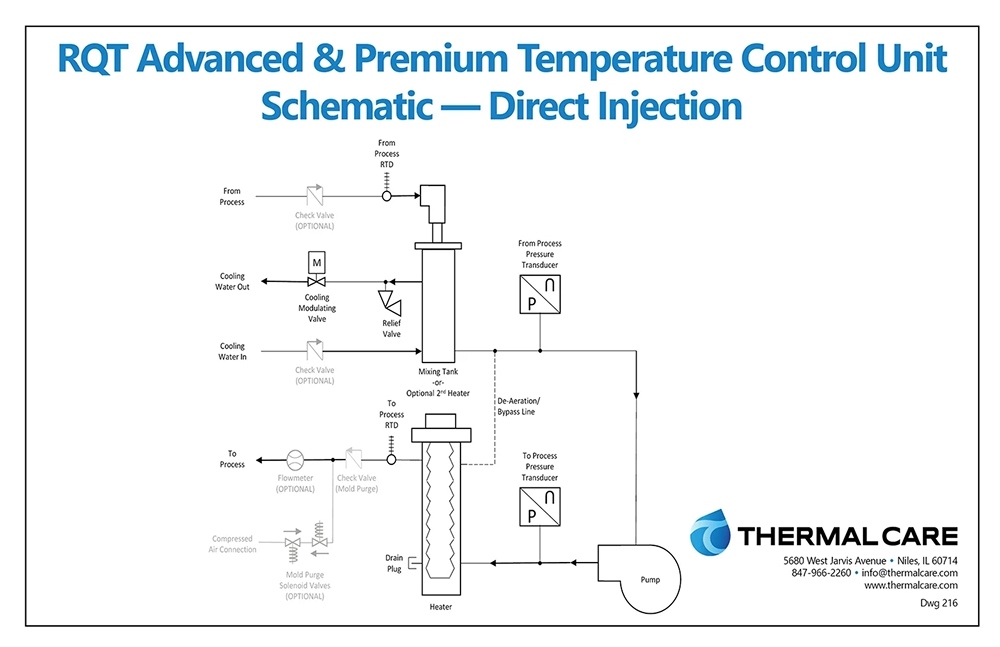

RQT Schematics
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
