Click and rotate the ROH Series Hot Oil UnitHot Oil Temperature Controllers
Oiltherm ROH Series hot oil temperature control units are designed to work with a wide range of high temperature applications in the 125°F to 575°F (52°C to 302°C) range. The Oiltherm assures high velocity oil flow across heater elements for optimum heat transfer and fluid life. The oil is preheated to reduce viscosity before allowing the pump to run. A PLC controller allows customized settings for daily start/stop times and a temperature deviations alarm and a password lockout protects temperature set point.
-
Precise and effective
-
Easy to use
-
Best in class components and technologies
Benefits of the ROH Series Temperature Controller Features
Up to 96kW heaters, with up to 50 GPM flow.
Long useful life under severe conditions.
Perfect for rapid cycling and provides long heater contactor life under extreme conditions.
Eliminate maintenance and wear common with mechanical seals, for improved reliability and performance.
Overview
- 12 kW to 96 kW
- Magnetic driven pump without wear-able mechanical seals
- 3.5" touchscreen controller
- Up to 8 ramp programming "recipes" with up to 8 steps each for heating and cooling scheduling
- Supports various interfaces, including TTY, Ethernet IP, and Profibus
- Automatic oil preheat to 100°F (38°C)
- Low watt density stainless steel heater elements provide long life and built-in standby
- Heat shield and control cabinet fan cooling protects hot oil temperature control systems and pumps
- Convenient oil fill location allows oil to be added without removing cabinet
- Oil level safety prevents operation under low oil conditions
- Stainless steel reservoirs
- Stainless steel heat exchanger connections for corrosion free operation
- High temperature safety at 660°F (349°C)
- Dual reservoir system includes operating and expansion reservoirs
- Complete insulation of oil circuit and operating reservoir maintains temperature and saves energy
- Premium quality solenoid valve assures precise temperatures
- Easy access cabinet with removable top/side panel
- Four swivel casters make unit easy to move
Available Options
- Vacuum operation for draining mold at shutdown
- External temperature sensor
- 5 or 55 gallon drum of oil
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
Resources
Brochures
Specifications
Controller

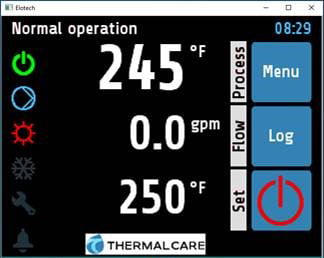

Oiltherm ROH Series temperature control units includes a 3.5" touchscreen and PLC controls.
