Click and rotate the RMC PremiumRMC Temperature Controllers
Available in 2 models; designed for a better level of control and data.

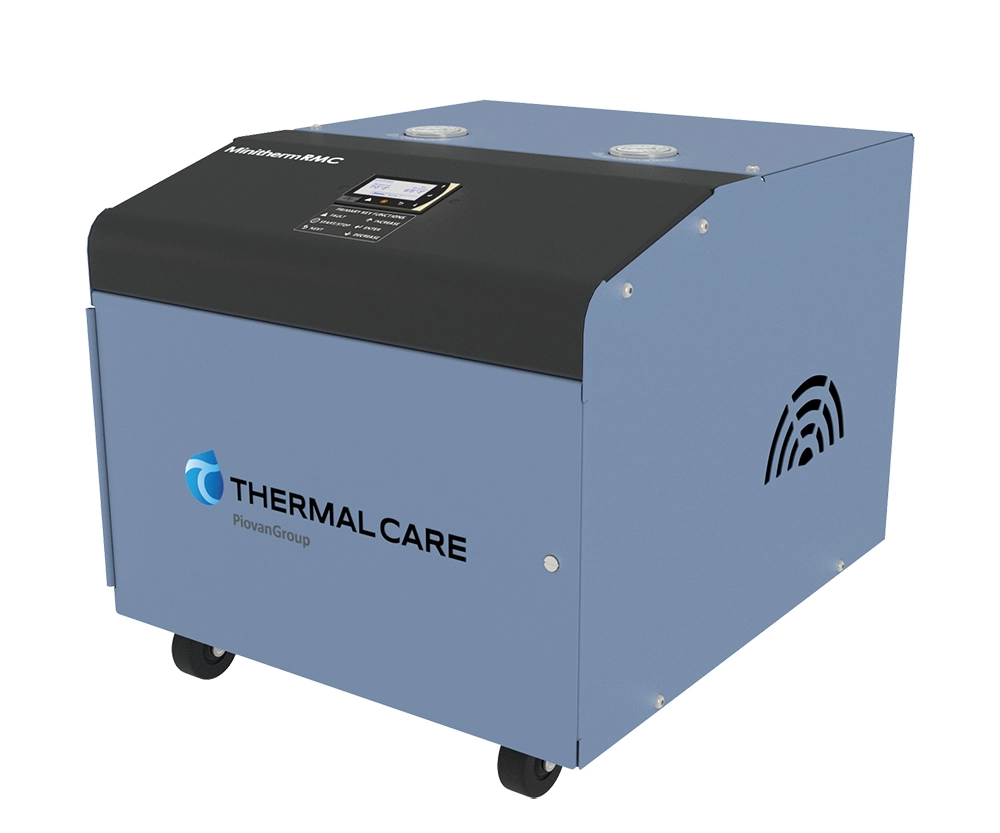

The Mini-Aquatherm is similar to the Aquatherm but almost half the size.
Mini-Aquatherm RMC Series mold temperature controllers provide the best available components such as cast pump volute/heater tube/mixing assemblies, high flow pumps with leak-resistant silicon carbide seals and rugged Incoloy sheathed heaters for years of maintenance free operation. Each temperature control system comes with a large, user-friendly operator interface that provides a wide array of operational and diagnostic information.
-
Precise and effective
-
Easy to use
-
Best in class components and technologies
Benefits of the RMC Series Temperature Controller Features
Two control options available - both are easy to use and match the operation of the familiar RQT Series controls.
42% smaller, and 22% shorter than the RQT series. At under 15 inches tall, it fits easily in spaces other TCUs will not.
40°-250°F process heating and cooling, with 1/3 hp or 1/2 hp pumps and 3 kW or 6 kW heaters.
Provide the best combination of performance and longevity and are corrosion resistant.
RMC Family
Overview
- 1/3 & 1/2 HP (.25 & .37 kW)
- 3 kW and 6 kW heat range
- High flow pumps
- Leak-resistant, silicon carbide severe-duty pump seal
- Long-life, low-watt density Incoloy heaters resist corrosion better than copper or stainless steel
- Heavy-duty cast-iron pumps, heater tubes, and mixing tubes with O-ring seals reduce threaded fittings that can cause internal pressure losses and are prone to leaks
- 24 VDC control circuit power
- Tilted front panel angled for optimal viewing
- Intelligent vent control - at start-up the automatic vent sequence deactivates when the mold circuit is above 120°F 49°C) to avoid cooling of the mold after temporary power interruptions
- Adjustable deviation alarm time delays
- Supply and return temperature display
- Solid top protects motor from dirt or fluid contamination
- Four swivel casters for easy movement
- Lifetime pump/heater casting warranty
- Lifetime pump seal warranty
- 3 year parts, 3 years labor
Additional Features
- Touch screen HMI with PLC
- Digital process pressure
- Digital flow meter
- Data logs & charting
- Recipes
- Pressure transducers
- Solid state relay heater controls
- 4-20mA or 0-10vDC process temperature retransmit
- Seal saver automatically cools process water down to 100°F when unit shuts off to extend life of seal and for operator safety
- Pump running hours display
- Alarm horn and silence switch
- Electrical phase error
- Adaptive maximum setpoint
- Adaptive pressure relief
- Password protection
- System statistics
- Trending data
- Modbus TCP/Ethernet & OPC/UA, SPI, and RS-485 communications
- Alternate setpoint swap
Available Options
Mini-Aquatherm RMC Premium Series
- Rotary non-fused disconnect switch
- C-UL508 industrial control panel
- Remote temperature probe
- 250°F (121°) maximum operating temperature
- Electrical phase error
- SPI communications
- High performance cooling solenoid valve
RMC Standard
Additional Features
- PLC controller
- Top facing pressure gauges
- Pump and heater running hours display
- Temperature deviation warnings and alarms
Available Options
Mini-Aquatherm RMC Standard Features
- Mold purge
- High performance solenoid valve
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
Resources
Brochures
Specifications
Controller
Minitherm RMC series mold temperature controllers come in two PLC control options.
