Click and rotate the NVQ series chiller5 to 30 Ton Chillers with Variable Speed Scroll Compressors
Portable & Packaged Chillers
Same great features as the NQ Series portable and packaged chiller with the addition of an optional variable speed compressor for significant energy savings!
NQV Variable Speed Chillers with advanced NQ Series PLC Controllers are at the technological forefront of the process cooling industry. The controller constantly monitors the heat load and adjusts the compressor speed for peak efficiency and temperature control and eliminates the need for hot gas bypass. By automatically adjusting the compressor speed, the chiller works only as hard as necessary to provide optimum performance with significantly reduced power use. Studies have shown that a 20% reduction in motor speed can lead to a 51% energy savings.
-
Indoor and Outdoor
Installation -
Green Refrigerant
ODP = 0 -
Single & Tandem
Scroll Compressor -
Internal
Hydraulic Pumping Kit
Benefits of the NQV Series Industrial Chiller Features
Save energy while moving more air and reducing noise levels.
Extend operating range, boost reliability and ensure lubrication of the bearings under varying loads, enhancs energy efficiency, maintain proper refrigerant flow for consistent cooling under variable load/ambient conditions.
Protects the internal components of the chiller.
Allows monitoring of chiller operation and easy set point control.
Use of premium components provide protection against rust and corrosion for reliability and long life.
Provides redundancy and reliability, better matches varying cooling loads for energy efficiency, provides faster pull-down times of process fluid, offers higher capacity in a compact mobile design, and allows for service flexibility on 20-ton and above models.
Overview
- Air cooled 5 to 30 ton (18 to 109 kW)
- Water cooled 5 to 30 ton (18 to 109 kW)
- Control system provides diagnostics and precise temperature control
- Compact microchannel all aluminum air-cooled condensers for increased durability
- High efficiency fans (air-cooled units only) with integral condensers feature totally enclosed air over (TEAO) motors for long life
- Stainless steel brazed plate evaporators with flow and temperature safeties to guard against freezing
- Variable speed compressor varies the speed to match the load
- Compressor , pump and condenser fan starters (air-cooled units only) mounted in control panel and wired to motors
- Remote 4-20 mA set point temperature input capability for increased application flexibility
- Low voltage 24 VDC control keeps the control circuit signals free from AC interference
- Internal insulated polyethylene reservoir
- Removable inlet air filter (air-cooled units only) is easily cleaned and protects condenser coils to assure maximum efficiency
- Tools-free removable doors
- Solid state safety switches with electronic sensing devices
- Alarm horn
- EPA approved low GWP R-454B refrigerant
Available Options
- C-UL 508A industrial control panel with single point electrical connection
- Rotary non-fused disconnect for quick and safe main power disconnect
- Outdoor duty construction
- 5 year compressor warranty
- Alarm contact
- Upsize tank
- Return piping kit
- CONNEX 4.0 for system-wide control
Resources
Brochures
Specifications
Product Catalog
Easy-to-Operate Control Panel Options

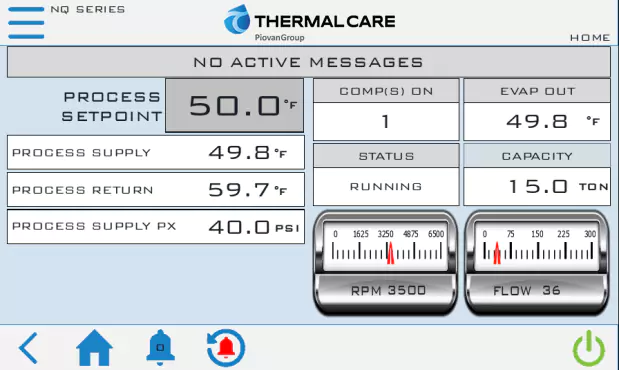

Each NQ Series portable chiller comes standard with a large 7 inch color touch screen and PLC controls with extensive monitoring and control capabilities.
The optional, more advanced Premium Control comes with expanded diagnostic and communication capabilities. The Premium Control is standard on all NQV Series portable chillers.
Variable-Speed Portable Chiller Savings Calculator
Answer These Questions to Calculate your Potential Savings

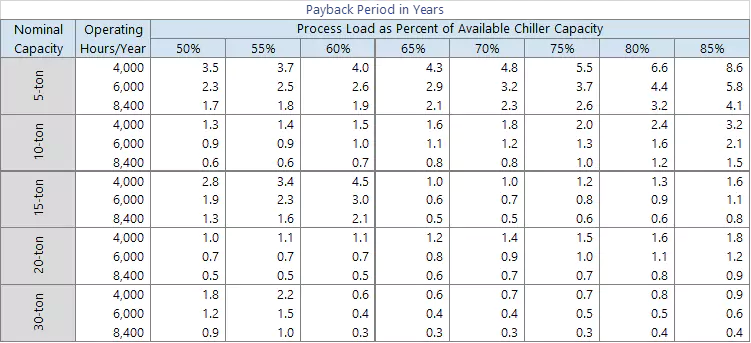

Variable Speed Compressor Payback (Years)
Compared to a typical chiller with a fixed speed compressor, a NQV chiller with a variable speed compressor provides major power savings at partial loads. This is particularly important in process applications which run varying loads that rarely use full capacity of the chiller. Variable speed scroll compressor technology varies the compressor speed to match the process load. This means the compressor slows down under part load conditions for peak performance and reduced power use. 5, 10, and 15 ton units use one variable-speed compressor. A 20 ton unit uses a 10 ton variable-speed and a 10 ton fixed-speed compressor and a 30 ton unit uses a 15 ton variable-speed and 15 ton fixed-speed compressor.
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
Related Products

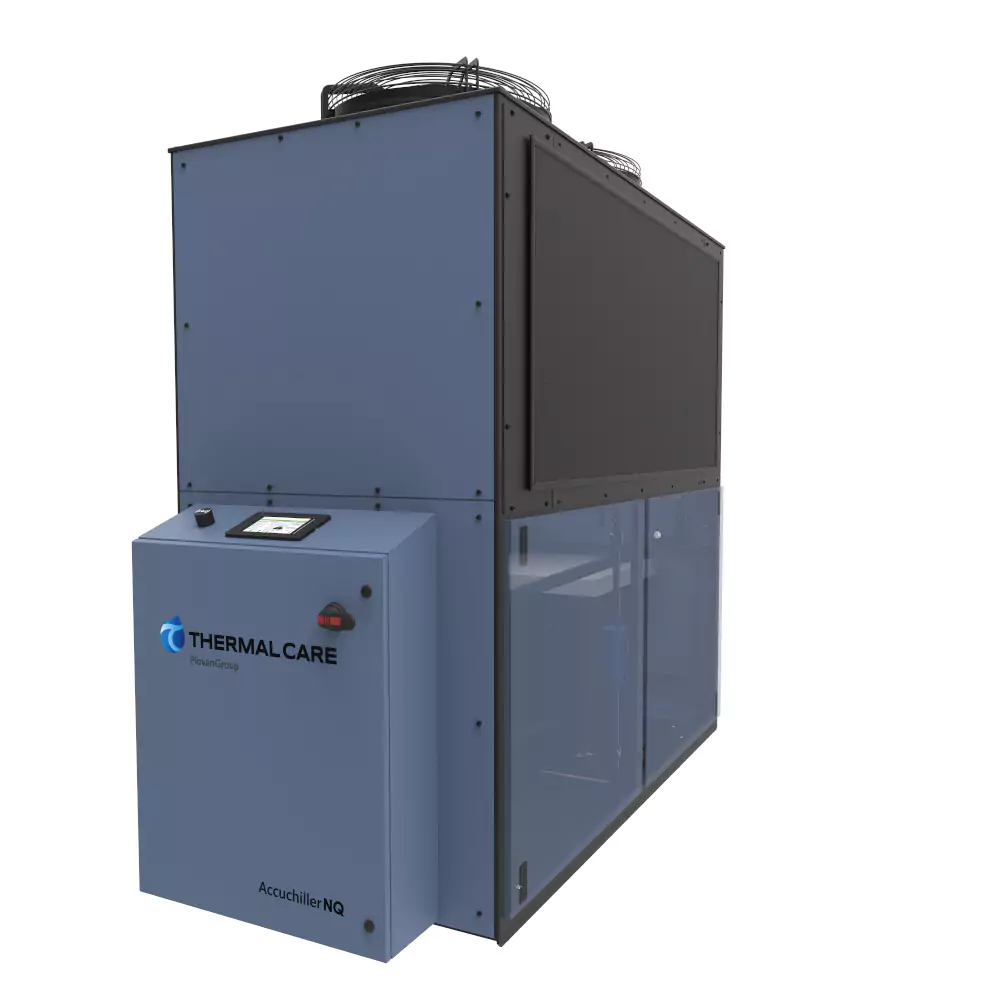

Click and rotate the image to see the NQVA20.
