Click and rotate the KSE series chiller40 to 720 Ton Accuchiller KSE Series Packaged Outdoor Chiller with Integral Tank
Dual refrigeration circuit, 40 to 60 ton (141 to 211 kW)
Dual fluid & refrigeration circuit, 80 to 120 ton (281 to 422 kW)
KSE Series industrial outdoor air-cooled chillers with integral tank feature a compact, all-in-one package designed to minimize installation cost, maximize usable space and lower electric bills. Designed for harsh outdoor environments KSE Series chillers require no options to operate within the standard -20°F to 125°F (-29°C to 52°C) ambient environment conditions. Standard process fluid temperatures of 20°F to 80°F (-7°C to 27°C) are ideal for industrial applications. The modular design allows up to 12 refrigeration circuits to be combined into a single system for up to 720 tons (2,532 kW) of cooling capacity.
KSE Series chillers with tank integrate a chiller with a complete process pumping system and integral reservoir in one packaged. Chiller and tank section ship separately for your convenience but are prewired and pre-piped for easy connection. Chillers are available with pumping packages, including high and low pressure pumping with dedicated standby and built-in pressurized tanks.
KSE Series chillers come standard with Dynamic Lift technology, which continuously calculates the lowest allowable refrigerant pressure for any combination of operating conditions to maximize chiller energy savings. Under steady-state process load conditions, KSE chillers provide stable process fluid temperatures within ±2°F (1.1°C).
-
Outdoor
Installation -
Green Refrigerant
ODP = 0 -
2 X Tandem
Scroll Compressors -
Internal
Hydraulic Pumping Kit
Benefits of the KSE Series Industrial Chiller with Integral Tank Features
Provides maximum performance, long life and enhanced protection from harsh process conditions.
Complete process pumping system and reservoir in one package - provides everything you need in one place.
Provide smooth, quiet operation, with high reliability. The sealed housing prevents refrigerant leaks and protects internal components from dust and moisture.
Dual refrigeration circuits, with built-in redundancy and multiple compressors ensures efficient operation and long life.
Overview
- Wide operating conditions
- Ambient Environment: -20°F to 125°F (-29°C to 52°C)
- Process Fluid Circuit: 20°F to 80°F (-7°C to 27°C)
- Integrates a chiller with a complete process pumping system and integral reservoir in one package (chiller and tank section ship separately). Provides buffer for temperature stabilization
- Integral air-cooled rugged microchannel condenser for class-leading efficiency
- Innovative PLC Control System with a large high-resolution color touch-screen operator interface and an extensive list of operational information including remote monitoring
- Direct drive scroll compressors for low maintenance and energy efficiency
- Compressor staging for capacity control with optional hot gas bypass for even greater unloading capabilities
- Compressor anti-cycle and start-up timer
- Lead/lag compressor staging to alternate primary compressor
- Brazed plate evaporators maximize performance and increase resistance to costly freeze-up failures
- Standard variable-speed drive fans reduce energy usage and provide optimum part-load performance for industry-leading IPLV, all while reducing noise levels for sound-sensitive environments
- C-UL 508A listed and labeled control panel
- In-line evaporator strainers assure full evaporator performance
- Single point connection for electric hookup at control cabinet
- Electronic expansion valves
- Liquid line solenoid valves to extend compressor life
- Refrigerant sight glasses
- Liquid line filter driers with removable cores
- High and low refrigerant pressure switches
- Alarm horn with silence button
- 3-phase power monitoring and safety protection
- EPA approved low GWP R-454B refrigerant or energy efficient R-410A refrigerant
Available Options
- High and low pressure pumping with dedicated stand-by pump for quick and easy installation
- Rotary non-fused disconnect switch
- Hot-gas bypass minimum load capacity control
- 5-year compressor parts warranty
- Expert field start-up provided by qualified service personnel
- CONNEX 4.0 for system-wide control
Resources
PLC Control System
PLC controls, monitors, and maintains stable and reliable operation of the chiller.
Specification Tables
| Model | KSEA040 | KSEA050 | KSEA060 | KSEA080 | KSEA100 | KSEA120 | |||
|---|---|---|---|---|---|---|---|---|---|
| Cooling Capacity¹ | 40 ton chiller 141 kW |
50 ton chiller 176 kW |
60 ton chiller 211 kW |
80 ton chiller 281 kW |
100 ton chiller 352 kW |
120 ton chiller 422 kW |
|||
| Set Point Range | 20 to 80°F -7 to 27°C |
20 to 80°F -7 to 27°C |
20 to 80°F -7 to 27°C |
20 to 80°F -7 to 27°C |
20 to 80°F -7 to 27°C |
20 to 80°F -7 to 27°C |
|||
| Compressor (qty) | 2 | 2 | 2 | 4 | 4 | 4 | |||
| Process In/Out (in) - Standard | 3 | 3 | 4 | 4 | 4 | 4 | |||
| Process In/Out (in) - High Flow | 4 | 4 | 4 | 4 | 6 | 6 | |||
| Length ( Chiller Only) | 128 in 3,251 mm |
173 in 4,394 mm |
173 in 4,394 mm |
128 in 3,251 mm |
173 in 4,394 mm |
173 in 4,394 mm |
|||
| Width ( Chiller Only) | 47 in 1,194 mm |
47 in 1,194 mm |
47 in 1,194 mm |
88 in 2,235 mm |
88 in 2,235 mm |
88 in 2,235 mm |
|||
| Height ( Chiller Only) | 79 in 2,007 mm |
79 in 2,007 mm |
79 in 2,007 mm |
79 in 2,007 mm |
79 in 2,007 mm |
79 in 2,007 mm |
|||
| Ship Weight ( Chiller Only) | 2,876 lbs 1,305 kg |
3,976 lbs 1,803 kg |
3,976 lbs 1,803 kg |
4,654 lbs 2,111 kg |
5,954 lbs 2,701 kg |
5,954 2,701 kg |
|||
| Length (Tank Only) | 64 in 163 mm |
64 in 163 mm |
64 in 163 mm |
91 in 231 mm |
91 in 231 mm |
91 in 231 mm |
|||
| Width (Tank Only) | 47 in 1,194 mm |
47 in 1,194 mm |
47 in 1,194 mm |
88 in 2,235 mm |
88 in 2,235 mm |
88 in 2,235 mm |
|||
| Height (Tank Only) | 79 in 2,007 mm |
79 in 2,007 mm |
79 in 2,007 mm |
79 in 2,007 mm |
79 in 2,007 mm |
79 in 2,007 mm |
|||
| Length ( Chiller & Tank Assembly) | 192 in 3,414 mm |
237 in 4,557 mm |
237 in 4,557 mm |
219 in 3,482 mm |
264 in 4,625 mm |
264 in 4,625 mm |
|||
| Width ( Chiller & Tank Assembly) | 47 in 1,194 mm |
47 in 1,194 mm |
47 in 1,194 mm |
88 in 2,235 mm |
88 in 2,235 mm |
88 in 2,235 mm |
|||
| Height ( Chiller & Tank Assembly) | 79 in 2,007 mm |
79 in 2,007 mm |
79 in 2,007 mm |
79 in 2,007 mm |
79 in 2,007 mm |
79 in 2,007 mm |
|||
| (Tank w/Standard Pressure Pump) | |||||||||
| Process Pump/ Chiller Pump | 7.5 hp 5.6 kW |
7.5 hp 5.6 kW |
10 hp 7.5 kW |
15 hp 11.2 kW |
15 hp 11.2 kW |
15 hp 11.2 kW |
|||
| Nominal Flow Rate | 96 gpm 363 lpm |
120 gpm 454 lpm |
144 gpm 545 lpm |
192 gpm 727 lpm |
240 gpm 909 lpm |
288 gpm 1,090 lpm |
|||
| Nominal Discharge Pressure | 41 psi 2.8 bar |
39 psi 2.7 bar |
50 psi 3.4 bar |
54 psi 3.7 bar |
50 psi 3.4 bar |
62 psi 4.3 bar |
|||
| Ship Weight (Tank Only) | 1,677 lbs 761 kg |
1,677 lbs 761 kg |
1,905 lbs 864 kg |
2,845 lbs 1,290 kg |
2,845 lbs 1,290 kg |
2,920 lbs 1,324 kg |
|||
| Operating Weight ( Chiller & Tank Assembly) | 6,323 lbs 2,868 kg |
7,598 lbs 3,446 kg |
7,826 lbs 3,550 kg |
11,769 lbs 5,338 kg |
13,179 lbs 5,978 kg |
13,319 lbs 6,041 kg |
|||
| (Tank with Standard Pressure Pump with Dedicated Standby Pump) | |||||||||
| Process Pump/ Chiller Pump | 7.5 hp 5.6 kW |
7.5 hp 5.6 kW |
10 hp 7.5 kW |
15 hp 11.2 kW |
15 hp 11.2 kW |
20 hp 14.9 kW |
|||
| Nominal Flow Rate | 96 gpm 363 lpm |
120 gpm 454 lpm |
144 gpm 545 lpm |
192 gpm 727 lpm |
240 gpm 909 lpm |
288 gpm 1,090 lpm |
|||
| Nominal Discharge Pressure | 41 psi 2.8 bar |
39 psi 2.7 bar |
50 psi 3.4 bar |
54 psi 3.7 bar |
50 psi 3.4 bar |
62 psi 4.3 bar |
|||
| Ship Weight (Tank Only) | 1,830 lbs 830 kg |
1,830 lbs 830 kg |
2,135 lbs 968 kg |
3,079 lbs 1,379 kg |
3,079 lbs 1,379 kg |
3,229 lbs 1,465 kg |
|||
| Operating Weight ( Chiller & Tank Assembly) | 6,476 lbs 2,938 kg |
7,751 lbs 3,516 kg |
8,056 lbs 3,654 kg |
12,003 lbs 5,445 kg |
13,413 lbs 6,084 kg |
13,628 lbs 6,182 kg |
|||
| ( Chiller w/High Pressure Pump) | |||||||||
| Process Pump/ Chiller Pump | 15 hp 11.2 kW |
15 hp 11.2 kW |
15 hp 11.2 kW |
25 hp 18.6 kW |
25 hp 18.6 kW |
25 hp 18.6 kW |
|||
| Nominal Flow Rate | 96 gpm 363 lpm |
120 gpm 454 lpm |
144 gpm 545 lpm |
192 gpm 727 lpm |
240 gpm 909 lpm |
288 gpm 1,090 lpm |
|||
| Nominal Discharge Pressure | 86 psi 5.9 bar |
82 psi 5.7 bar |
80 psi 5.5 bar |
90 psi 6.2 bar |
82 psi 5.7 bar |
76 psi 5.2 bar |
|||
| Ship Weight (Tank Only) | 1,768 lbs 802 kg |
1,768 lbs 802 kg |
1,919 lbs 870 kg |
2,854 lbs 1,295 kg |
2,982 lbs 1,352 kg |
2,982 lbs 1,352 kg |
|||
| Operating Weight ( Chiller & Tank Assembly) | 6,414 lbs 2,909 kg |
7,689 lbs 3,488 kg |
7,840 lbs 3,556 kg |
11,778 lbs 5,432 kg |
13,316 lbs 6,040 kg |
13,381 lbs 6,070 kg |
|||
| ( Chiller w/High Pressure Pump w/Dedicated Stby Pump) | |||||||||
| Process Pump/ Chiller Pump | 15 hp 11.2 kW |
15 hp 11.2 kW |
15 hp 11.2 kW |
25 hp 18.6 kW |
25 hp 18.6 kW |
25 hp 18.6 kW |
|||
| Nominal Flow Rate | 96 gpm 363 lpm |
120 gpm 454 lpm |
144 gpm 545 lpm |
192 gpm 727 lpm |
240 gpm 909 lpm |
288 gpm 1,090 lpm |
|||
| Nominal Discharge Pressure | 86 psi 5.9 bar |
82 psi 5.7 bar |
80 psi 5.5 bar |
90 psi 6.2 bar |
82 psi 5.7 bar |
76 psi 5.2 bar |
|||
| Ship Weight (Tank Only) | 2,011 lbs 912 kg |
2,011 lbs 912 kg |
2,162 lbs 981 kg |
3,098 lbs 1,405 lbs |
3,353 lbs 1,521 kg |
3,353 lbs 1.521 kg |
|||
| Operating Weight ( Chiller & Tank Assembly) | 6,657 lbs 3,020 kg |
7,932 lbs 3,598 kg |
8,083 lbs 3,666 kg |
12,022 lbs 5,453 kg |
13,687 lbs 6,208 kg |
13,752 lbs 6,238 kg |
|||
1Cooling tons based on 12,000 BTU/Hr/ton with 50°F (10°C) leaving coolant and 95°F (32°C) ambient air, R-410A or R-454B refrigerant.
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
Related Products

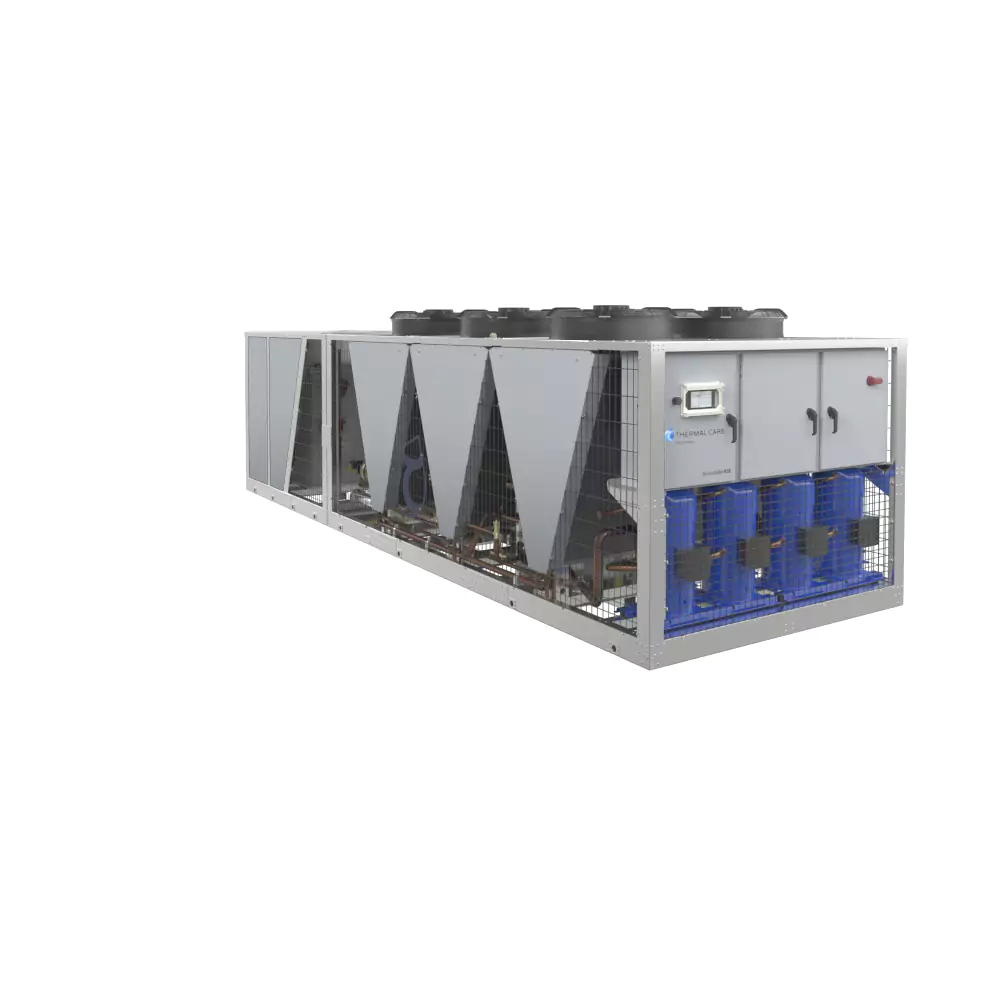

Click and rotate the image to see the KSEA120T.
