60 to 500 Ton - 30 Series Outdoor Central Chillers
60 to 500 Tons (211 to 1,758 kW)
Outdoor Central Chillers come with either air-cooled scroll or variable speed rotary screw compressors. Designed to be used outdoors, these chillers are easy to install, operate and maintain.

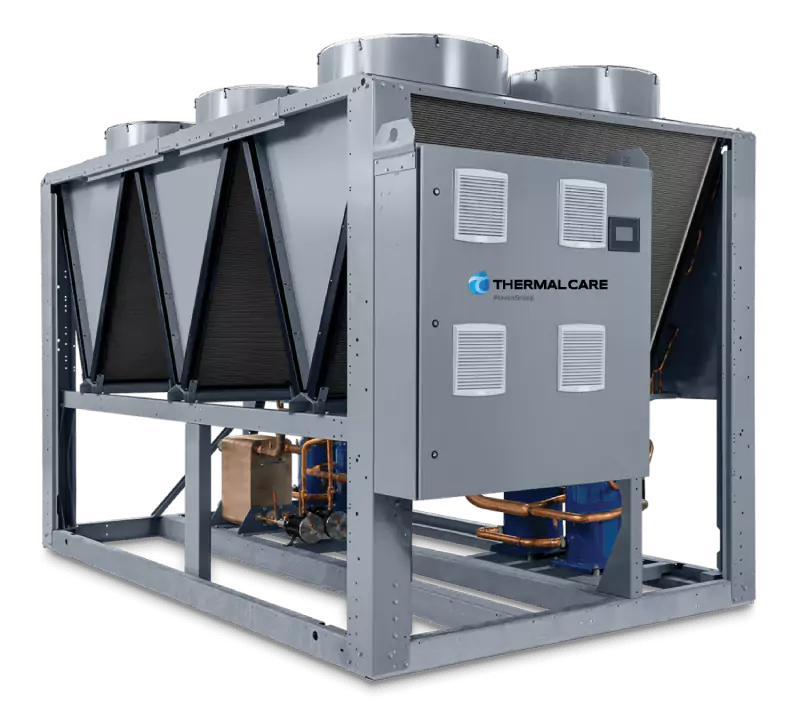

Benefits of the 30RC Series Industrial Chiller Features
Provides maximum performance, long life and enhanced protection from harsh process conditions.
Easily expand your system by adding additional units as your cooling needs grow, without requiring a system overhaul.
Perfect for applications with restricted space requirements.
Provide smooth, quiet operation, with high reliability. The sealed housing prevents refrigerant leaks and protects internal components from dust and moisture.

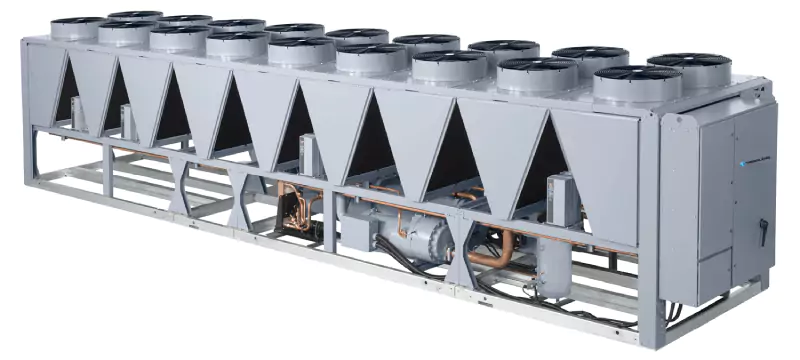

Benefits of the 30XV Series Industrial Chiller Features
Designed for use in both extreme hot and cold weather, this industrial chiller has a wide range, from -20° to 125°F (-29° to 52°C).
Provides reliable, low maintenance operation. Designed for VFD (variable frequency drive) control, these compressors achieve industry-leading efficiency as the compressor matches the changing load demands.
Energy monitoring and optimization features are included in the advanced controls.
Overview
- 60 to 250 Nominal Ton (30RC Series – R-32 Scroll Compressors)
- 140 to 500 Nominal Ton (30XV Series – R-513A Variable-Speed Screw Compressors)
- Microprocessor Control Panel
- Wide ambient condition operating range from -20°F to 125°F (-29°C to 52°C)
- ASHRAE 90.1 complaint / AHRI certified
- ASME constructed evaporators / ETL (and ETL Canada) listed
- Low sound levels
- Heavy-gage galvanized steel frame
- Compact and easy to install
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
