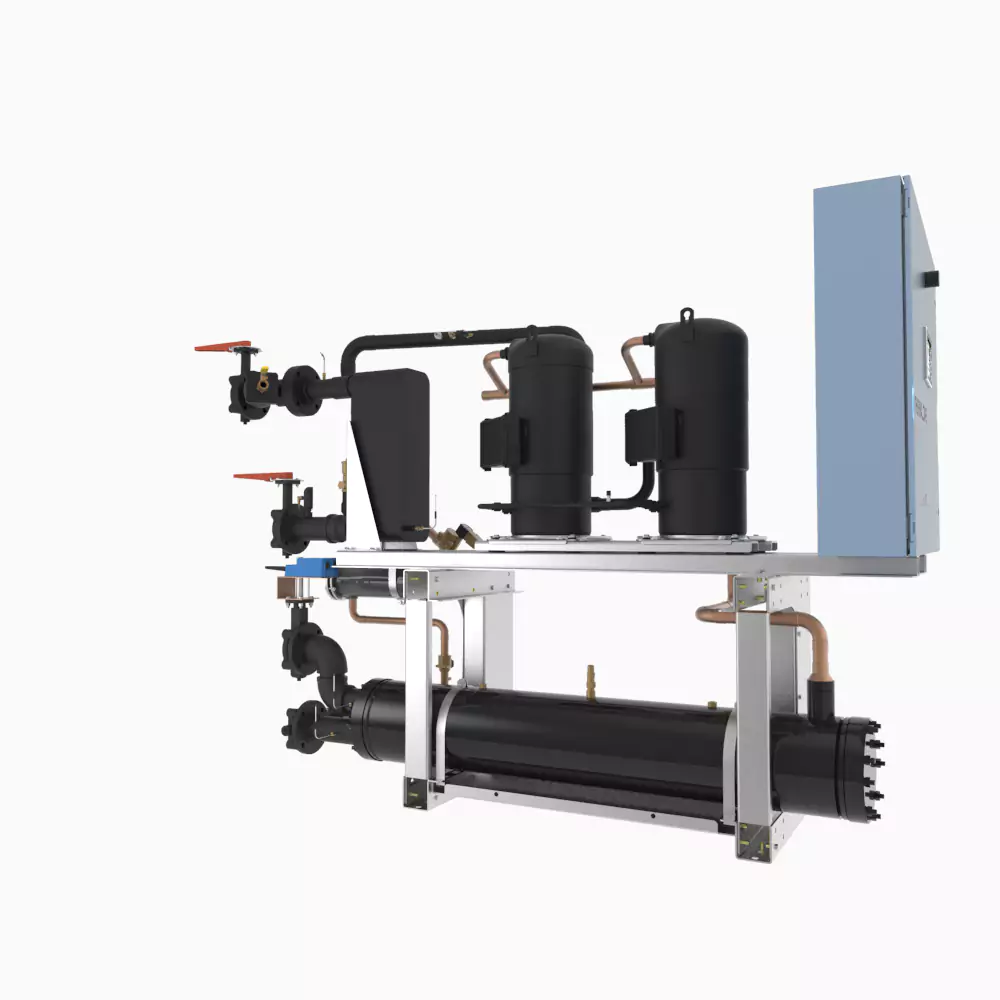

Accuchiller TSE Series

10 to 240 Ton TSE Series Central Chillers

Single circuit 10 to 120 ton (35 to 422 kW)

Dual circuit 20 to 240 ton (70 to 844 kW)

The compact size of the TSE industrial central chiller minimizes floor space; while its modular design allows up to 12 refrigeration circuits to be combined into a single system for over 1,000 tons (3,517 kW) of cooling capacity. The chiller's innovative high flow design assures consistent process leaving water temperatures from 20°F to 80°F (-7°C to 27°C) and as low as 5°F (3°C) differential across the process.

TSE Series chillers now come standard with Dynamic Lift Technology to continuously calculate the lowest allowable refrigerant pressure for any combination of operating conditions for maximize chiller energy savings and more stable and smooth control of refrigerant pressure, especially under varying load and condenser inlet temperatures.

  • Indoor
    Installation
  • Green Refrigerant
    ODP = 0
  • Single & Tandem
    Scroll Compressors
  • Internal
    Hydraulic Pumping Kit
Features Resources Videos PLC Control System Spec Tables
Request a Quote
Features
Feature Highlights Overview Available Options

Benefits of the TSE Series Industrial Chiller Features

interactive image
DIRECT-DRIVE SCROLL COMPRESSORS

Hermetically sealed scroll compressors are highly efficient and reliable. Low maintenance and industrial cooling - guaranteed.

STAINLESS STEEL EVAPORATORS

Stainless steel plates with copper brazing provide maximum performance and long life - even in harsh process conditions.

COMPACT FOOTPRINT

Designed to fit through standard 36-inch man doors, the single circut chillers take up little space, and are easy to maneuver.

MODULAR EXPANDABLE SYSTEM

Easily expand a system to over 1,000 tons, using up to six chillers and 12 refrigeration circuits.

Overview

  • Water-cooled and remote air-cooled condenser models are available
  • Advanced PLC Control System with high-resolution color touch-screen operator interface with an extensive list of operational information including compressor run hours
  • Brazed plate evaporators maximize performance and increase resistance to costly freeze-up failures
  • Compressor  staging for capacity control with optional hot gas bypass for even greater unloading capabilities
  • Scroll compressors last longer, increase efficiency and lower operating costs
  • C-UL 508A listed and labeled control panel
  • Compressor  anti-cycle and start-up timer
  • Lead/lag switch to alternate primary compressor
  • In-line evaporator strainers assure full evaporator performance
  • Water-cooled chillers include condenser water regulating valves
  • Single point connection for electric hookup at control cabinet
  • Cleanable frame mounted water-cooled condensers with removable heads (water-cooled only)
  • Electronic expansion valves
  • Liquid line solenoid valves to extend compressor life
  • Refrigerant sight glasses
  • Liquid line filter driers with removable cores
  • High and low refrigerant pressure switches
  • Alarm  horn with silence button
  • 3-phase power monitoring and safety protection
  • EPA approved low GWP R-454B refrigerant or energy efficient R-410A refrigerant

Available Options

Accuchiller TSE Series
  • High and low pressure pumping with dedicated stand-by pump for quick and easy installation
  • Rotary non-fused disconnect switch
  • Hot-gas bypass minimum load capacity control
  • 5-year compressor parts warranty
  • Expert field start-up provided by qualified service personnel
  • CONNEX 4.0 for system-wide control

Resources

Brochures

Specifications

Product Catalog

Operation Manuals

Legacy Manuals

Video

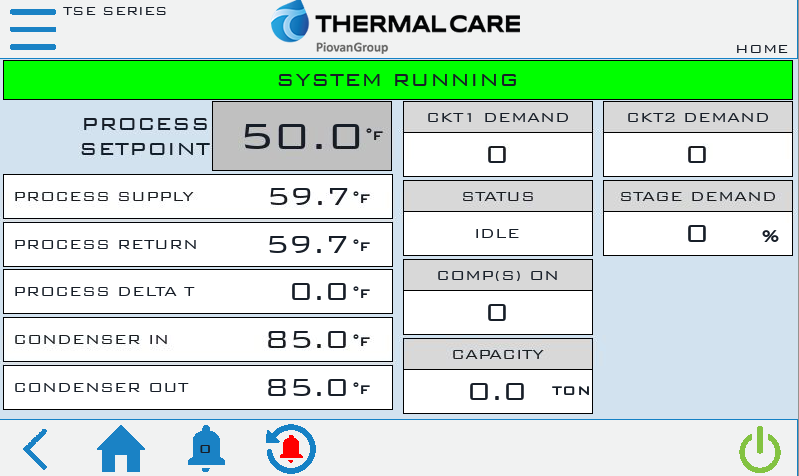

PLC Control System

The PLC control system combines a controller, operation interface, I/O and networking capability into one seamless solution.

Learn More

Specification Tables

Water Cooled Condenser Single-Circuit Chiller General Data
Model TSEW 10S TSEW 15S TSEW 20S TSEW 25S TSEW 30S TSEW 40S TSEW 50S TSEW 60S TSEW 80S TSEW 100S TSEW 120S
Cooling Capacity¹

10 ton chiller
39 kW

15 ton chiller
56 kW

20 ton chiller
77 kW

25 ton chiller
95 kW

30 ton chiller
113 kW

40 ton chillers
148 kW

50 ton chiller
186 kW

60 ton chiller
243 kW

80 ton chiller
302 kW

100 ton chiller
387 kW

120 ton chiller
450 kW
Set Point Range 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C
Compressor (qty) 2 2 2 2 2 2 2 2 2 3 3
Process Fluid In/Out (in) 1.5 1.5 2 2 2.5 2.5 3 4 4 4 4
Condenser Fluid In/Out (in) 1.5 2 2 2.5 2.5 3 3 4 4 4 4
Dimensions, Weights, Amps ( Chiller Only)
Length  68 in
1,727 mm		 72 in
1,829 mm		 75 in
1,905 mm		 75 in
1,905 mm		 77 in
1,956 mm		 102 in
2,591 mm		 92 in
2,337 mm		 102 in
2,591 mm		 102 in
2,591 mm		 123 in
3,124 mm		 125 in
3,175 mm
Width  30 in
762 mm		 30 in
762 mm		 30 in
762 mm		 30 in
762 mm		 30 in
762 mm		 30 in
762 mm		 36 in
914 mm		 36 in
914 mm		 36 in
914 mm		 30 in
762 mm		 30 in
762 mm
Height 68 in
1,727 mm		 68 in
1,727 mm		 68 in
1,727 mm		 68 in
1,727 mm		 68 in
1,727 mm		 68 in
1,727 mm		 68 in
1,727 mm		 68 in
1,727 mm		 68 in
1,727 mm		 70 in
1,778 mm		 71 in
1,803 mm
Shipping Weight  990 lbs
449 kg		 1,072 lbs
486 kg		 1,149 lbs
521 kg		 1,189 lbs
539 kg		 1,339 lbs
607 kg		 1,763 lbs
800 kg		 1,802 lbs
817 kg		 2,294 lbs
1,041 kg		 2,467 lbs
1,119 kg		 3,230 lbs
1,465 kg		 3,250 lbs
1,474 kg
Operating Weight  1,005 lbs
456 kg		 1,092 lbs
495 kg		 1,179 lbs
535 kg		 1,222 lbs
554 kg		 1,376 lbs
624 kg		 1,823 lbs
827 kg		 1,872 lbs
849 kg		 2,380 lbs
1,080 kg		 2,557 lbs
1,160 kg		 3,330 lbs
1,510 kg		 3,350 lbs
1,520 kg
MCA @ 460/3/60 (amps)² 23 37 48 57 64 82 100 129 172 209 247
Chiller w/ Standard Flow Reservoir Option
Reservoir Capacity  275 gal
1,041 L		 275 gal
1,041 L		 275 gal
1,041 L		 275 gal
1,041 L		 275 gal
1,041 L		 275 gal
1,041 L		 275 gal
1,041 L		 450 gal
1,703 L		 450 gal
1,703 L		 na na
Process/ Chiller Pump 5/1.5 hp
3.7/1.1 kW		 5/1.5 hp
3.7/1.1 kW		 5/1.5 hp
3.7/1.1 kW		 5/1.5 hp
3.7/1.1 kW		 7.5/2 hp
5.6/1.5 kW		 10/2 hp
7.5/1.5 kW		 10/3 hp
7.5/2.2 kW

10/3 hp
7.5/2.2 kW

 15/3 hp
11.2/2.2 kW		 na na
Process Connection Size (in) 1.5 1.5 2 2 2.5 2.5 3 3 4 na na
Length  99 in
2,515 mm		 99 in
2,515 mm		 99 in
2,515 mm		 99 in
2,515 mm		 99 in
2,515 mm		 99 in
2,515 mm		 102 in
2,591 mm		 114 in
2,896 mm		 114 in
2,896 mm		 na na
Width 68 in
1,727 mm		 72 in
1,829 mm		 75 in
1,905 mm		 75 in
1,905 mm		 78 in
1,981 mm		 98 in
2,489 mm		 102 in
2,591 mm		 101 in
2,565 mm		 101 in
2,565 mm		 na na
Height

73 in
1,854 mm

73 in
1,854 mm

73 in
1,854 mm

73 in
1,854 mm

73 in
1,854 mm

73 in
1,854 mm

73 in
1,854 mm

73 in
1,854 mm

73 in
1,854 mm

 na na
Shipping Weight 2,337 lbs
1,061 kg		 2,418 lbs
1,097 kg		 2,496 lbs
1,132 kg		 2,537 lbs
1,151 kg		 2,769 lbs
1,256 kg		 3,238 lbs
1,469 kg		 3,374 lbs
1,530 kg		 4,147 lbs
1,881 kg		 4,370 lbs
1,982 kg		 na na
Operating Weight  4,631 lbs
2,101 kg		 4,712 lbs
2,137 kg		 4,790 lbs
2,173 kg		 4,831 lbs
2,191 kg		 5,063 lbs
2,297 kg		 5,532 lbs
2,509 kg		 5,668 lbs
2,571 kg		 7,901 lbs
3,584 kg		 8,124 lbs
3,685 kg		 na na
MCA @ 460/3/60 (amps)² 33 45 55 63 74 94 111 137 184 na na
Chiller w/ High Flow Reservoir Option
Reservoir Size  400 gal
1,514 L		 400 gal
1,514 L		 400 gal
1,514 L		 400 gal
1,514 L		 400 gal
1,514 L		 400 gal
1,514 L		 400 gal
1,514 L		 650 gal
2,461 L		 650 gal
2,461 L		 na na
Process / Chiller Pump 5/1.5 hp
3.7/1.1 kW		 7.5/1.5 hp
5.6/1.1 kW

10/1.5 hp
7.5/1.1 kW

 10/1.5 hp
7.5/1.1 kW		 10/2 hp
7.5/1.5 kW		 15/2 hp
11.2/1.5 kW		 15/3 hp
11.2/2.2 kW		 20/3 hp
15/2.2 kW		 25/3 hp
18.6/2.2 kW		 na na
Process Connection Size (in) 2 2.5 2.5 3 3 4 4 4 6 na na
Length 99 in
2,515 mm		 99 in
2,515 mm		 99 in
2,515 mm		 99 in
2,515 mm		 99 in
2,515 mm		 99 in
2,515 mm		 102 in
2,591 mm		 114 in
2,896 mm		 114 in
2,896 mm		 na na
Width 68 in
1,727 mm		 72 in
1,829 mm		 75 in
1,905 mm		 75 in
1,905 mm		 78 in
1,981 mm		 98 in
2,489 mm		 102 in
2,591 mm		 101 in
2,565 mm		 101 in
2,565 mm		 na na
Height 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm		 na na
Shipping Weight 2,850 lbs
1,293 kg		 2,950 lbs
1,338 kg		 3,100 lbs
1,406 kg		 3,150 lbs
1,429 kg		 3,450 lbs
1,565 kg		 4,000 lbs
1,815 kg		 4,250 lbs
1,928 kg		 4,950 lbs
2,245 kg		 5,750 lbs
2,608 kg		 na na
Operating Weight  6,200 lbs
2,812 kg		 6,300 lbs
2,858 kg		 6,450 lbs
2,926 kg		 6,500 lbs
2,948 kg		 6,800 lbs
3,084 kg		 7,350 lbs
3,334 kg		 7,600 lbs
3,447 kg		 10,400 lbs
4,717 kg		 11,200 lbs
5,080 kg		 na na
MCA @ 460/3/60(amps)² 33 51 65 74 81 106 161 155 211 na na

1Cooling capacity when cooling water with 50°F (10°C) set point, 60°F (16°C) return, 85°F (29°C) condenser water, R-410A or R-454B refrigerant.
2MCA is Minimum Circuit Amps under full load, used for minimum wire size requirements.

Water Cooled Condenser Dual-Circuit Chiller General Data
Model TSEW 20D TSEW 30D TSEW 40D TSEW 50D TSEW 60D TSEW 80D TSEW 100D TSEW 120D TSEW 160D TSEW 200D TSEW 240D
Cooling Capacity¹

20 ton chiller
77 kW

30 ton chiller
113 kW

40 ton chiller
155 kW

50 ton chiller
190 kW

60 ton chiller
229 kW

80 ton chiller
295 kW

100 ton chiller
373 kW

120 ton chiller
482 kW

160 ton chiller
601 kW

200 ton chiller
774 kW

240 ton chiller
900 kW
Set Point Range 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C
Compressor Circuit 1 (qty) 2 2 2 2 2 2 2 2 2 3 3
Compressor Circuit 2 (qty) 2 2 2 2 2 2 2 2 2 3 3
Process In/Out (in) 2 2.5 2.5 3 3 4 4 4 6 6 6
Condenser Fluid In/Out (in) 2 2.5 3 3 4 4 4 6 6 6 6
Dimensions, Weights, Amps ( Chiller Only)
Length 76 in
1,930 mm		 77 in
1,956 mm		 80 in
2,032 mm		 81 in
2,057 mm		 87 in 2,210 mm 117 in
2,972 mm		 113 in
2,870 mm		 119 in
3,023 mm		 120 in
3,048 mm		 139 in
3,531 mm		 141in
3,581 mm
Width 48 in
1,219 mm		 49 in
1,245 mm		 50 in
1,270 mm		 50 in
1,270 mm		 52 in
1,321 mm		 51 in
1,295 mm		 52 in
1,321 mm		 54 in
1,372 mm		 54 in
1,3725 mm		 60 in
1,524 mm		 60 in
1,524 mm
Height 68 in
1,727 mm		 68 in
1,727 mm		 68 in
1,727 mm		 68 in
1,727 mm		 68 in
1,727 mm		 68 in
1,727 mm		 68 in
1,727 mm		 68 in
1,727 mm		 68 in
1,727 mm		 70 in
1,778 mm		 71 in
1,803 mm
Shipping Weight 1,925 lbs
873 kg		 2,093 lbs
949 kg		 2,255 lbs
1,023 kg		 2,343 lbs
1,063 kg		 2,657 lbs
1,205 kg		 3,516 lbs
1,595 kg		 3,595 lbs
1,631 kg		 4,361 lbs
1,978 kg		 4,736 lbs
2,148 kg		 5,760 lbs
2,613 kg		 5,780 lbs
2,622 kg
Operating Weight 1,955 lbs
887 kg		 2,133 lbs
968 kg		 2,315 lbs
1,050 kg		 2,409 lbs
1,093 kg		 2,731 lbs
1,239 kg		 3,636 lbs
1,649 kg		 3,735 lbs
1,694 kg		 4,533 lbs
2,056 kg		 4,916 lbs
2,230 kg		 5,960 lbs
2,703 kg		 5,980 lbs
2,713 kg
MCA @ 460/3/60 (amps)² 42 69 90 107 120 154 188 243 324 397 474
Chiller w/ Standard Flow Reservoir Option
Reservoir Capacity  275 gal
1,041 L		 275 gal
1,041 L		 275 gal
1,041 L		 275 gal
1,041 L		 450 gal
1,703 L		 450 gal
1,703 L		 700 gal
2,650 L		 700 gal
2,650 L		 1,000 gal
3,785 kg		 na na
Process/ Chiller Pump 5/1.5 hp
3.7/1.1 kW		 7.5/2 hp
5.6/1.5 kW		 10/2 hp
7.5/1.5 kW		 10/3 hp
7.5/2.2 kW		 10/3 hp
7.5/2.2 kW		 15/3 hp
11.2/2.2 kW		 15/5 hp
11.2/3.7 kW		 20/7.5 hp
14.9/3.7 kW		 25/10 hp
18.6/7.5 kW		 na na
Process Connection Size (in) 2 2.5 2.5 3 3 4 4 4 6 na na
Length 123 in
3,124 mm		  123 in
3,124 mm		  123 in
3,124 mm		  123 in
3,124 mm		 135 in
3,429 mm		 135 in
3,429 mm		 135 in
3,429 mm		 135 in
3,429 mm		 148 in
3,759 mm		 na na
Width 74 in
1,880 mm		 74 in
1,880 mm

77 in
1,956 mm

 78 in
1,981 mm		 81 in
2,057 mm		 98 in
2,489 mm		 102 in
2,591 mm		 111³
2,819 mm		 111³
2,819 mm		 na na
Height 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm		 75 in
1,905 mm		 75 in
1,905 mm		 79 in
2,007 mm		 79 in
2,007 mm		 79 in
2,007 mm		 90 in
2,286 mm		 na na
Shipping Weight  3,486 lbs
1,581 kg		 3,748 lbs
1,700 kg		 3,948 lbs
1,791 kg		 4,068 lbs
1,845 kg		 4,546 lbs
2,062 kg		 5,390 lbs
2,445 kg		 6,067 lbs
2,752 kg		 7,160 lbs
3,248 kg		 8,168 lbs
3,705 kg		 na na
Operating Weight 5,780 lbs
2,622 kg		 6,042 lbs
2,741 kg		 6,229 lbs
2,825 kg		 6,362 lbs
2,886 kg		 8,300 lbs
3,765 kg		 9,144 lbs
4,148 kg		 11,936 lbs
5,414 kg		 12,999 lbs
5,896 kg		 16,510 lbs
7,489 kg		 na na
MCA @ 460/3/60(amps)² 53 84 108 126 139 180 217 278 372 na na
Chiller w/ High Flow Reservoir Option
Reservoir Capacity  400 gal
1,514 L		 400 gal
1,514 L		 400 gal
1,514 L		 400 gal
1,514 L		 650 gal
2,461 L		 650 gal
2,461 L		 1,000 gal
3,785 L		 1,000 gal
3,785 L		 1,000 gal
3.785 L		 na na
Process/ Chiller Pump  10/1.5 hp
7.5/1.1 kW		 10/2 hp
7.5/1.5 kW		 15/2 hp
11.2/1.5 kW		 15/3 hp
11.2/2.2 kW		 20/3 hp
15/2.2 kW		 25/3 hp
18.6/2.2 kW		 30/5 hp
22.4/3.7 kW		 40/7.5 hp
29.8/5.6 kW		 40/10 hp
29.8/7.5 kW		 na na
Process Connection Size (in) 2.5 3 4 4 4 6 6 6 6 na na
Length 123 in
3,124 mm		 123 in
3,124 mm		 123 in
3,124 mm		 123 in
3,124 mm		 135 in
3,429 mm		 135 in
3,429 mm		 135 in
3,429 mm		 135 in
3,429 mm		 148 in
3,759 mm		 na na
Width 74 in
1,880 mm		 74 in
1,880 mm		 77 in
1,956 mm		 78 in
1,981 mm		 81 in
2,057 mm		 98 in
2,489 mm		 102 in
2,591 mm		 111³ in
2,819 mm		 111³ in
2,819 mm		 na na
Height 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm		 75 in
1,905 mm		 75 in
1,905 mm		 79 in
2,007 mm		 79 in
2,007 mm		 79 in
2,007 mm		 90 in
2,286 mm		 na na
Shipping Weight 5,950 lbs
2,699 kg		 6,400 lbs
2,903 kg		 6,750 lbs
3,062 kg		 6,950 lbs
3,153 kg		 8,950 lbs
4,060 kg		 10,300 lbs
4,672 kg		 13,050 lbs
5,919 kg		 14,150 lbs
6,418 kg		 18,500 lbs
8,392 kg		 na na
Operating Weight 7,200 lbs
3,266 kg		 7,650 lbs
3,470 kg		 8,000 lbs
3,629 kg		 8,200 lbs
3,720 kg		 10,900 lbs
4,944 kg		 12,250 lbs
5,557 kg		 16,250 lbs
7,731 kg		 17,250 lbs
7,825 kg		 19,500 lbs
8,845 kg		 na na
MCA @ 460/3/60(amps)² 61 87 115 133 152 193 236 303 390 na na

1Cooling capacity when cooling water with 50°F (10°C) set point, 60°F (16°C) return, 85°F (29°C) condenser water, R-410A or R-454B refrigerant.
2MCA is Minimum Circuit Amps under full load, used for minimum wire size requirement.
3To keep shipping dimensions within the 102" (259 cm) width of a standard flatbed, the condenser inlet manifold ships separately.

Remote Air Cooled Condenser Single-Circuit Chiller General Data
  TSER 10S TSER 15S TSER 20S TSER 25S TSER 30S TSER 40S TSER 50S TSER 60S TSER 80S
Cooling Capacity¹

10 ton chiller
35 kW

15 ton chiller
53 kW

20 ton chiller
70 kW

25 ton chiller
88 kW

30 ton chiller
105 kW

40 ton chiller
39 kW

50 ton chiller
172 kW

60 ton chiller
225 kW

80 ton chiller
278 kW
Set Point Range 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C		 20 - 80°F
-7 - 27°C
Compressor (qty) 2 2 2 2 2 2 2 2 2
Process In/Out (in) 1.5 1.5 2 2 2.5 2.5 3 4 4
Refrigerant Discharge Line (in) 7/8 1 1/8 1 1/8 1 3/8 1 3/8 1 3/8 1 5/8 1 5/8 2 1/8
Refrigerant Liquid Line (in) 5/8 7/8 7/8 1 1/8 1 1/8 1 1/8 1 1/8 1 3/8 1 5/8
Dimensions, Weights, Amps ( Chiller Only)
Length 64 in
1,626 mm		 65 in
1,651 mm		 68 in
1,727 mm		 68 in
1,727 mm		 74 in
1,880 mm		 102 in
2,591 mm		 99 in
2,515 mm		 102 in
2,591 mm		 102 in
2,591 mm
Width 30 in
762 mm		 30 in
762 mm		 30 in
762 mm		 30 in
762 mm		 30 in
762 mm		 30 in
762 mm		 36 in
914 mm		 36 in
914 mm		 36 in
914 mm
Height 68 in
1,727 mm		  68 in
1,727 mm		  68 in
1,727 mm		  68 in
1,727 mm		  68 in
1,727 mm		  68 in
1,727 mm		  68 in
1,727 mm		  68 in
1,727 mm		  68 in
1,727 mm
Shipping Weight 897 lbs
407 kg		 1,024 lbs
465 kg		 1,060 lbs
481 kg		 1,076 lbs
488 kg		 1,202 lbs
545 kg		 1,554 lbs
705 kg		 1,588 lbs
720 kg		 1,995 lbs
905 kg		 2,161 lbs
980 kg
Operating Weight 912 lbs
414 kg		 1,044 lbs
474 kg		 1,090 lbs
494 kg		 1,109 lbs
503 kg		 1,239 lbs
562 kg		 1,614 lbs
732 kg		 1,658 lbs
752 kg		 2,081 lbs
944 kg		 2,251 lbs
1,021 kg
MCA @ 460/3/60 (amps)² 23 37 48 57 64 82 100 124 172
Chiller w/ Standard Flow Reservoir Option
Reservoir Size 275 gal
1,041 L		 275 gal
1,041 L		 275 gal
1,041 L		 275 gal
1,041 L		 275 gal
1,041 L		 275 gal
1,041 L		 275 gal
1,041 L		 450 gal
1,703 L		 450 gal
1,703 L
Process / Chiller Pump (hp) 5/1.5 hp
3.7/1.1 kW		 5/1.5 hp
3.7/1.1 kW		 5/1.5 hp
3.7/1.1 kW		 5/1.5 hp
3.7/1.1 kW		 7.5/2 hp
5.6/1.5 kW		 10/2 hp
7.5/1.5 kW		 10/3 hp
7.5/2.2 kW		 10/3 hp
7.5/2.2 kW		 15/3 hp
11.2/2.2 kW
Process Connection Size (in) 1.5 1.5 2 2 2.5 2.5 3 3 4
Length 99 in
2,515 mm		 99 in
2,515 mm		 99 in
2,515 mm		 99 in
2,515 mm		 99 in
2,515 mm		 99 in
2,515 mm		 102 in
2,591 mm		 114 in
2,896 mm		 114 in
2,896 mm
Width 66 in
1,676 mm		 66 in
1,676 mm		 67 in
1,702 mm		 67 in
1,702 mm		 71 in
1,803 mm		 98 in
2,489 mm		 102 in
2,591 mm		 101 in
2,565 mm		 101 in
2,565 mm
Height 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm
Shipping Weight 2,267 lbs
1,028 kg		 2,370 lbs
1,075 kg

2,407 lbs
1,092 kg

 2,423 lbs
1,099 kg		 2,628 lbs
1,192 kg		 3,030 lbs
1,375 kg		 3,158 lbs
1,432 kg		 3,846 lbs
1,745 kg		 4,063 lbs
1,843 kg
Operating Weight 4,561 lbs
2,069 kg		 4,664 lbs
2,116 kg		 4,701 lbs
2,132 kg		 4,717 lbs
2,140 kg		 4,922 lbs
2,233 kg		 5,324 lbs
2,415 kg		 5,452 lbs
2,473 kg		 7,600 lbs
3,447 kg		 7,817 lbs
3,546 kg
MCA @ 460/3/60(amps)² 33 45 55 63 74 94 111 132 184
Chiller w/ High Flow Reservoir Option
Reservoir Capacity 400 gal
1,514 L		 400 gal
1,514 L		 400 gal
1,514 L		 400 gal
1,514 L		 400 gal
1,514 L		 400 gal
1,514 L		 400 gal
1,514 L		 650 gal
2,461 L		 650 gal
2,461 L
Process / Chiller Pump 5/1.5 hp
3.7/1.1 kW		 7.5/1.5 hp
5.6/1.1 kW		 10/1.5 hp
7.5/1.1 kW		 10/1.5 hp
7.5/1.1 kW		 10/2 hp
7.5/1.5 kW		 15/2 hp
11.2/1.5 kW		 15/3 hp
11.2/2.2 kW		 20/3 hp
14.9/2.2 kW		 25/3 hp
18.6/2.2 kW
Process Connection Size (in) 2 2.5 2.5 3 3 4 4 4 6
Length 99 in
2,515 mm		 99 in
2,515 mm		 99 in
2,515 mm		 99 in
2,515 mm		 99 in
2,515 mm		 99 in
2,515 mm		 102 in
2,591 mm		 114 in
2,896 mm		 114 in
2,896 mm
Width 66 in
1,676 mm		 66 in
1,676 mm		 67 in
1,702 mm		 67 in
1,702 mm		 71 in
1,803 mm		 98 in
2,489 mm

102 in
2,591 mm

 101 in
2,565 mm		 101 in
2,565mm
Height 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm		 73 in
1,854 mm
Shipping Weight 2,800 lbs 1,270 kg 2,950 lbs
1,338 kg		 2,950 lbs
1,338 kg		 3,000 lbs
1,361 kg		 3,300 kg
1,497 kg		 3,750 lbs
1,701 kg		 4,000 lbs
1,814 kg		 4,600 lbs
2,087 kg		 5,350 lbs
2,427 kg
Operating Weight 6,150 lbs
2,790 kg		 6,300 lbs
2,858 kg		 6,300 lbs
2,858 kg

6,350 lbs
2,880 kg

 6,650 lbs
3,016 kg		 7,100 lbs
3,221 kg		 7,350 lbs
3,334 kg		 10,050 lbs
4,559 kg		 10,800 lbs
4,899 kg
MCA @ 460/3/60(amps)² 33 51 65 74 81 106 126 161 211

1Cooling capacity when cooling water with 50°F (10°C) set point, 60°F (16°C) return, 95°F (35°C) condenser water, R-410A or R-454B refrigerant.
2MCA is Minimum Circuit Amps under full load, used for minimum wire size requirement.

Remote Air Cooled Condenser Dual-Circuit Chiller General Data
  TSER 20D TSER 30D TSER 40D TSER 50D TSER 60D TSER 80D TSER 100D TSER 120D TSER 160D
Cooling Capacity¹

20 ton chiller
70 kW

30 ton chiller
105 kW

40 ton chiller
144 kW

50 ton chiller
176 kW

60 ton chiller
211 kW

80 ton chiller
274 kW

100 ton chiller
345 kW

120 ton chiller
447 kW

160 ton chiller
556 kW
Set Point Range  20 to 80°F
-7 to 27°C		 20 to 80°F
-7 to 27°C		 20 to 80°F
-7 to 27°C		 20 to 80°F
-7 to 27°C		 20 to 80°F
-7 to 27°C		 20 to 80°F
-7 to 27°C		 20 to 80°F
-7 to 27°C		 20 to 80°F
-7 to 27°C		 20 to 80°F
-7 to 27°C
Compressor Circuit 1 (qty) 2 2 2 2 2 2 2 2 2
Compressor Circuit 2 (qty) 2 2 2 2 2 2 2 2 2
Process In/Out (in) 2 2.5 2.5 3 3 4 4 4 6
Refrigerant Discharge Line (in) 7/8 1 1/8 1 1/8 1 3/8 1 3/8 1 3/8 1 5/8 1 5/8 2 1/8
Refrigerant Liquid Line (in) 5/8 7/8 7/8 1 1/8 1 1/8 1 1/8 1 1/8 1 3/8 1 5/8
Dimensions, Weights, Amps ( Chiller Only)
Length  76 in
1,930 mm		 77 in
1,956 mm		 80 in
2,032 mm		 81 in
2,057 mm		 87 in
2,210 mm		 117 in
2,972 mm		 113 in
2,870 mm		 116 in
2,946 mm		 120 in
3,048 mm
Width  48 in
1,219 mm		 48 in
1,219 mm		 48 in
1,219 mm		 48 in
1,219 mm		 48 in
1,219 mm		 49 in
1,245 mm		 49 in
1,245 mm		 49 in
1,245 mm		 51 in
1,295 mm
Height 68 in
1,727 mm		 68 in
1,727 mm		 68 in
1,727 mm		 68 in
1,727 mm		 68 in
1,727 mm		 68 in
1,727 mm		 68 in
1,727 mm		 68 in
1,727 mm		 68 in
1,727 mm
Shipping Weight  1,722 lbs
781 kg		 1,760 lbs
798 kg		 1,834 lbs
832 kg		 2,091 lbs
949 kg		 2,335 lbs
1,059 kg		 3,061 lbs
1,388 kg		 3,129 lbs
1,419 kg		 3,820 lbs
1,733 kg		 4,069 lbs
1,846 kg
Operating Weight 1,752 lbs
795 kg		 1,800 lbs
817 kg		 1,894 lbs
859 kg		 2,157 lbs
978 kg		 2,409 lbs
1,093 kg		 3,181 lbs
1,443 kg		 3,269 lbs
1,483 kg		 3,992 lbs
1,811 kg		 4,249 lbs
1,927 kg
MCA @ 460/3/60 (amps)² 42 69 90 107 120 154 188 243 324
Chiller w/ Standard Flow Reservoir Option
Reservoir Capacity 275 gal
1,041 L		 275 gal
1,041 L		 275 gal
1,041 L		 275 gal
1,041 L		 450 gal
1,703 L		 450 gal
1,703 L		 700 gal
2,650 L		 700 gal
2,650 L		 1,000 gal
3,785 L
Process / Chiller Pump 5/1.5 hp
3.7/1.1 kW		 7.5/2 hp
5.6/1.5 kW		 10/2 hp
7.5/1.5 kW		 10/3 hp
7.5/2.2 kW		 10/3 hp
7.5/2.2 kW		 15/3 hp
11.2/2.2 kW		 15/5 hp
11.2/3.7 kW

20/7.5 hp
14.9/5.6 kW

 25/10 hp
18.6/7.5 kW
Process Connection Size (in) 2 2.5 2.5 3 3 4 4 4 6
Length  123 in
3,124 mm		 123 in
3,124 mm		 123 in
3,124 mm		 123 in
3,124 mm		 135 in
3,429 mm		 135 in
3,429 mm		 135 in
3,429 mm		 135 in
3,429 mm		 148 in
3,759 mm
Width 66 in
1,676 mm		 66 in
1,676 mm		 67 in
1,702 mm		 68 in
1,727 mm		 71 in
1,803 mm		 99 in
2,515 mm		 99 in
2,515 mm		 98 in
2,489 mm		 101 in
2,565 mm
Height 72 in
1,829 mm		 72 in
1,829 mm		 72 in
1,829 mm		 75 in
1,905 mm		 75 in
1,905 mm		 75 in
1,905 mm		 78 in
1,981 mm		 79 in
2,006 mm		 90 in
2,286 mm
Shipping Weight  3,335 lbs
1,513 kg		 3,634 lbs
1,648 kg		 3,624 lbs
1,644 kg		 3,814 lbs
1,730 kg		 4,224 lbs
1,916 kg		 5,040 lbs
2,286 kg		 5,628 lbs
2,553 kg		 6,478 lbs
2,938 kg		 7,499 lbs
3,402 kg
Operating Weight 5,629 lbs
2,553 kg		 5,928 lbs
2,689 kg		 5,918 lbs
2,684 kg		 6,109 lbs
2,771 kg		 7,978 lbs
3,619 kg		 8,794 lbs
3,989 kg		 11,467 lbs
5,201 kg		 12,317 lbs
5,587 kg		 15,841 lbs
7,186 kg
MCA @ 460/3/60(amps)² 53 84 108 126 139 180 217 278 372
Chiller with High Flow Reservoir Option
Reservoir Capacity 400 gal
1,514 L		 400 gal
1,514 L		 400 gal
1,514 L		 400 gal
1,514 L		 650 gal
2,416 L		 650 gal
2,416 L		 1,000 gal
3,785 L		 1,000 gal
3,785 L		 1,000 gal
3,785 L
Process / Chiller Pump 10/1.5 hp
7.5/1.2 kW		 10/2 hp
7.5/1.5 kW		 15/2 hp
11.2/1.5 kW		 15/3 hp
11.2/2.2 kW		 20/3 hp
14.9/2.2 kW		 25/3 hp
18.6/2.2 kW		 30/5 hp
22.4/3.7 kW		 40/7.5 hp
30/5.6 kW		 40/10 hp
30/7.5 kW
Process Connection Size (in) 2.5 3 4 4 4 6 6 6 6
Length 123 in
3,124 mm		 123 in
3,124 mm		 123 in
3,124 mm		 123 in
3,124 mm		 135 in
3,429 mm		 135 in
3,429 mm		 135 in
3,429 mm		 135 in
3,429 mm		 148 in
3,759 mm
Width 66 in
1,676 mm		 66 in
1,676 mm		 67 in
1,702 mm		 68 in
1,727 mm		 71 in
1,803 mm		 99 in
2,515 mm		 99 in
2,515 mm		 98 in
2,489 mm		 101 in
2,565 mm
Height 72 in
1,829 mm		 72 in
1,829 mm		 72 in
1,829 mm		 75 in
1,905 mm		 75 in
1,905 mm		 75 in
1,905 mm		 78 in
1,981 mm		 78 in
1,981 mm

 90 in
2,286 mm
Shipping Weight 3,850 lbs
1,746 kg		 4,200 lbs
1,950 kg		 4,400 lbs
1,996 kg		 4,550 lbs
2,064 kg		 5,050 lbs
2,291 kg		 6,250 lbs
2,835 kg		 7,300 lbs
3,311 kg		 8,100 lbs
3,674 kg		 10,300 lbs
4,672 kg
Operating Weight 7,200 lbs
3,266 kg		 7,550 lbs
3,425 kg		 7,750 lbs
3,515 kg		 7,900 lbs
3,583 kg		 10,500 lbs
4,763 kg		 11,700 lbs
5,307 kg		 15,650 lbs
7,099 kg		 16,450 lbs
7,462 kg		 18,650 lbs
8,460 kg
MCA @ 460/3/60(amps)² 61 87 115 133 152 193 236 292 390

1Cooling capacity when cooling water with 50°F (10°C) set point, 60°F (16°C) return, 95°F (35°C) condenser water, R-410A or R-454B refrigerant.
2MCA is Minimum Circuit Amps under full load, used for minimum wire size requirement.

Remote Air-Cooled Single-Circuit Condenser General Data
  KCM014 KCL023 KCL030 KCL037 KCL045 KCL056 KCL068 KCL095 KCL110
Chiller Model Used With TSER10S TSER15S TSER20S TSER25S TSER30S TSER40S TSER50S TSER60S TSER80S
Number of Fans 2 2 2 2 3 3 4 5 6
Length  83 in
2,108 mm		 113 in
2,870 mm		 113 in
2,870 mm		 113 in
2,870 mm		 168 in
4,267 mm		 168 in
4,267 mm		 223 in
5,664 mm		 278 in
7,061 mm		 333 in
8,458 mm
Width 43 in
1,092 mm		 45 in
1,143 mm		 45 in
1,143 mm		 45 in
1,143 mm		 45 in
1,143 mm		 45 in
1,143 mm		 45 in
1,143 mm		 45 in
1,143 mm		 45 in
1,143 mm
Height 48 in
1,219 mm		 54 in
1,372 mm		 54 in
1,372 mm		 54 in
1,372 mm		 54 in
1,372 mm		 54 in
1,372 mm		 54 in
1,372 mm		 54 in
1,372 mm		 54 in
1,372 mm
Shipping Weight  415 lbs
188 kg		 680 lbs
308 kg		 720 lbs
327 kg		 1,050 lbs
476 kg		 1,075 lbs
488 kg		 1,450 lbs
658 kg		 1,475 lbs
669 kg		 1,950 lbs
885 kg		 2,300 lbs
1,043 kg
Operating Weight (lbs) Operating weight varies base on system refrigeration charge and operating conditions
MCA @ 460/3/60 (amps)¹
 3 7 7 7 10 10 16 16 21
Refrigerant Inlet (in) 1 3/8 2 1/8 2 1/8 2 1/8 2 5/8 2 5/8 2 5/8 3 1/8 3 1/8
Refrigerant Outlet (in) 1 1/8 1 3/8 1 5/8 1 5/8 1 5/8 2 1/8 2 1/8 2 5/8 2 5/8

1MCA is Minimum Circuit Amps, used for minimum wire size requirements.

Remote Air-Cooled Dual-Circuit Condenser General Data
  KCM034 KCL047 KCL060 KCL074 KCL090 KCL112 KCL137 KCL190 KCL224
Chiller Model Used With TSER20D TSER30D TSER40D TSER50D TSER60D TSER80D TSER100D TSER120D TSER160D
Number of Fans 4 4 4 4 6 6 8 10 12
Length 87 in
2,210 mm		 113 in
2,870 mm		 113 in
2,870 mm		 113 in
2,870 mm		 168 in
4,267 mm		 168 in
4,267 mm		 223 in
5,664 mm		 278 in
7,061 mm		 333 in
8,458 mm
Width  83 in
2,108 mm		 87 in
2,210 mm		 87 in
2,210 mm		 87 in
2,210 mm		 87 in
2,210 mm		 87 in
2,210 mm		 87 in
2,210 mm		 87 in
2,210 mm		 87 in
2,210 mm
Height  48 in
1,219 mm		 54 in
1,372 mm		 54 in
1,372 mm		 54 in
1,372 mm		 54 in
1,372 mm		 54 in
1,372 mm		 54 in
1,372 mm		 54 in
1,372 mm		 54 in
1,372 mm
Shipping Weight 830 lbs
377 kg		 1,175 lbs
533 kg		 1,525 lbs
692 kg		 1,525 lbs
692 kg		 2,000 lbs
907 kg		 2,275 lbs
1,032 kg		 2,800 lbs
1,270 kg		 3,700 lbs
1,678 kg		 4,400 lbs
1,996 kg
Operating Weight (lbs) Operating weight varies base on system refrigeration charge and operating conditions
MCA @ 460/3/60 (amps)¹ 5 16 16 16 21 21 31 36 46
Refrigeration Inlet(in) 1 5/8 2 1/8 2 1/8 2 1/8 2 1/8 2 5/8 2 5/8 3 1/8 3 1/8
Refrigeration Outlet(in) 1 1/8 1 3/8 1 5/8 1 5/8 1 5/8 2 1/8 2 1/8 2 5/8 2 5/8

1MCA is Minimum Circuit Amps, used for minimum wire size requirements.

Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.

Related Products

TC Series 60 to 800 Ton

TC Series 60 to 800 Ton

TC Series Centrifugal central chillers use revolutionary, frictionless, magnetic bearing compressors to deliver optimum chiller performance.

Learn More
TCF Series 50 & 100 Ton

TCF Series 50 & 100 Ton

TCF Series central chillers use a Turborcor variable compressor to deliver one of the most energy efficient central chillers on the market.

Learn More
TSE with Tank 10 to 160 Ton

TSE with Tank 10 to 160 Ton

Accuchiller TSE Series central chiller with tank integrates a chiller with a complete process pumping system and reservoir in one package to minimize floor space.

Learn More
KSE Series 40 to 720 Ton

KSE Series 40 to 720 Ton

KSE Series industrial outdoor air-cooled chillers feature a compact, all-in-one package designed to maximize usable space.

Learn More
30 Series 60 to 500 Ton

30 Series 60 to 500 Ton

Thermal Care outdoor central chillers come with either air-cooled scroll or rotary screw compressors, with tonnage ranging from 140 to 490 tons.

Learn More
FT Series 38 to 120 Ton

FT Series 38 to 120 Ton

FT Series towers are carefully engineered with the optimum combination of heat transfer media, uniform air flow and even water distribution.

Learn More
FC Series 100 to 240 Ton

FC Series 100 to 240 Ton

FC cooling towers (100-240 ton) from Thermal Care are designed for outdoor use in industrial manufacturing locations.

Learn More
Ready to Get Started?
application information
