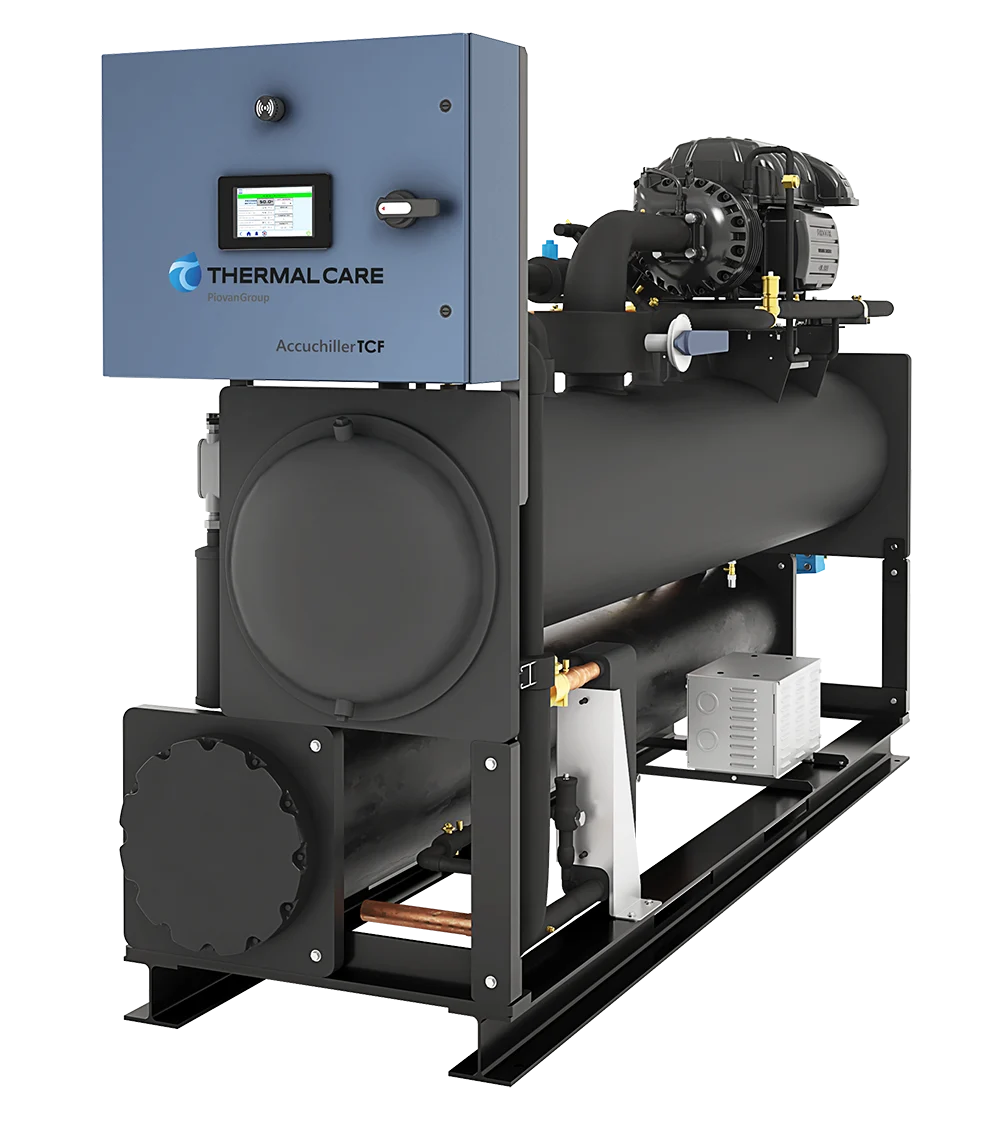

50 Ton Water Cooled Centrifugal Compressor Chiller
TCF central chillers combine the efficiencies of both a hybrid film evaporator and a Turbocor variable speed centrifugal compressor to deliver optimum full and part load efficiencies. The result is one of the most energy efficient central chillers ever built.
-
Single Turbocor
Compressor -
Variable Speed
Centrifugal Compressor -
Green Refrigerant
GWP < 700 -
Single Independent
Refrigerant Circuit
Benefits of the TCFW375 Series Industrial Chiller Features
Direct-drive centrifugal compressor continuously adjusts speed to match load - reducing energy consumption.
Provides the most efficient heat transfer, while minimizing refrigerant charge requirements.
A magnetic field levitates the drive shaft and eliminates friction and noise. No more conventional bearings!
Low GWP refrigerant, with low toxicity and low flamability. Approved for use in public spaces.
Flexible system design, with expansion capabilities up to over 600 tons, using up to six chillers.
Overview
- Water cooled single circuit model
- Advanced PLC System maintains stable and reliable operation of the chiller
- Hybrid film evaporator for the most efficient heat transfer
- Direct-drive variable-speed Turbocor centrifugal compressor technology continuously adjusts speed to match load and reduce operating costs
- C-UL 508A listed and labeled industrial control panel
- Rotary circuit breaker for compressor
- Single point connection for electrical hookup at control cabinet
- Only one major moving part - the compressor impeller which is used to compress gas and provides the highest full load efficiency and less energy use.
Integrated Variable Speed Drive Motor Control
- Enhances temperature control capability for partial load performance.
- Soft-start control reduces peak energy demand and extends motor life by lowering initial current inrush at start-up
- Lowest noise level; whisper quiet sound levels with 74 dBA and virtually no structure-born vibration
Magnetic “Friction-Free” Bearings
- Equipment life is extended since there is no contact with surfaces as the shaft rotates
- Compressor senses a power failure as a normal shutdown. Internal capacitors and rotational energy allow the motor to become a generator and provide a fail-safe shutdown.
- Compressor shaft rests on a graphite-lined touchdown bearing when not in operation
Oil Free Operation
- Eliminates oil management system and all related maintenance costs
- No potential oil contamination of refrigerant
- No compressor failure due to oil contamination
- Lower energy required can save up to 40% in annual operating costs when compared to screw-type compressor
- Adaptive control maximizes operational performance
- Provides extensive sensing capabilities and monitors compressor bearing and shaft positions six million times per minute
- Communications package allows for remote diagnostics of the chiller
- Built-in 24 VDC control circuitry
Integrated TCF PLC Control
- Adaptive control maximizes operational performance
- Provides extensive sensing capabilities and monitors compressor bearing and shaft positions six million times per minute
- Communications package allows for remote diagnostics of the chiller
- Built-in 24 VDC control circuitry
TCFW375 Additional Features
- Modular expansion to over 300 tons (1,055 kW) using up to six chillers
- Unit has a slim footprint and can fit through a 34” opening
- Turbocor TTH375 highlift variable speed centrifugal compressor with oil-free, magnetic bearings is ideal for ice rinks
- R-513A Class A refrigerant features low toxicity and low flammability
- Lower Global Warming Potential (GWP)* - Featuring OpteonTM XP10 (R-513A) Refrigerant
*In comparison to HCFC-22.
NHL and the NHL Shield are registered trademarks of the National Hockey League. ©NHL 2022. All rights reserved.
Click and rotate the TCF series chillerResources
Brochures
Specifications
Product Catalog
PLC Control System
A powerful PLC control system monitors, controls, and maintains stable and reliable chiller performance.
Specification Tables
Water Cooled Condenser Single - Circuit Chiller General Data
| Model | TCFW375 |
|---|---|
| Cooling Capacity Range | 45 to 55 ton (158 to 193 kw)2 |
| Refrigerant Type | R-513A |
| Set Point Range | 10 to 55°F (-12 to -4°C) |
| Intended Operating Range | 10 to 15°F (-12 to -9°C) |
| Compressor (qty) | 1 |
| Process Fluid | 40% Ethylene Glycol |
| Evaporator Flow |
467 gpm @ 10°F | 427 gpm @ 15°F |
| Shipping Weight | 6,000 lbs (2,722 kg) |
| Operating Weight | 5,600 lbs (2,540 kg) |
| MCA @ 460/3/60 (amps)3 | 229 |
| MOP @ 460/3/60 (amps)4 | 400 |
| MCA @ 575/3/60 (amps)3 | 184 |
| MOP @ 575/3/60 (amps)4 | 300 |
1Cooling capacity when cooling water with 50°F (10°C) set point, 60°F (16°C) return, and 85°F (29°C) condenser water, R134a or 513A refrigerant.
2Cooling capacity when cooling water with 13°F (-6°C) set point, 16°F (-9°C) return, and 85°F (29°C) condenser water.
3MCA is Minimum Circuit Amps under full load, used for minimum wire size requirement.
4MOP is Maximum Overcurrent Protection, used for sizing main power protection device.
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
Energy Efficiency Comparison - TCFW350.
TCFW350 variable speed centrifugal compresssor chiller vs a typical flooded evaporator, fixed-speed screw compressor chiller.
