AryaDew
System Accessories

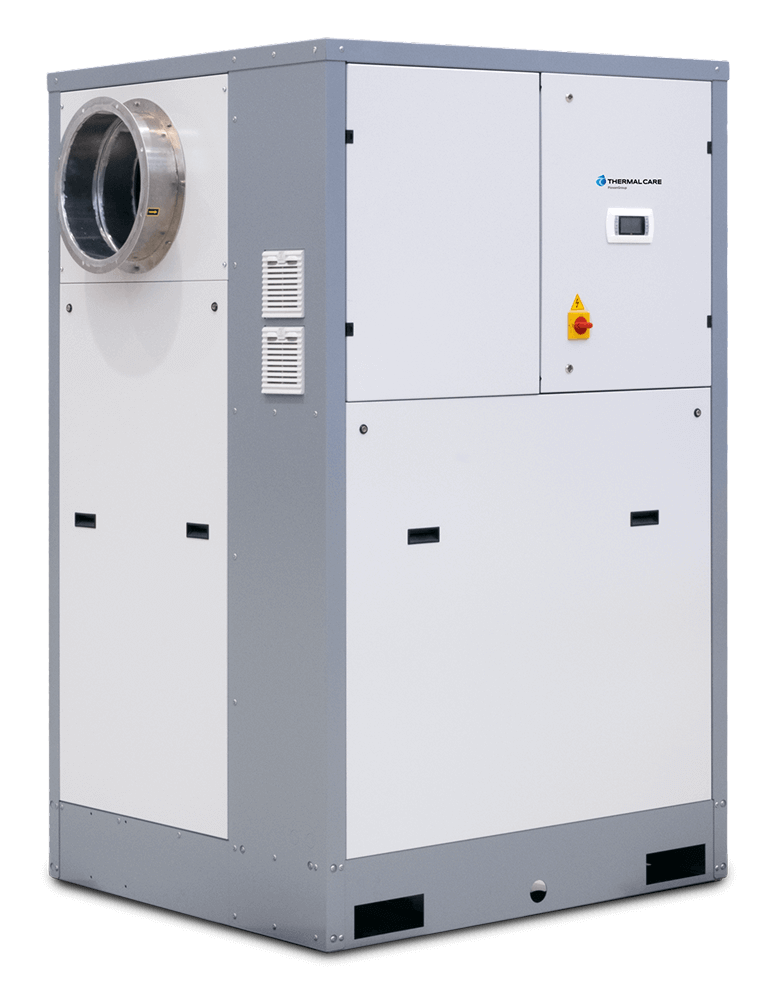

Discover the AryaDew dryer by Thermal Care, engineered for revolutionary energy efficiency and optimal performance in PET preform production, high-speed injection molding, blow molding, and thermoforming. Leveraging closed-loop refrigeration cycle technology, AryaDew slashes operating costs by up to 40% compared to traditional desiccant wheel systems, with payback in under two years. Its smart adaptive air flow (SAF) and high-pressure, variable-speed fans maintain a constant Dew Point, preventing condensation and ensuring consistent product quality. Designed for seamless Industry 4.0 integration, AryaDew simplifies installation with no need for water pre-cooling, further lowering costs. Minimal, simplified maintenance maximizes uptime, while the system’s energy efficiency helps reduce your company’s carbon footprint. Choose AryaDew for reliable, cost-effective, and eco-friendly drying solutions in modern manufacturing.
Suitable for:
- Production of PET preforms
- High-speed injection moulding
- Packaging moulding
- Blow moulding
-
Closed loop
-
Variable-speed fans
-
Adaptive air flow
-
Rapid ROI
Benefits of the AryaDew Features
All service points accessible from the front for quick, simplified maintenance.
Seamlessly connects to Winfactory 4.0 and Winflo for real-time monitoring and diagnostics.
Automatically adjusts airflow to maintain a constant dew point.
Up to 70% lower energy use no desiccant wheel required.
Faster installation, lower utility costs, and reduced system complexity.
Overview
- Energy saving of up to 70%
- Constant Dew Point
- Minimal and simplified maintenance
Resources
Specification Tables
| Model | Aryadew 1800 | Aryadew 2400 | Aryadew 2900 |
|---|---|---|---|
|
Minimum Dew Point |
4°C |
||
|
Air Flow |
1,800 m3h |
2,400 m3h |
2,900 m3h |
|
Maximum Power Consumption |
40.3 GPM |
||
|
Cooling Capacity¹ |
10.0 kW |
14.0 kW |
16.0 kW |
|
Input Power¹ |
3.6 kW |
3.6 kW |
4.0 kW |
|
Maximum Pressure |
1,300 Pa |
1,300 Pa |
1,300 Pa |
|
Fan Motor Type |
EC |
||
|
Fan Input Power |
2.3 kW |
2.3 kW |
2.3 kW |
|
EER² |
2.78 kW |
3.89 kW |
4.0 kW |
|
Compressor Number |
1 |
||
|
Cooling Capacity Steps |
Variable Speed |
||
|
Min/Max Water Flow |
0.5 m3h |
0.5 m3h |
0.5 m3h |
|
Min/Max Pressure Flow |
0.236 kPa |
0.236 kPa |
0.236 kPa |
|
Water Connections |
1" Female |
||
|
Drain Connections |
1.5" Male |
||
|
Main Supply (V/Ph/Hz) |
400/3/50 – 460/3/60 – 380/3/60 |
||
|
Full Load Power at the Maximum Admissible Conditions (FLI) |
10.5 kW |
10.5 kW |
10.5 kW |
|
Full Load Current at the Maximum Admissible Conditions (FLA) |
19.2 A |
19.2 A |
19.2 A |
|
Inrush Starting Current (IS) |
26.0 A |
26.0 A |
26.0 A |
|
Shipping Weight |
670 kg |
670 kg |
670 kg |
|
Dimensions L x W x H |
1,253 x 1,462 x 2,116 mm |
1,253 x 1,462 x 2,116 mm |
1,253 x 1,462 x 2,116 mm |
1In/Out condenser water temperature 30/35°C (100% water), Dry bulb temperature inside the building (around the IMM unit) 35°C, relative humidity inside the building (around the IMM unit) 80%, 80% air recirculation (cabin air) + 20% external air (building air, around the IMM unit).
2EER = Cooling capacity [kW] / (Compressors [kW] + Fans [kW]).
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
