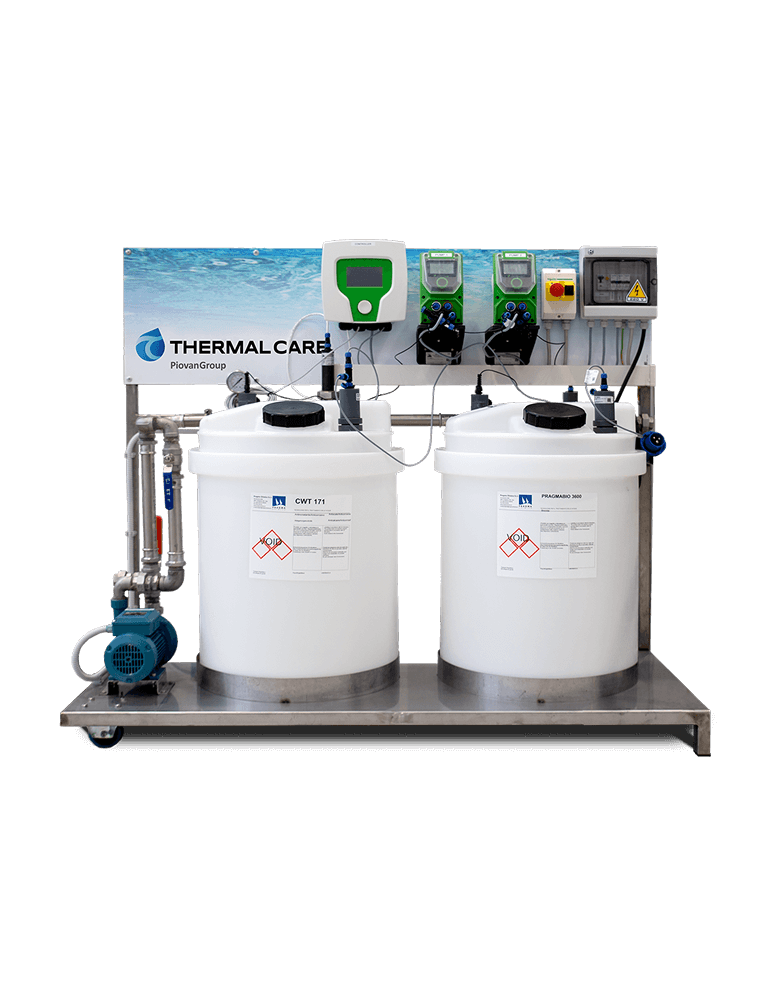

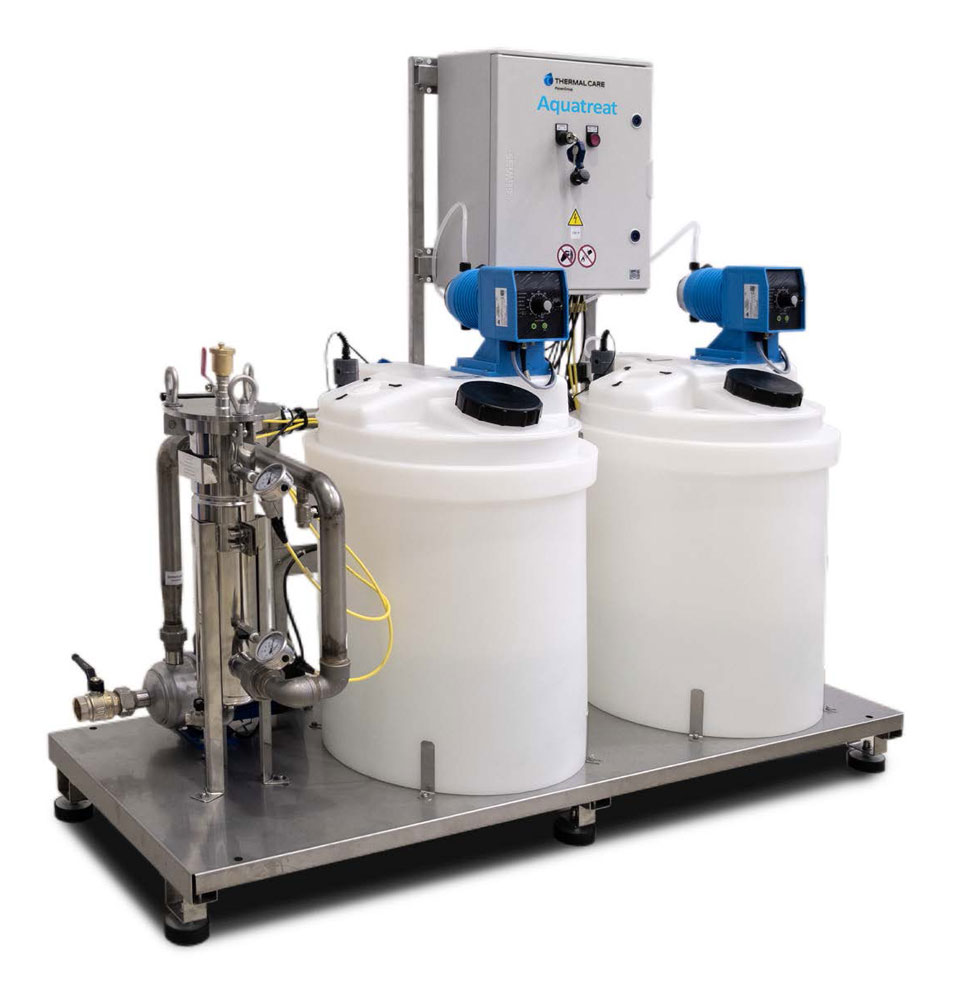

Aquatreat
System Accessories
Aquatreat is the new solution by Thermal Care for industrial process water treatment. Suitable for a variety of industrial processes, it is a highly customisable solution which allows to monitor, treat and filter the process water.
Traditional solutions for water treatment are based on polluting additives which require high disposal costs with results that are not always precise. Low quality water causes some problems in the cooling systems, such as plant downtime, efficiency losses and damage to the system components, clogged pipes and maintenance costs increase.
Good quality of the cooling water is essential to guarantee:
- maximum reliability of the cooling system
- prevention of unexpected breakages and damages
- high efficiency of the cooling system whilst keeping operating costs down
- safety of the investment
With Aquatreat it is possible to manage pH, conductivity, chlorides, sulphates, suspended solids, contaminants and much more to guarantee the correct quality of water. Deviation from the desired values allows a rapid response. Furthermore, it protects pipes from water corrosion thanks to molybdenum matrix additives.
-
Indoor installation
-
Automated water treatment
-
Easy to use
-
Environmentally friendly
Only available in: IT
Benefits of the Aquatreat Features
Real-time control for precise water quality management.
Enables quick setup, operation and maintenance checks.
Easily fits into any process cooling setup.
Protects system integrity and maximizes uptime.
Overview
- Maximise plant’s lifespan and minimise system’s operating costs
- Optimise water quality which is necessary for sustained production
- Maximise the processes of heat exchange
Resources
Brochures
Specifications
Specification Tables
| Model | Aquatreat |
|---|---|
|
Cooling Capacity |
53.1 kW |
|
Compressor Absorbed Power1 |
11.24 kW |
|
Condenser Heat Load |
64.0 kW |
|
Condenser Water Flow |
48.4 GPM |
|
Evaporator Water Flow |
40.3 GPM |
|
Evaporator Pressure Drops |
7.0 PSI |
|
Condenser Pressure Drops |
13.3 PSI |
|
EER |
16.2 |
|
Dimensions L x W x H |
1,143 x 598 x 1,560 mm |
|
Refrigerant Charge |
5.0 kg |
|
Oil Charge |
1.33 gal |
1Data is referred to In/Out evaporator water temperature 59/50°F, In/Out condenser water temperature 86/95°F.
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
