SCW 6811 68 kW
Water-Cooled Technology with Eco-Compatible R410A Refrigerant: 68 kW

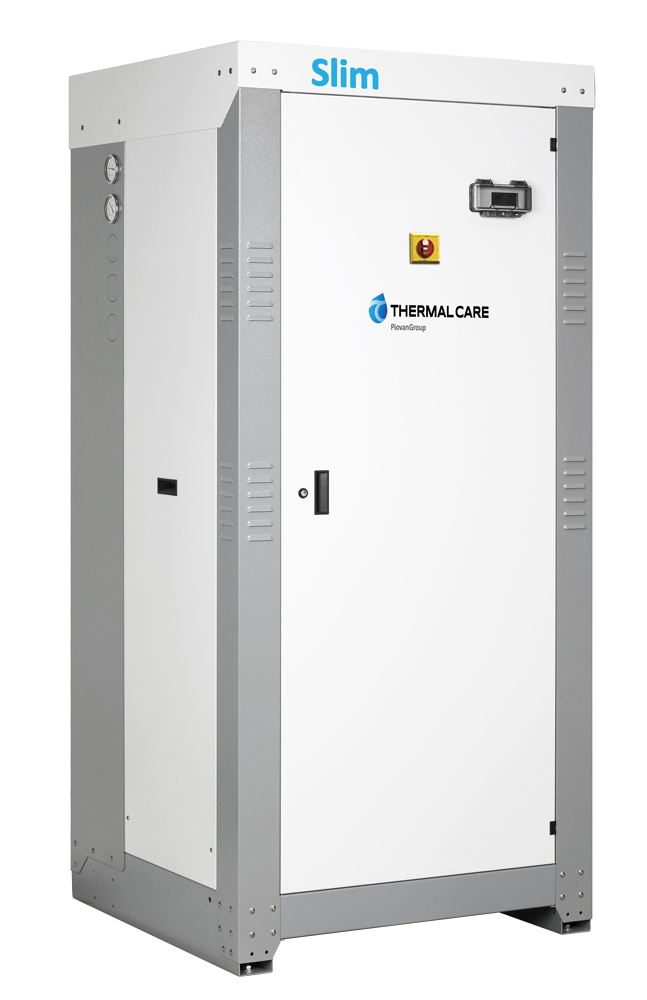

The Slim Series Water-Cooled Portable Chiller model 6811 is designed for industrial applications requiring reliable and efficient low-temperature water cooling. Offering cooling capacities of 68 kW, these units are built with scroll compressors and a single refrigeration circuit, ensuring compact size, reduced energy consumption, and low operating noise.
Operating with water condensing temperatures from 17°C to +40°C, these chillers use R410A refrigerant, an environmentally friendly solution known for high cooling performance. The system features a high-efficiency stainless steel brazed plate evaporator, an internal water circulation pump, and an insulated stainless steel open-type tank for stable operation and minimal thermal loss.
Safety and reliability are ensured through the integration of high/low pressure switches and gauges, a flow switch, and a microprocessor control system that clearly displays water temperature and alerts. The non-ferrous hydraulic circuit adds durability, while the compact design allows for simplified installation and minimal footprint.
-
Green Refrigerant
-
Indoor Installation
-
Water Temperatures
17-40°C -
Internal Water Circulation Pump
Benefits of the Slim SCW 6811 Chiller Features
Green refrigerant R410A, which offers high cooling capacity and is environmentally friendly.
Ensures optimal water flow within the system.
Provides high-efficiency heat exchange for optimal cooling performance.
Designed as an open type tank to discharge air inside the circuit during production changes, while ensuring temperature stability and minimizing thermal dispersion during operation.
For reduced energy absorption, lower noise levels and long-term efficient operation.
Enhanced safety by monitoring and controlling pressure levels.
Overview
- Eco-Friendly Scroll Compressor Design: Quiet, energy-efficient performance with R410A refrigerant.
- Stable Operation & Compact Footprint: Stainless steel tank and internal pump ensure thermal stability and space-saving installation.
- Smart & Safe Control: Microprocessor management with full alarm display and pressure monitoring for safe, user-friendly operation.
Available Options
- Overflow security kit
- Serial interface Modbus
- Acoustic alarm with lamp
- Hot gas by-pass for extremely
precise water temperature - Mechanical water filter
- Condensation control valve
Resources
Brochures
Specifications
Specification Tables
Technical Data
| Model | SCW 6811 |
|---|---|
|
Cooling Capacity1 |
68 kW 51.2 kW |
|
Absorbed Power3 |
10.6 kW |
|
Condenser
Water Flow5 |
12 m3/h |
|
Max Power Installed with Low Pressure Pump |
19.49 kW |
|
Max Load Current Low Pressure Pump |
33.3 A |
|
Max Power Installed with Middle Pressure Pump |
19.24 kW |
|
Max Load Current Middle Pressure Pump |
32.7 A |
|
Max Power Installed with High Pressure Pump |
21.24 kW |
|
Max Load Current High Pressure Pump |
35.9 A |
|
Water Pump Low Pressure |
4.8 – 15 m3/h |
|
Water Pump Middle Pressure |
3.6 – 15 m3/h |
|
Water Pump High Pressure |
3.6 – 12.6 m3/h |
|
Process Water Connections In/Out (Threaded) |
1.5" Female |
|
Condensing Water Connections In/Out (Threaded) |
1.5" Male |
|
Operating Weight |
385 kg |
|
Dimensions L x W x H |
960 x 850 x 1,935 mm |
1In/Out evaporator water temperature 20/15°C (100% water), condensed water temperature 30°C.
2In/Out evaporator water temperature 12/7°C (100% water), condensed water temperature 30°C.
3
Evaporator
temperature 15°C, condensed water temperature 30°C.
4
Evaporator
temperature 7°C, condensed water temperature 30°C.
5
Condenser
temperature 15°C.
6
Condenser
temperature 7°C.
The data is referred to the following conditions: R410A gas, 400/3/50Hz power supply, minimum condensing water temperature +17°C
and working in proper conditions according to Thermal Care's instruction manual.
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
