SCA 1911-4311
Cooling Capacity Range: from 19 kW to 43 kW

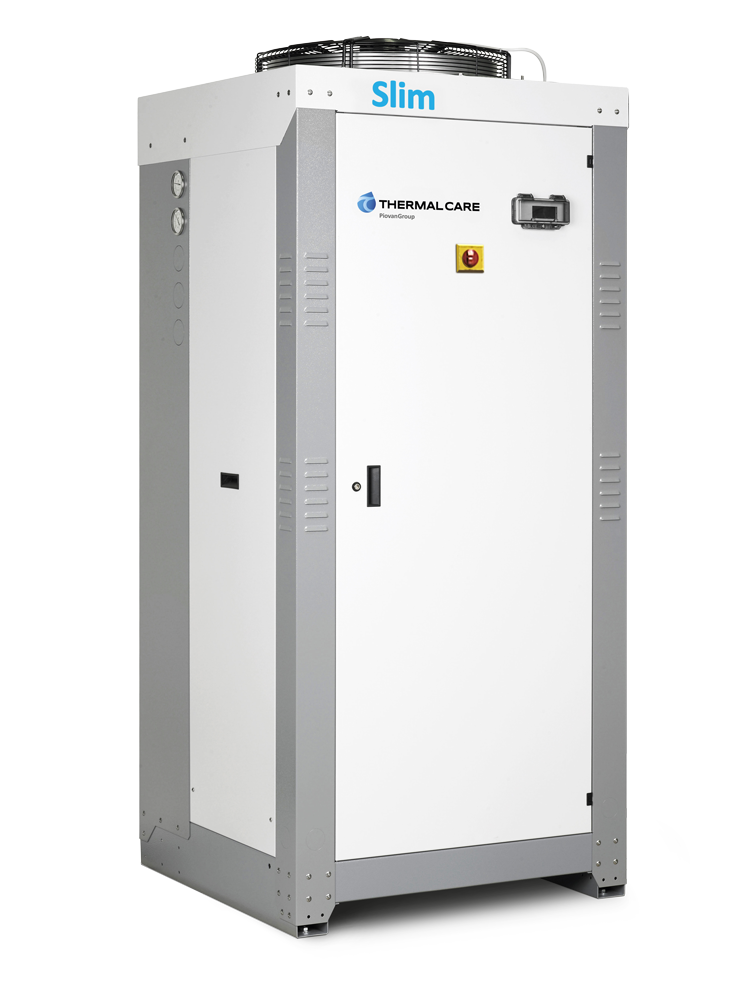

The Slim SCA 1911 through 4311 models represent a comprehensive line of air-cooled portable chillers engineered to deliver low-temperature water regardless of environmental conditions. Covering a wide cooling capacity range from 19 kW to 43 kW, these units are optimized for flexibility, energy efficiency, and performance across all industrial sectors.
Each model in the Slim SCA Series is equipped with scroll compressors, leveraging their low-noise operation and lower energy consumption. The use of green refrigerant R410A ensures not only high performance but also eco-compatibility.
-
Green Refrigerant
ODP = 0 -
Scroll
Compressor
-
Indoor Installation
-
High-Head Pump
Benefits of the Slim SCA1911-4311 Chiller Features
Provides reduced energy absorption and lower noise levels while ensuring efficient cooling performance.
For high-efficiency heat exchange.
Maintains temperature stability and reduces thermal dispersion, with an open type design to discharge air during production changes.
Utilizes eco-compatible refrigerant R410A, which has a high cooling capacity.
Overview
- Stainless steel brazed plate evaporators for efficient heat exchange
- Internal water circulation pumps for optimal flow management
- Open-type insulated stainless steel tanks that enhance temperature stability and allow air release during production shifts
- Advanced safety systems, including pressure switches, gauges, flow switches, and metal filters
- Microprocessor-based control panels that provide real-time monitoring of water temperature and operational alarms
- Non-ferrous water circuits for durability and corrosion resistance
- Compact footprints, making them ideal for space-constrained environments
Available Options
- Overflow security kit
- Serial interface Modbus
- Acoustic alarm with lamp
- Hot gas by-pass for precise water temperature control
- Outdoor version (available on select models)
- Mechanical water filter
Resources
Brochures
Specifications
Specification Tables
| Model | SCA 1911 | SCA 3211 | SCA 4311 |
|---|---|---|---|
|
Cooling Capacity1 |
19 kW |
32.1 kW |
42.7 kW |
|
Absorbed Power3 |
4.02 kW |
6.85 kW |
9.28 kW |
|
Max Absorbed Power with Low Pressure Pump |
7.06 kW |
11.92 kW |
15.45 kW |
|
Max Load Current with Low Pressure Pump |
12.6 A |
22 A |
27.6 A |
|
Max Absorbed Power with Middle Pressure Pump |
7.24 kW |
11.89 kW |
15.55 kW |
|
Max Load Current with Middle Pressure Pump |
12.9 A |
22.9 A |
27.8 A |
|
Max Absorbed Power with High Pressure Pump |
8.26 kW |
13.04 kW |
16.7 kW |
|
Max Load Current with High Pressure Pump |
14.6 A |
24.7 A |
29.6 A |
|
Water Pump Low Pressure |
1.2 – 4.8 m3/h |
1.2 – 6.6 m3/h |
3 – 9.6 m3/h |
|
Water Pump Middle Pressure |
1.2 – 4.8 m3/h |
2.4 – 9 m3/h |
2.4 – 9 m3/h |
|
Water Pump High Pressure |
1.2 – 4.8 m3/h |
2.4 – 9 m3/h |
2.4 – 9 m3/h |
|
Fan |
1 x 5.7 m3/h |
1 x 10.2 m3/h |
1 x 10.0 m3/h |
|
Water Connections In/Out (Threaded) |
1" Female |
1.25" Female |
1.25" Female |
|
Operating Weight |
320 kg |
400 kg |
420 kg |
|
Dimensions L x W x H |
850 x 900 x 2,050 mm |
850 x 900 x 2,050 mm |
850 x 900 x 2,050 mm |
1Water evaporator out 15°C (100% water), ambient temperature 25°C.
2Water evaporator out 7°C (100% water), ambient temperature 35°C.
3
Evaporator
temperature 15°C, ambient temperature 25°C.
4
Evaporator
temperature 7°C, ambient temperature 35°C.
Data is related to the following conditions: R410A gas; 400/3/50Hz power supply and working proper conditions according to Thermal Care's instruction manual.
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
