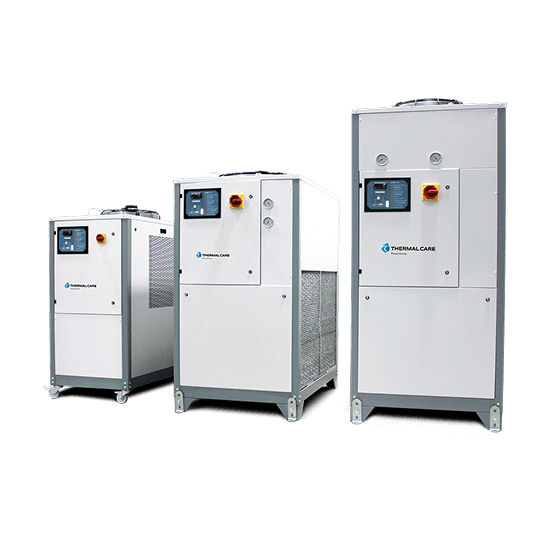

CH Series CH50-480 6.6 to 57 kW
Cooling capacity: 6.6 to 57 kW
The CH Series of portable chillers provide low temperature water independent from any ambient condition. The range, designed for application in all the industrial sectors, assures maximum flexibility and energy efficient functioning.
-
Scroll
Compressor
-
Indoor Installation
-
Green Refrigerant
-
Internal Hydraulic Kit
Benefits of the CH Series Industrial Chiller Features
Reliable, Safe & Easy to Monitor - Standard safety and control components (high/low pressure switches, pressure gauges, condenser filters, flow-switch) help protect the system and ensure safe, stable, and monitored operation.
Environmentally Friendly & Compliant - CH Series uses R407C, a more environmentally conscious refrigerant, aligning with modern standards and reducing ozone depletion potential compared to older refrigerants.
Quiet, efficient, and energy-smart - scroll technology reduces vibration, lowers noise, and consumes less energy than traditional compressors.
The brazed-plate evaporator ensures efficient heat exchange in a compact, robust form factor - yielding rapid, effective cooldown while maintaining durability.
Overview
- Flexible functioning: ambient air temperatures up to +40°C
- Eco-compatible: green refrigerant R407C
- Reduced energy absorption and lower noise levels: scroll compressors
- High efficient heat exchange: stainless steel brazed plate evaporator
- Optimal flow: internal water circulation pump
- Temperature stability and low thermal dispersion: internal galvanized and insulated tank
- Safe functioning: high and low pressure switches, high and low pressure gauges, metal filters on condensers, flow switch
- Easy to use: microprocessor control displaying key water temperature and alarms
Available Options
- Outdoor installation versions
- Stainless steel tank
- High pressure stainless steel pump
- Automatic water by-pass valve
- Hot gas by-pass for extremely precise water temperature
- Mechanical water filter
Resources
Brochures
Specifications
Specification Tables
| Model | CH 50 | CH 90 | CH 180 | CH 280 | CH 380 | CH 480 |
|---|---|---|---|---|---|---|
| Cooling Capacity 1 Cooling Capacity 2 |
6.6 kW 6.6 kW |
10.2 kW 10.2 kW |
22 kW 22 kW |
37.6 kW 37.6 kW |
47.4 kW 47.4 kW |
57 kW 57 kW |
| Nominal
Compressor
Absorbed Power |
1.3 kW | 2.2 kW | 4.2 kW | 8 kW | 9.9 kW | 11.9 kW |
| Standard Pump |
1.2 - 4.8 m³ /h 2.2 - 3 bar 0.55 kW |
1.2 - 4.8 m³ /h 2.2 - 3 bar 0.55 kW |
1.2 - 4.8 m³ /h 2.8 - 4.5 bar 0.90 kW |
3.6 - 6 m³ /h 3.0 - 3.6 bar 1.10 kW |
3.6 - 7.2 m³ /h 3.7 - 4.6 bar 1.55 kW |
4.8 - 9.6 m³ /h 3.3 - 4 bar 1.85 kW |
| High Pressure Pump |
1.2 - 8.4 m³ /h 4.1 - 6 bar 1.85 kW |
1.2 - 8.4 m³ /h 4.1 - 6 bar 1.85 kW |
1.2 - 8.4 m³ /h 4.1 - 6 bar 1.85 kW |
1.2 - 12.0 m³ /h 4.6 - 6.1 bar 3 kW |
1.2 - 12.0 m³ /h 4.6 - 6.1 bar 3 kW |
1.2 - 12.0 m³ /h 4.6 - 6.1 bar 3 kW |
| Total Installed Power (Standard Pump) |
3.3 kW | 4.4 kW | 8.8 kW | 14.5 kW | 18.8 kW | 22.7 kW |
| Total Installed Power (High Pressure Pump) |
5.1 kW | 6.2 kW | 10.1 kW | 17.3 kW | 21.1 kW | 24.5 kW |
| Tank Capacity | 70 dm³ | 70 dm³ | 100 dm³ | 100 dm | 150 dm | 150 dm |
| Water Connections Threaded (In/Out) |
0.75" Female | 0.75" Female | 1" Female | 1" Female | 1.25" Female | 1.25" Female |
| Operating Weight | 230 kg | 240 kg | 295 kg | 370 kg | 460 kg | 500 kg |
| Dimensions L x W x H |
677 x 1,007 x 1,500 mm |
677 x 1,007 x 1,500 mm |
885 x 1,220 x 1,715 mm |
885 x 1,220 x 1,715 mm |
886 x 1,409 x 2,010 mm |
886 x 1,409 x 2,010 mm |
1In/Out evaporator water temperature 20/15°C.
2In/Out ambient temperature 25°C.
The data refer to the following conditions: R407C refrigerant; 15°C outlet water temperature; 25°C ambient air temperature; 400V/3/50Hz.
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
