Dual refrigeration circuit, 230 kW to 420 kW
KSA Series industrial outdoor air-cooled chillers feature a compact, all-in-one package designed to minimize installation cost, maximize usable space and lower electric bills. Designed for harsh outdoor environments KSA Series chillers require no options to operate within the standard -20°C to 52°C ambient environment conditions. Standard fluid set point temperatures of -7°C to 27°C make the KSA ideal for industrial applications. The modular design allows up to 6 refrigeration circuits to be combined into a single system for up to 2,130 kW of cooling capacity.
Chillers are available with or without integrated pumping packages, including high and low pressure pumping with dedicated stand-by and built-in pressurized and non-pressured tanks.
KSA Series chillers come standard with Dynamic Lift technology, which continuously calculates the lowest allowable refrigerant pressure for any combination of operating conditions to maximize chiller energy savings. Under steady-state process load conditions, KSA chillers provide stable process fluid temperatures within ±1.1°C.
-
Outdoor
Installation -
Green Refrigerant
ODP = 0 -
2x Tandem Scroll
Compressors -
Internal
Hydraulic Pumping Kit
Benefits of the KSA Series Industrial Chiller Features
Provides maximum performance, long life and enhanced protection from harsh process conditions.
Dual refrigeration circuits, with built-in redundancy and multiple compressors ensures efficient operation and long life.
Provide smooth, quiet operation, with high reliability. The sealed housing prevents refrigerant leaks and protects internal components from dust and moisture.
Overview
- Wide operating conditions
- Ambient Environment: -20°C to 52°C
- Process Fluid Circuit: -7°C to 27°C
- EU F-Gas compliant R-454B low-GWP refrigerant (GWP 466).
- Integral air-cooled rugged microchannel condenser for class-leading efficiency
- Innovative PLC Control System with a large high-resolution color touch-screen operator interface and an extensive list of operational information including remote monitoring
- Direct drive scroll compressors for low maintenance and energy efficiency
- Compressor staging for capacity control with optional hot gas bypass for even greater unloading capabilities
- Compressor anti-cycle and start-up timer
- Lead/lag compressor staging to alternate primary compressor
- Brazed plate evaporators maximize performance and increase resistance to costly freeze-up failures
- Standard variable-speed drive fans reduce energy usage and provide optimum part-load performance for industry-leading IPLV, all while reducing noise levels for sound-sensitive environments
- C-UL 508A listed and labeled control panel
- In-line evaporator strainers assure full evaporator performance
- Single point connection for electric hookup at control cabinet
- Electronic expansion valves
- Liquid line solenoid valves to extend compressor life
- Refrigerant sight glasses
- Liquid line filter driers with removable cores
- High and low refrigerant pressure switches
-
Alarm horn with silence button
-
3-phase power monitoring and safety protection
Available Options
- High and low pressure pumping with dedicated stand-by pump for quick and easy installation
- Rotary non-fused disconnect switch
- Hot-gas bypass minimum load capacity control
- 5-year compressor parts warranty
- Expert field start-up provided by qualified service personnel
- CONNEX 4.0 for system-wide control
PLC Control System

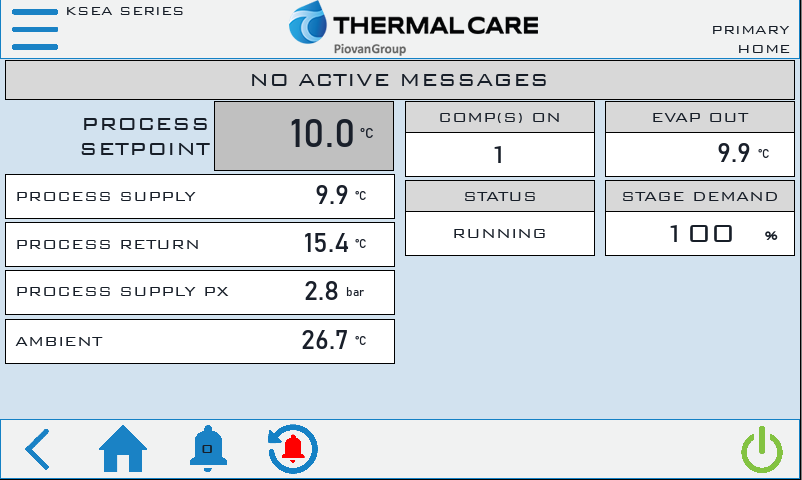

PLC controls, monitors, and maintains stable and reliable operation of the chiller.
Specification Tables
| Model | KSA0230 | KSA0290 | KSA0355 |
|---|---|---|---|
| Cooling Capacity (1) |
229.4 Kw |
291.4 Kw |
355.2 Kw |
| EER (1) | 3.27 Kw/Kw | 3.55 Kw/Kw | 3.28 Kw/Kw |
| SEPR | 6.5 | 6.98 | 6.47 |
| Set Point Range | -7 TO 27°C | -7 TO 27°C | -7 TO 27°C |
| Compressor (qty) | 4 | 4 | 4 |
| Sound Pressure @ 1 meter (2) | 69 dBa | 69 dBa | 76 dBa |
| Pump Flow | 658 L/min | 835 L/min | 1018 L/min |
| Dimensions (L × W × H) | (3,239 x 2,260 x 2,007) mm | (3,239 x 2,260 x 2,007) mm | (3,239 x 2,260 x 2,007) mm |
| Shipping Weight | 2,111 kg | 2,701 kg | 2,701 kg |
| Operating Weight | 2,156 kg | 2,796 kg | 2,796 kg |
1Cooling capacity based on 10°C leaving coolant and 35°C ambient air, or R454B refrigerant.
2Sound pressure is for the chiller unit only.
| Model | KSA0230 | KSA0290 | KSA0355 |
|---|---|---|---|
| Cooling Capacity (1) |
264.8 Kw |
338.0 Kw |
408.4 Kw |
| EER (1) | 3.07 Kw/Kw | 3.39 Kw/Kw | 3.01 Kw/Kw |
| SEPR | 5.92 | 6.27 | 5.92 |
| Set Point Range | -7 TO 27°C | -7 TO 27°C | -7 TO 27°C |
| Compressor (qty) | 4 | 4 | 4 |
| Sound Pressure @ 1 meter (2) | 72 dBa | 72 dBa | 78 dBa |
| Pump Flow | 759 L/min | 969 L/min | 1170 L/min |
| Dimensions (L × W × H) | (3,239 x 2,260 x 2,007) mm |
(4,382 x 2,260 x 2,007) mm |
(4,382 x 2,260 x 2,007) mm |
| Shipping Weight | 2,111 kg | 2,701 kg | 2,701 kg |
| Operating Weight | 2,156 kg | 2,796 kg | 2,796 kg |
1Cooling capacity based on 10°C leaving coolant and 35°C ambient air, or R454B refrigerant.
2Sound pressure is for the chiller unit only.
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
Related Products

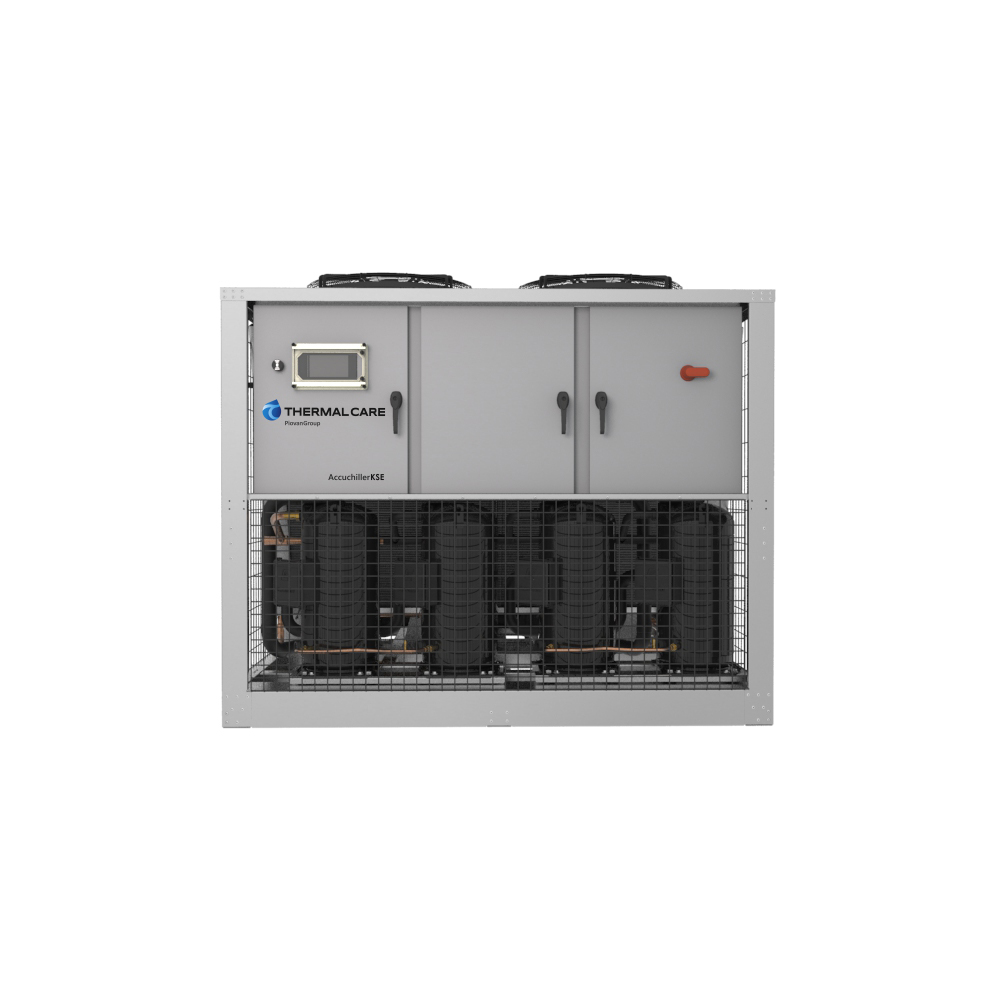

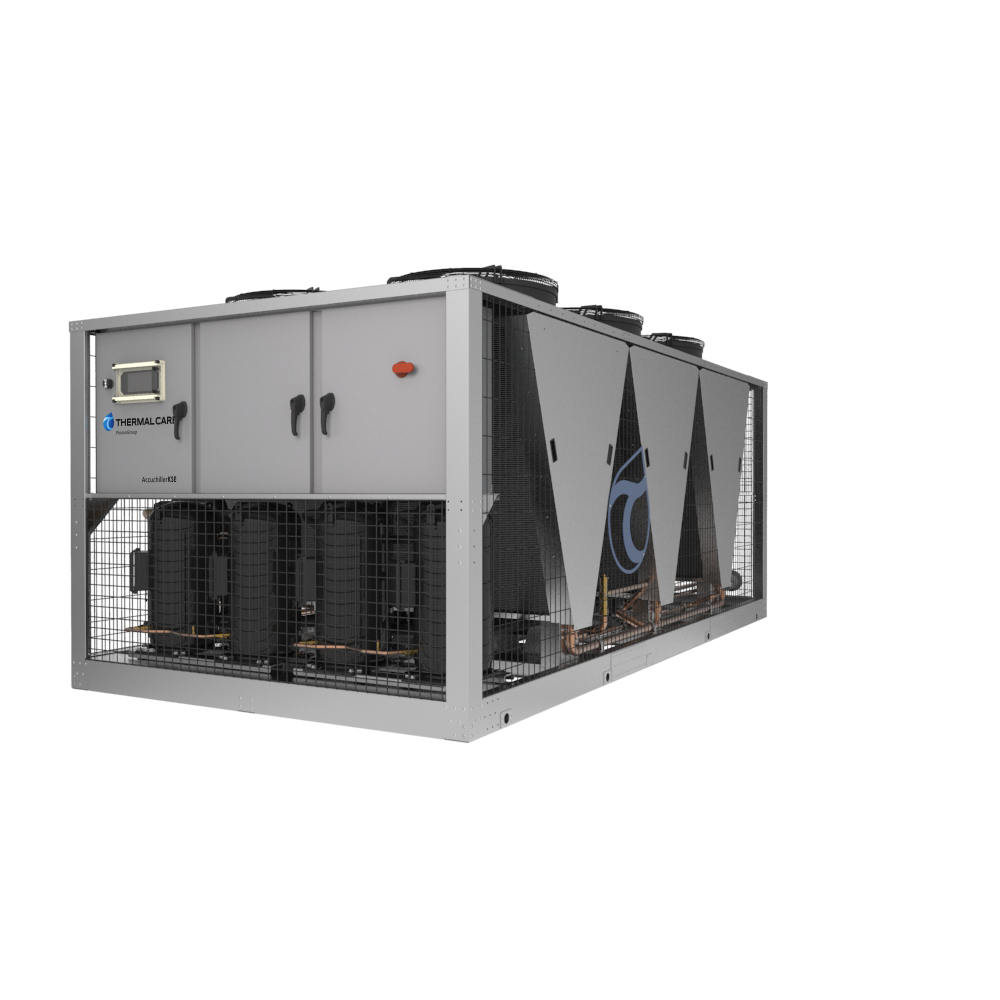

Click and rotate the image to see the KSEA120T.
