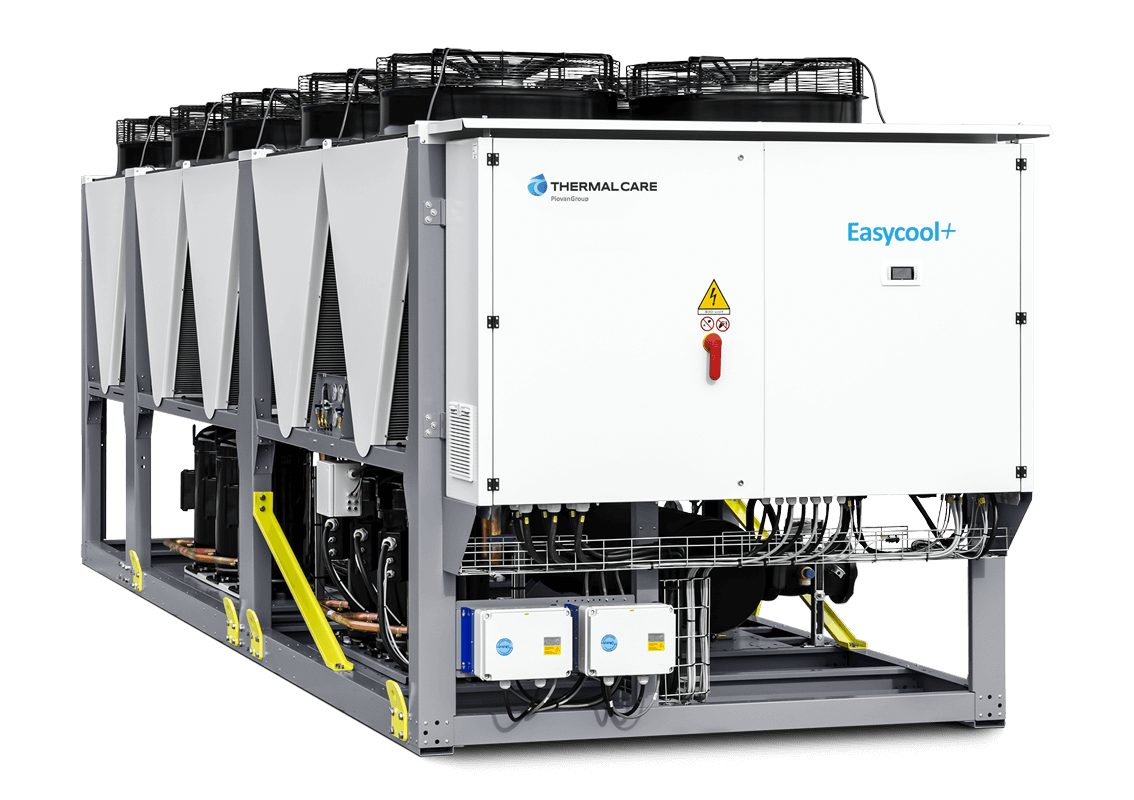

Easycool+ ECA5762-ECA9562 573 to 953 kW
Compact Chiller with 6-Scroll Compressors for 573 kW - 953 kW Applications
The Easycool+ air-cooled chiller offers reliable, energy-efficient cooling for a variety of process applications, with a 573 kW to 953 kW capacity ideal for the plastics industry, including injection molding, extrusion, and thermoforming. Its compact, robust design fits tight production spaces and ensures high uptime in continuous operations. Choose between brazed plate or shell-and-tube evaporators to suit specific cooling needs. Advanced microprocessor controls deliver precise temperature regulation, enhancing product quality and reducing waste. The Easycool+ uses environmentally responsible refrigerants to help manufacturers meet sustainability goals while maintaining low operating costs. Quiet operation and low-maintenance components minimize downtime and improve workplace comfort. With its adaptability, the Easycool+ is suitable for plastics, manufacturing, food processing, and more, making it a practical investment for manufacturers seeking stability, flexibility, and eco-friendly performance.
-
Indoor and Outdoor Installation
-
Green Refrigerant
ODP = 0 -
Tandem Scroll
Compressor -
Internal
Hydraulic Kit
Benefits of the Easycool+ ECA5762-9562 Chiller Features
Generous heat exchanging surfaces and washable coil construction provide high reliability even in conditions common to industrial environments.
Provides temperature stability and efficiency by regulating refrigerant flow to the evaporator. This ensures high precision control even at low flow rates.
Essential for the energy-saving air-cooled operation, these fans have 5 aluminum blades with maintenance-free bearings, to ensure efficient heat dissipation and contribute to the chiller’s quiet performance.
Two hermetic compressors per circuit for the excellent reliability and efficiency, while maintaining quiet operation.
The central control unit offers precise, user-friendly temperature management and system diagnostics, optimizing process stability.
Overview
- Wide Cooling Capacity Range: From 573 to 497 kW provides flexibility for a variety of process applications.
- High Energy Efficiency: Advanced scroll compressor design ensures reduced energy consumption and optimal cooling performance.
- Robust and Reliable Operation: Built with high-quality components, these chillers offer dependable performance and extended service life, ideal for demanding industrial applications.
- Space Saving Design: Streamlined footprint enables installation in areas with limited space, maximizing facility layout flexibility.
- Intuitive Digital Controls: Advanced controls provide real-time monitor- ing, alarm management, seamless operation, and quick troubleshooting. RS485 port for remote monitoring and connection.
- Quiet Operation: Optimized fan configuration and acoustic insulation minimize noise emission, supporting quieter and more comfortable work environments.
- Environmentally Friendly: High effi- ciency, especially at partial loads, and the use of eco-friendly refrigerants with low global warming potential (GWP).
- SPER Energy Index Rating Greater than 5*: High temperature process chillers.
- Warranty: 1 year parts and labor.
Available Options
- Stainless Steel AISI304 Evaporator water filter 800 micron “Y” type (threaded connection)
- Flanged connections
- Acoustic and visual alarm
- Remote display
- Additional Modbus serial card for Winfactory 4.0® Interface
Resources
Brochures
Specifications
Specification Tables
| Model | ECA5762 HT | ECA6762 HT | ECA7562 HT | ECA8362 HT | ECA8762 HT | ECA9562 HT |
|---|---|---|---|---|---|---|
|
Cooling Capacity1 Cooling Capacity2 |
412 kW 573 kW |
479 kW 669 kW |
532 kW 746 kW |
591 kW 828 kW |
623 kW 871 kW |
682 kW 953 kW |
|
Input Power1,4 Input Power2,4 |
127.1 kW 111 kW |
144.9 kW 129 kW |
165.1 kW 150 kW |
180.5 kW 164 kW |
196.1 kW 179 kW |
212 kW 194 kW |
| Condenser Air Flow | 150,000 m3/h | 188,000 m3/h | 188,000 m3/h | 225,000 m3/h | 225,000 m3/h | 263,000 m3/h |
| Fans/Diameter | 8 n°/800 mm | 10 n°/800 mm | 10 n°/800 mm | 12 n°/800 mm | 12 n°/800 mm | 14 n°/800 mm |
| Fans Input Power (each) | 1.45 kW | 1.45 kW | 1.45 kW | 1.45 kW | 1.45 kW | 1.45 kW |
|
EER1,3 EER2,3 |
3.24 kW / kW 5.15 kW / kW |
3.31 kW / kW 5.19 kW / kW |
3.22 kW / kW 4.99 kW / kW |
3.27 kW / kW 5.04 kW / kW |
3.18 kW / kW 4.88 kW / kW |
3.22 kW / kW 4.91 kW / kW |
|
SEPR5 SEPR6 |
5.82 kW 6.03 kW |
5.78 kW 6.00 kW |
5.69 kW N/A |
5.59 kW 6.02 kW |
5.59 kW 5.75 kW |
5.76 kW N/A |
| Compressor Number | 6 n° | 6 n° | 6 n° | 6 n° | 6 n° | 6 n° |
| Cooling Capacity Steps | 7 n° | 16 n° | 7 n° | 15 n° | 15 n° | 7 n° |
| Refrigerant Charge | 64 kg | 74 kg | 76 kg | 88 kg | 90 kg | 98 kg |
|
Nominal Water Flow Rate1 Nominal Water Flow Rate2 |
71 m3/h 99 m3/h |
82 m3/h 115 m3/h |
92 m3/h 128 m3/h |
102 m3/h 142 m3/h |
107 m3/h 150 m3/h |
117 m3/h 164 m3/h |
|
Nominal Pressure Drop1 Nominal Pressure Drop2 |
25 kPa 48 kPa |
18 kPa 35 kPa |
25 kPa 49 kPa |
35 kPa 69 kPa |
38 kPa 74 kPa |
18 kPa 35 kPa |
| Min/Max Water Flow | 58 m3 / 140 h | 74 m3 / 150 h | 74 m3 / 150 h | 68 m3 / 150 h | 80 m3 / 180 h | 110 m3 / 200 h |
| Min/Max Pressure Drop | 15/75 kPa | 15/60 kPa | 15/60 kPa | 15/75 kPa | 15/87 kPa | 15/55 kPa |
| Shipping Weight (Hydraulic Version 1-2) | 3,250-3,400 kg | 4,200-4,300 kg | 4,250-4,350 kg | 4,850-5,050 kg | 4,900-5,100 kg | 5,500-5,700 kg |
| Operating Weight (Hydraulic Version 1-2) | 3,450-3,600 kg | 4,450-4,550 kg | 4,500-4,600 kg | 5,100-5,300 kg | 5,150-5,350 kg | 5,950-6,200 kg |
| Dimensions L x W x H | 5,972 x 2,250 x 2,426 mm |
7,481 x 2,250 x 2,426 mm |
7,481 x 2,250 x 2,426 mm |
8,731 x 2,250 x 2,426 mm |
8,731 x 2,250 x 2,426 mm |
8,731 x 2,250 x 2,426 mm |
1In/Out evaporator water temperature 12/7°C (100% water), inlet condenser air temperature 35°C, versions with AC fans.
2In/Out evaporator water temperature 20/15°C (100% water), inlet condenser air temperature 25°C, versions with AC fans.
3EER = Cooling capacity [kW] / (Compressors [kW] + Fans [kW]), versions with AC fans.
4Data valid for hydraulic configuration “0” only.
5Data according to European Regulation (EU) 2016/2281 Ecodesign (high temperature process chillers). Basic unit, hydraulic version “0”, versions with AC fans.
6Data according to European Regulation (EU) 2016/2281 Ecodesign (high temperature process chillers). Basic unit, hydraulic version “0”, versions with EC fans.
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
