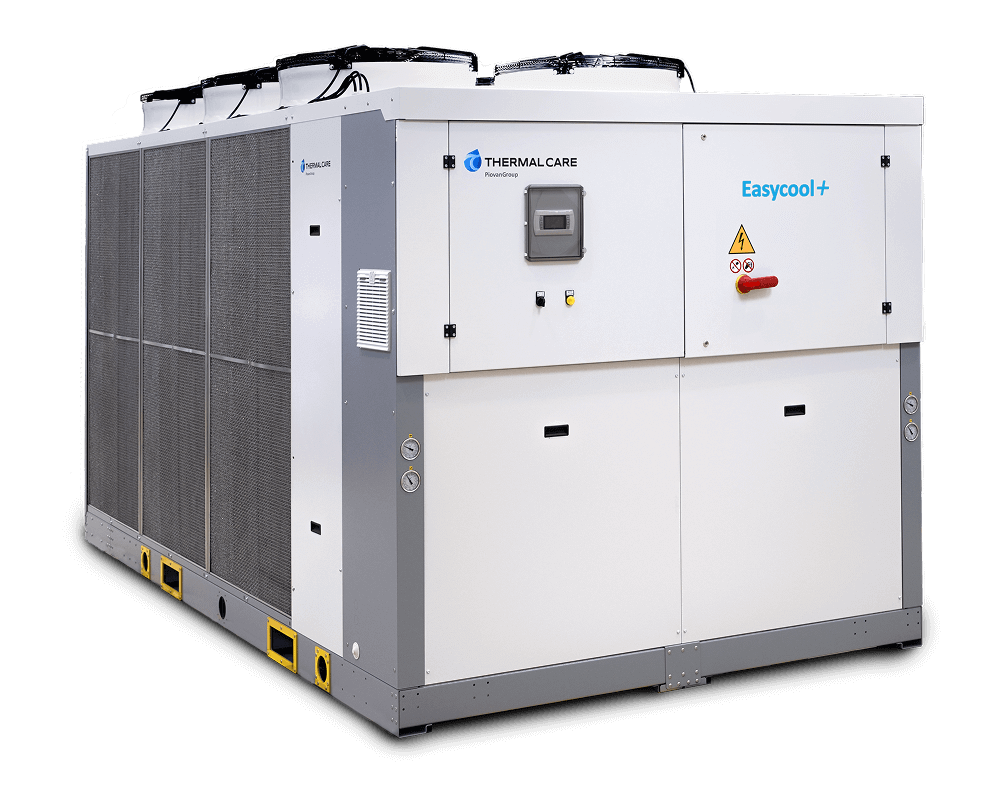

Easycool+ ECA2742-ECA4842
Compact Chiller with 4-Scroll Compressors for 268 kW -497 kW Applications
Engineered for versatility, the our four-scroll units deliver reliable cooling across a wide range of process applications, including plastics. The Easycool+ air-cooled chiller is available for multiple industries, offering a broad 268–497 kW cooling.
Designed with efficiency in mind, the Easycool+ features energy-saving air-cooled operation that minimizes operating costs and supports your sustainability goals. Its use of environmentally responsible refrigerants further underscores a commitment to eco-friendly performance, delivering both power and peace of mind.
-
Indoor and Outdoor Installation
-
Green Refrigerant
ODP = 0 -
Tandem Scroll
Compressor -
Internal
Hydraulic Kit
Benefits of the Easycool+ ECA2742-4842 Chiller Features
Essential for the energy-saving air-cooled operation, these fans have 5 aluminum blades with maintenance-free bearings, to ensure efficient heat dissipation and contribute to the chiller’s quiet performance.
Essential for the energy-saving air-cooled operation, these fans have 5 aluminum blades with maintenance-free bearings, to ensure efficient heat dissipation and contribute to the chiller’s quiet performance.
Provides temperature stability and efficiency by regulating refrigerant flow to the evaporator. This ensures high precision control even at low flow rates.
Generous heat exchanging surfaces and washable coil construction provide high reliability even in conditions common to industrial environments.
Two hermetic compressors per circuit for the excellent reliability and efficiency, while maintaining quiet operation.
Overview
- Wide Cooling Capacity Range: From 268 to 497 kW provides flexibility for a variety of process applications.
- High Energy Efficiency: Advanced scroll compressor design ensures reduced energy consumption and optimal cooling performance.
- Robust and Reliable Operation: Built with high-quality components, these chillers offer dependable performance and extended service life, ideal for demanding industrial applications.
- Space Saving Design: Streamlined footprint enables installation in areas with limited space, maximizing facility layout flexibility.
- Intuitive Digital Controls: Advanced controls provide real-time monitor- ing, alarm management, seamless operation, and quick troubleshooting. RS485 port for remote monitoring and connection.
- Quiet Operation: Optimized fan configuration and acoustic insulation minimize noise emission, supporting quieter and more comfortable work environments.
- Environmentally Friendly: High effi- ciency, especially at partial loads, and the use of eco-friendly refrigerants with low global warming potential (GWP).
- SPER Energy Index Rating Greater than 5*: High temperature process chillers.
- Warranty: 1 year parts and labor.
Available Options
- Stainless Steel AISI304 Evaporator water filter 800 micron “Y” type (threaded connection)
- Flanged connections
- Acoustic and visual alarm HT4842
- Remote display
- Additional Modbus serial card for Winfactory 4.0® Interface
Resources
Brochures
Specifications
Specification Tables
| Model | ECA2742 HT | ECA3142 HT | ECA3442 HT | ECA3842 HT | ECA4342 HT | ECA4842 HT |
|---|---|---|---|---|---|---|
|
Cooling Capacity1 Cooling Capacity2 |
198.0 kW 284.0 kW |
221.0 kW 318.0 kW |
250.0 kW 357.0 kW |
269.0 kW 379.0 kW |
315.0 kW 443.0 kW |
352.0 k 497.0 kW |
|
Input Power1,4 Input Power2,4 |
63.4 kW 56.8 kW |
68.5 kW 60.7 kW |
76.9 kW 68.0 kW |
85.8 kW 76.5 kW |
99.9 kW 88.9 kW |
112.1 kW 102.5 kW |
| Condenser Air Flow | 120,000 m3/h | 114,000 m3/h | 111,000 m3/h | 111,000 m3/h | 152,000 m3/h | 152,000 m3/h |
| Fans/Diameter | 6 n°/800 mm | 6 n°/800 mm | 6 n°/800 mm | 6 n°/800 mm | 8 n°/800 mm | 8 n°/800 mm |
| Fans Input Power (each) | 1.94 kW | 1.94 kW | 1.94 kW | 1.94 kW | 1.94 kW | 1.94 kW |
|
EER1,3 EER2,3 |
3.13 5.01 |
3.23 5.23 |
3.25 5.25 |
3.14 4.96 |
3.15 4.98 |
3.14 4.85 |
|
SEPR5 SEPR6 |
5.50 6.04 |
5.62 6.18 |
5.88 6.50 |
5.70 6.16 |
5.54 6.03 |
5.26 5.74 |
| Compressor Number | 4 n° | 4 n° | 4 n° | 4 n° | 4 n° | 4 n° |
| Cooling Capacity Steps | 9 n° | 5 n° | 9 n° | 5 n° | 9 n° | 5 n° |
| Refrigerant Charge | 46 kg | 56 kg | 58 kg | 60 kg | 70 kg | 72 kg |
|
Nominal Water Flow Rate1 Nominal Water Flow Rate2 |
34.0 m3/h 49.0 m3/h |
38.0 m3/h 55.0 m3/h |
43.0 m3/h 61.0 m3/h |
46.0 m3/h 65.0 m3/h |
54.0 m3/h 76.0 m3/h |
61.0 m3/h 85.0 m3/h |
|
Nominal Pressure Drop1 Nominal Pressure Drop2 |
31 kPa 64 kPa |
32 kPa 66 kPa |
37 kPa 75 kPa |
34 kPa 67 kPa |
36 kPa 71 kPa |
36 kPa 72 kPa |
| Min/Max Water Flow | 23.7/65.4 m3h | 26.3/72.8 m3h | 27.5/76.2 m3h | 30.6/84.6 m3h | 35.1/97.3 m3h | 39.4/109.2 m3h |
| Min/Max Pressure Drop | 15/114 kPa | 15/115 kPa | 15/115 kPa | 15/115 kPa | 15/115 kPa | 15/115 kPa |
| Shipping Weight (Hydraulic Version 5-6) | 2,312-2,508 kg | 2,312-2,508 kg | 2,312-2,508 kg | 2,312-2,508 kg | 2,312-2,508 kg | 2,312-2,508 kg |
| Operating Weight (Hydraulic Version 5-6) | 3,017-3,228 kg | 3,017-3,228 kg | 3,017-3,228 kg | 3,017-3,228 kg | 3,017-3,228 kg | 3,017-3,228 kg |
| Dimensions L x W x H | 4,024 x 2,160 x 2,302 mm | 4,024 x 2,160 x 2,302 mm | 4,024 x 2,160 x 2,302 mm | 4,024 x 2,160 x 2,302 mm | 5,030 x 2,160 x 2,302 mm | 5,030 x 2,160 x 2,302 mm |
1In/Out evaporator water temperature 12/7°C (100% water), inlet condenser air temperature 35°C, versions with AC fans.
2In/Out evaporator water temperature 20/15°C (100% water), inlet condenser air temperature 25°C, versions with AC fans.
3EER = Cooling capacity [kW] / (Compressors [kW] + Fans [kW]), versions with AC fans.
4Data valid for hydraulic configuration “0” only.
5SEPR = Data according to European Regulation (EU) 2016/2281 Ecodesign (high temperature process chillers). Basic unit, hydraulic version “0”, versions with AC fans.
6SEPR = Data according to European Regulation (EU) 2016/2281 Ecodesign (high temperature process chillers). Basic unit, hydraulic version “0”, versions with EC fans.
| Model | ECA2742 MT | ECA3142 MT | ECA3442 MT | ECA3842 MT | ECA4342 MT | ECA4842 MT |
|---|---|---|---|---|---|---|
|
Cooling Capacity1 Cooling Capacity2 |
188.0 kW 268.0 kW |
213.0 kW 303.0 kW |
233.0 kW 330.0 kW |
265.0 kW 375.0 kW |
299.0 kW 421.0 kW |
337.0 kW 477.0 kW |
|
Input Power1,4 Input Power2,4 |
63.6 kW 57.7 kW |
69.8 kW 62.6 kW |
79.7 kW 73.0 kW |
88.6 kW 78.6 kW |
102.1 kW 94.6 kW |
115.6 kW 108.2 kW |
| Condenser Air Flow | 82,000 m3/h | 80,000 m3/h | 80,000 m3/h | 114,000 m3/h | 114,000 m3/h | 111,000 m3/h |
| Fans/Diameter | 4 n°/800 mm | 4 n°/800 mm | 4 n°/800 mm | 6 n°/800 mm | 6 n°/800 mm | 6 n°/800 mm |
| Fans Input Power (each) | 1.94 kW | 1.94 kW | 1.94 kW | 1.94 kW | 1.94 kW | 1.94 kW |
|
EER1,3 EER2,3 |
2.95 4.65 |
3.05 4.84 |
2.93 4.52 |
2.99 4.78 |
2.93 4.45 |
2.90 4.41 |
|
SEPR5 SEPR6 |
5.39 5.76 |
5.55 5.85 |
5.56 5.90 |
5.59 5.99 |
5.20 5.66 |
5.17 5.62 |
| Compressor Number | 4 n° | 4 n° | 4 n° | 4 n° | 4 n° | 4 n° |
| Cooling Capacity Steps | 9 n° | 5 n° | 9 n° | 5 n° | 9 n° | 5 n° |
| Refrigerant Charge | 38 kg | 50 kg | 52 kg | 52 kg | 64 kg | 66 kg |
|
Nominal Water Flow Rate1 Nominal Water Flow Rate2 |
32 m3/h 46 m3/h |
37 m3/h 52 m3/h |
40 m3/h 57 m3/h |
46 m3/h 65 m3/h |
51 m3/h 72 m3/h |
58 m3/h 82 m3/h |
|
Nominal Pressure Drop1 Nominal Pressure Drop2 |
34 kPa 69 kPa |
30 kPa 61 kPa |
36 kPa 72 kPa |
32 kPa 64 kPa |
33 kPa 65 kPa |
33 kPa 66 kPa |
| Min/Max Water Flow | 21.3/59.0 m3h | 26.3/72.8 m3h | 26.3/72.8 m3h | 30.6/84.6 m3h | 35.1/97.3 m3h | 39.4/109.2 m3h |
| Min/Max Pressure Drop | 15/115 kPa | 15/115 kPa | 15/115 kPa | 15/115 kPa | 15/115 kPa | 15/115 kPa |
| Shipping WeigMT (Hydraulic Version 5-6) | 2,060-2,262 kg | 2,096-2,298 kg | 2,113-2,315 kg | 2,423-2,615 kg | 2,483-2,633 kg | 2,540-2,690 kg |
| Operating WeigMT (Hydraulic Version 5-6) | 2,750-2,963 kg | 2,786-2,999 kg | 2,803-3,016 kg | 3,128-3,335 kg | 3,188-3,353 kg | 3,245-3,410 kg |
| Dimensions L x W x H | 3,514 x 2,160 x 2,303 mm | 3,514 x 2,160 x 2,303 mm | 3,514 x 2,160 x 2,303 mm | 4,024 x 2,160 x 2,302 mm | 4,024 x 2,160 x 2,302 mm | 4,024 x 2,160 x 2,302 mm |
1In/Out evaporator water temperature 12/7°C (100% water), inlet condenser air temperature 35°C, versions with AC fans.
2In/Out evaporator water temperature 20/15°C (100% water), inlet condenser air temperature 25°C, versions with AC fans.
3EER = Cooling capacity [kW] / (Compressors [kW] + Fans [kW]), versions with AC fans.
4Data valid for hydraulic configuration “0” only.
5SEPR = Data according to European Regulation (EU) 2016/2281 Ecodesign (high temperature process chillers). Basic unit, hydraulic version “0”, versions with AC fans.
6SEPR = Data according to European Regulation (EU) 2016/2281 Ecodesign (high temperature process chillers). Basic unit, hydraulic version “0”, versions with EC fans.
| HT (High Temperature) with Evaporator | ECA2742 HT | ECA3142 HT | ECA3442 HT | ECA3842 HT | ECA4342 HT | ECA4842 HT |
|---|---|---|---|---|---|---|
|
Nominal Water Flow Rate1 Nominal Water Flow Rate2 |
34.0 m3/h 49.0 m3/h |
38.0 m3/h 55.0 m3/h |
43.0 m3/h 61.0 m3/h |
46.0 m3/h 65.0 m3/h |
54.0 m3/h 76.0 m3/h |
61.0 m3/h 85.0 m3/h |
|
Nominal Pressure Drop1 Nominal Pressure Drop2 |
27 kPa 56 kPa |
21 kPa 43 kPa |
28 kPa 57 kPa |
33 kPa 66 kPa |
24 kPa 47 kPa |
33 kPa 66 kPa |
| Min/Max Water Flow | 25.5/66.0 m3h | 32.0/80.0 m3h | 32.0/80.0 m3h | 32.0/80.0 m3h | 43.0/100.0 m3h | 41.0/100.0 m3h |
| Min/Max Pressure Drop | 15/100 kPa | 15/90 kPa | 15/90 kPa | 15/90 kPa | 15/87 kPa | 15/88 kPa |
| Shipping Weight (Hydraulic Version 5-6) | N/A | N/A | N/A | N/A | N/A | N/A |
| Operating Weight (Hydraulic Version 5-6) | N/A | N/A | N/A | N/A | N/A | N/A |
| Dimensions L x W x H | 4,024 x 2,160 x 2,302 mm | 4,024 x 2,160 x 2,302 mm | 4,024 x 2,160 x 2,302 mm | 4,024 x 2,160 x 2,302 mm | 5,030 x 2,160 x 2,302 mm | 5,030 x 2,160 x 2,302 mm |
| MT (Medium Temperature) with Evaporator | ECA2742 MT | ECA3142 MT | ECA3442 MT | ECA3842 MT | ECA4342 MT | ECA4842 MT |
|---|---|---|---|---|---|---|
|
Nominal Water Flow Rate1 Nominal Water Flow Rate2 |
32 m3/h 49 m3/h |
38 m3/h 52 m3/h |
40 m3/h 57 m3/h |
46 m3/h 65 m3/h |
51 m3/h 72 m3/h |
58 m3/h 82 m3/h |
|
Nominal Pressure Drop1 Nominal Pressure Drop2 |
39 kPa 79 kPa |
31 kPa 63 kPa |
24 kPa 48 kPa |
32 kPa 64 kPa |
33 kPa 65 kPa |
30 kPa 60 kPa |
| Min/Max Water Flow | 20.0/51.5 m3h | 25.5/66.0 m3h | 32.0/80.0 m3h | 32.0/80.0 m3h | 35.0/85.0 m3h | 41.0/100.0 m3h |
| Min/Max Pressure Drop | 15/100 kPa | 15/100 kPa | 15/90 kPa | 15/90 kPa | 15/88 kPa | 15/88 kPa |
| Shipping Weight (Hydraulic Version 5-6) | N/A | N/A | N/A | N/A | N/A | N/A |
| Operating Weight (Hydraulic Version 5-6) | N/A | N/A | N/A | N/A | N/A | N/A |
| Dimensions L x W x H | 3,514 x 2,160 x 2,303 mm | 3,514 x 2,160 x 2,303 mm | 3,514 x 2,160 x 2,303 mm | 4,024 x 2,160 x 2,302 mm | 4,024 x 2,160 x 2,302 mm | 4,024 x 2,160 x 2,302 mm |
1In/Out evaporator water temperature 12/7°C (100% water), inlet condenser air temperature 35°C, versions with AC fans.
2In/Out evaporator water temperature 20/15°C (100% water), inlet condenser air temperature 25°C, versions with AC fans.
3EER = Cooling capacity [kW] / (Compressors [kW] + Fans [kW]), versions with AC fans.
4Data valid for hydraulic configuration “0” only.
5SEPR = Data according to European Regulation (EU) 2016/2281 Ecodesign (high temperature process chillers). Basic unit, hydraulic version “0”, versions with AC fans.
6SEPR = Data according to European Regulation (EU) 2016/2281 Ecodesign (high temperature process chillers). Basic unit, hydraulic version “0”, versions with EC fans.
| Model | Shipping Weight | Operating Weight | Hydraulic Version | Full Load Power at the Maximum Admissible Conditions (FLI) | Full Current at theMaximum Admissible Conditions (FLA) | Inrush Starting Current (IS) |
|---|---|---|---|---|---|---|
|
ECA2742 HT |
2,018 kg 2,112-2,156 kg 2,295-2,492 kg 2,312-2,508 kg |
2,051 kg 2,152-2,198 kg 3,000-3,207 kg 3,017-3,228 kg |
0 1-2 3-4 5-6 |
90 kW 96 kW 102 kW 110 kW |
156 Amps 167 Amps 177 Amps 190 Amps |
344 Amps 355 Amps 365 Amps 378 Amps |
|
ECA3142 HT |
2,058 kg 2,152-2,196 kg 2,335-2,532 kg 2,352-2,548 kg |
2,091 kg 2,192-2,238 kg 3,040-3,247 kg 3,057-3,268 kg |
0 1-2 3-4 5-6 |
99 kW 105 kW 111 kW 119 kW |
167 Amps 178 Amps 188 Amps 201 Amps |
355 Amps 366 Amps 376 Amps 389 Amps |
|
ECA3442 HT |
2,070 kg 2,164-2,208 kg 2,347-2,544 kg 2,364-2,560 kg |
2,103 kg 2,204-2,250 kg 3,052-3,259 kg 3,069-3,280 kg |
0 1-2 3-4 5-6 |
109 kW 115 kW 121 kW 129 kW |
183 Amps 194 Amps 204 Amps 217 Amps |
410 Amps 421 Amps 431 Amps 444 Amps |
|
ECA3842 HT |
2,129 kg 2,231-2,293 kg 2,429-2,621 kg 2,443-2,641 kg |
2,162 kg 2,271-2,335 kg 3,134-3,336 kg 3,148-3,361 kg |
0 1-2 3-4 5-6 |
119 kW 125 kW 131 kW 139 kW |
199 Amps 210 Amps 220 Amps 229 Amps |
423 Amps 434 Amps 444 Amps 457 Amps |
|
ECA4342 HT |
2,977 kg 3,109-3,225 kg 3,320-3,492 kg 3,341-3,501 kg |
3,017 kg 3,157-3,276 kg 4,042-4,222 kg 4,063-4,231 kg |
0 1-2 3-4 5-6 |
142 kW 150 kW 158 kW 166 kW |
239 Amps 253 Amps 266 Amps 282 Amps |
489 Amps 503 Amps 516 Amps 532 Amps |
|
ECA4842 HT |
3,038 kg 3,170-3,286 kg 3,381-3,553 kg 3,402-3,562 kg |
3,078 kg 3,218-3,337 kg 4,103-4,283 kg 4,124-4,292 kg |
0 1-2 3-4 5-6 |
161 kW 169 kW 177 kW 185 kW |
270 Amps 284 Amps 297 Amps 313 Amps |
521 Amps 535 Amps 548 Amps 564 Amps |
| Model | Shipping Weight | Operating Weight | Hydraulic Version | Full Load Power at the Maximum Admissible Conditions (FLI) | Full Current at theMaximum Admissible Conditions (FLA) | Inrush Starting Current (IS) |
|---|---|---|---|---|---|---|
|
ECA2742 MT |
1,772 kg 1,857-1,914 kg 2,042-2,244 kg 2,060-2,262 kg |
1,798 kg 1,890-1,952 kg 2,732-2,945 kg 2,750-2,963 kg |
0 1-2 3-4 5-6 |
86 kW 92 kW 98 kW 106 kW |
148 Amps 159 Amps 169 Amps 181 Amps |
336 Amps 247 Amps 357 Amps 370 Amps |
|
ECA3142 MT |
1,808 kg 1,893-1,950 kg 2,078-2,280 kg 2,096-2,298 kg |
1,834 kg 1,926-1,988 kg 2,768-2,981 kg 2,786-2,999 kg |
0 1-2 3-4 5-6 |
95 kW 101 kW 107 kW 115 kW |
159 Amps 170 Amps 180 Amps 193 Amps |
347 Amps 358 Amps 368 Amps 381 Amps |
|
ECA3442 MT |
1,825 kg 1,910-1,967 kg 2,095-2,297 kg 2,113-2,315 kg |
1,851 kg 1,943-2,005 kg 2,785-2,998 kg 2,803-3,016 kg |
0 1-2 3-4 5-6 |
105 kW 111 kW 117 kW 125 kW |
175 Amps 186 Amps 196 Amps 209 Amps |
402 Amps 414 Amps 423 Amps 436 Amps |
|
ECA3842 MT |
2,121 kg 2,223-2,285 kg 2,406-2,604 kg 2,423-2,615 kg |
2,154 kg 2,263-2,327 kg 3,111-3,319 kg 3,128-3,335 kg |
0 1-2 3-4 5-6 |
119 kW 125 kW 131 kW 139 kW |
199 Amps 210 Amps 220 Amps 229 Amps |
423 Amps 434 Amps 444 Amps 457 Amps |
|
ECA4342 MT |
2,126 kg 2,255-2,373 kg 2,466-2,621 kg 2,483-2,633 kg |
2,159 kg 2,295-2,415 kg 3,171-3,336 kg 3,188-3,353 kg |
0 1-2 3-4 5-6 |
138 kW 146 kW 154 kW 162 kW |
231 Amps 245 Amps 258 Amps 274 Amps |
481 Amps 495 Amps 508 Amps 524 Amps |
|
ECA4842 MT |
2,183 kg 2,312-2,430 kg 2,523-2,678 kg 2,540-2,690 kg |
2,216 kg 2,352-2,472 kg 3,228-3,393 kg 3,245-3,410 kg |
0 1-2 3-4 5-6 |
157 kW 165 kW 173 kW 181 kW |
262 Amps 276 Amps 289 Amps 305 Amps |
513 Amps 527 Amps 540 Amps 556 Amps |
| Model | Shipping Weight | Operating Weight | Hydraulic Version | Full Load Power at the Maximum Admissible Conditions (FLI) | Full Current at theMaximum Admissible Conditions (FLA) | Inrush Starting Current (IS) |
|---|---|---|---|---|---|---|
|
ECA2742 HT |
2,145-2,239 kg N/A N/A N/A |
2,145-2,239 kg N/A N/A N/A |
0-1 2-3 4-5 6 |
90-96 kW 96-102 kW 102-110 kW 110 kW |
156-167 Amps 167-177 Amps 177-190 Amps 190 Amps |
344-355 Amps 355-365 Amps 365-378 Amps 378 Amps |
|
ECA3142 HT |
2,170-2,264 kg N/A N/A N/A |
2,221-2,414 kg N/A N/A N/A |
0-1 2-3 4-5 6 |
99-105 kW 105-111 kW 111-119 kW 119 kW |
167-178 Amps 178-188 Amps 188-201 Amps 201 Amps |
355-366 Amps 366-376 Amps 376-389 Amps 389 Amps |
|
ECA3442 HT |
2,182-2,276 kg N/A N/A N/A |
2,233-2,426 kg N/A N/A N/A |
0-1 2-3 4-5 6 |
109-115 kW 115-121 kW 121-129 kW 129 kW |
183-194 Amps 194-204 Amps 204-217 Amps 217 Amps |
410-421 Amps 421-431 Amps 431-444 Amps 444 Amps |
|
ECA3842 HT |
2,215-2,317 kg N/A N/A N/A |
2,266-2,467 kg N/A N/A N/A |
0-1 2-3 4-5 6 |
119-125 kW 125-131 kW 131-139 kW 139 kW |
199-210 Amps 210-220 Amps 220-229 Amps 229 Amps |
423-434 Amps 434-444 Amps 444-457 Amps 457 Amps |
|
ECA4342 HT |
3,053-3,185 kg N/A N/A N/A |
3,112-3,415 kg N/A N/A N/A |
0-1 2-3 4-5 6 |
142-150 kW 150-158 kW 158-166 kW 166 kW |
239-253 Amps 253-266 Amps 266-282 Amps 282 Amps |
489-503 Amps 503-516 Amps 516-532 Amps 532 Amps |
|
ECA4842 HT |
3,104-3,236 kg N/A N/A N/A |
3,173-3,476 kg N/A N/A N/A |
0-1 2-3 4-5 6 |
161-169 kW 169-177 kW 177-185 kW 185 kW |
270-284 Amps 284-297 Amps 297-313 Amps 313 Amps |
521-535 Amps 535-548 Amps 548-564 Amps 564 Amps |
| Model | Shipping Weight | Operating Weight | Hydraulic Version | Full Load Power at the Maximum Admissible Conditions (FLI) | Full Current at theMaximum Admissible Conditions (FLA) | Inrush Starting Current (IS) |
|---|---|---|---|---|---|---|
|
ECA2742 MT |
1,899-1,984 kg N/A N/A N/A |
1,941-2,087 kg N/A N/A N/A |
0-1 2-3 4-5 6 |
86-92 kW 92-98 kW 98-106 kW 106 kW |
148-159 Amps 159-169 Amps 169-181 Amps 181 Amps |
247-336 Amps 336-357 Amps 357-370 Amps 370 Amps |
|
ECA3142 MT |
1,920-2,005 kg N/A N/A N/A |
1,962-2,108 kg N/A N/A N/A |
0-1 2-3 4-5 6 |
95-101 kW 101-107 kW 107-115 kW 115 kW |
159-170 Amps 170-180 Amps 180-193 Amps 193 Amps |
347-358 Amps 358-368 Amps 368-381 Amps 381 Amps |
|
ECA3442 MT |
1,937-2,022 kg N/A N/A N/A |
1,979-2,125 kg N/A N/A N/A |
0-1 2-3 4-5 6 |
105-111 kW 111-117 kW 117-125 kW 125 kW |
175-186 Amps 186-196 Amps 196-209 Amps 209 Amps |
402-414 Amps 414-423 Amps 423-436 Amps 436 Amps |
|
ECA3842 MT |
2,207-2,309 kg N/A N/A N/A |
2,258-2,459 kg N/A N/A N/A |
0-1 2-3 4-5 6 |
119-125 kW 125-131 kW 131-139 kW 139 kW |
199-210 Amps 210-220 Amps 220-229 Amps 229 Amps |
423-434 Amps 434-444 Amps 444-457 Amps 457 Amps |
|
ECA4342 MT |
2,202-2,331 kg N/A N/A N/A |
2,253-2,481 kg N/A N/A N/A |
0-1 2-3 4-5 6 |
138-146 kW 146-154 kW 154-162 kW 162 kW |
231-245 Amps 245-258 Amps 258-274 Amps 274 Amps |
481-495 Amps 495-508 Amps 508-524 Amps 524 Amps |
|
ECA4842 MT |
2,249-2,378 kg N/A N/A N/A |
2,300-2,528 kg N/A N/A N/A |
0-1 2-3 4-5 6 |
157-165 kW 165-173 kW 173-181 kW 181 kW |
262-276 Amps 276-289 Amps 289-305 Amps 305 Amps |
513-527 Amps 527-540 Amps 540-556 Amps 556 Amps |
Glycol Data
| Freezing Temperature Ethylene Glycol | |||||
|---|---|---|---|---|---|
| % volume | 20 | 25 | 30 | 35 | 40 |
| % mass | 22 | 27 | 33 | 38 | 43 |
| Celsius (°C) | -8.0°C | -11.0°C | -14.0°C | -18.0°C | -23.0°C |
| % Ethylene Glycol By Weight | 20 | 25 | 30 | 35 | 40 |
|---|---|---|---|---|---|
| Cooling Capacity Factor | 0.98 kW | 0.975 kW | 0.97 kW | 0.965 kW | 0.96 kW |
| Compressor Input Power Factor | 0.986 kW | 0.983 kW | 0.981 kW | 0.978 kW | 0.976 kW |
| Water Flow Rate Factor | 1.05 m3/h | 1.06 m3/h | 1.075 m3/h | 1.095 m3/h | 1.12 m3/h |
| Water Pressure Drop Factor | 1.15 kPa | 1.19 kPa | 1.23 kPa | 1.27 kPa | 1.31 kPa |
| Freezing Temperature Propylene Glycol | |||||
|---|---|---|---|---|---|
| % volume | 20 | 25 | 30 | 35 | 40 |
| % mass | 20.8 | 25.8 | 31.0 | 38.0 | 41.2 |
| Celsius (°C) | -6.5°C | -9.0°C | -11.0°C | -14.5°C | -18.5°C |
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
Related Products
