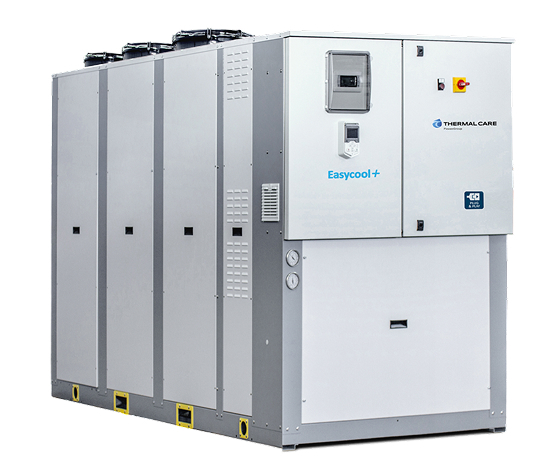

Easycool+ ECA0621-ECA1321
Compact Chiller with Scroll Compressor for 60 kW -250 kW Applications
The Easycool+ air-cooled chillers (models ECA0621–ECA1321) deliver reliable, energy-efficient cooling for industrial uses—especially plastics—supporting capacities from 60 kW to 250 kW. Their compact design suits tight spaces, with options for different evaporators and advanced controls for precise temperature management. They use eco-friendly refrigerants, require minimal maintenance, run quietly, and help manufacturers save costs while maintaining consistent, high-quality processes.
This size range efficiently handles processes such as injection molding, extrusion, and thermoforming. Its compact, robust construction fits well in crowded production spaces and ensures consistent, long-term operation.
-
Indoor and Outdoor Installation
-
Green Refrigerant
ODP = 0 -
Tandem Scroll
Compressor -
Internal
Hydraulic Kit
Benefits of the Easycool+ ECA0621-1321 Chiller Features
Essential for the energy saving air cooled operation to ensure efficient heat dissipation and contribute to the chiller’s quiet performance.
Guarantees maximum energy efficiency and maximum stability across the process.
The central control unit offers precise, user-friendly temperature management and system diagnostics, optimizing process stability.
The robust tank provides consistent fluid storage and circulation, accommodating the high demands of industrial cooling applications.
The integrated pump delivers reliable fluid movement, supporting precise temperature regulation across a wide capacity range.
Overview
- Wide Cooling Capacity Range: From 60 to 250 kW provides flexibility for a variety of process applications.
- Energy Efficient Air Cooled Operation: Minimizes operational expenses.
- Compact Design: Enables easy in- stallation, even in space-constrained environments.
- Two Evaporator Options: Brazed plate or shell and tube—allows users to select the optimal solution for their application, ensuring compatibility and enhanced performance.
- Advanced Microprocessor Controls: Deliver precise and reliable tempera- ture regulation.
- Robust Construction and Low Main- tenance Components: Help maximize equipment uptime.
- Eco-Friendly Refrigerants: Supports sustainability initiatives.
- Quiet Operation: Enhances comfort and reduces noise in the workplace.
- SPER Energy Index Rating Greater than 5*: High temperature process chillers.
- Energy Efficiency: Environmentally friendly especially at the partial loads.
- Special Condenser : Provides optimal performance in dirty ambient, heavy working conditions, hot temperatures and variable heat loads.
- Flexibility: Double scroll compressor and four different hydraulic kits are available.
- Warranty: 1 year parts and labor.
- Winfactory 4.0® Supervision Software: Continuous monitoring of the process.
- Extended Equipment Life: The internal components are mainly European brands that ensure quality (such as: Copeland compressors, Ebm-Papst fans, Siemens and ABB electromechanical devices, Carel programmable controls).
- Easily Accessible: All components are arranged inside the units in order to simplify maintenance operations.
Available Options
- Manual water by-pass
- Flanged connections
- Stainless Steel AISI304 Evaporator water filter, 500 or 800 micron “Y” type (depend by the size)
- Acoustic and visual alarm
- Remote display
- Phases sequence control device (supplied as standard)
- Additional Modbus serial card for Winfactory 4.0®
- Anti-vibration mounts Interface
Resources
Brochures
Specifications
Specification Tables
| Model | ECA0621 HT | ECA0721 HT | ECA0821 HT | ECA0921 HT | ECA1121 HT | ECA1321 HT |
|---|---|---|---|---|---|---|
| Cooling Capacity1 Cooling Capacity2 |
49.9 kW 71.7 kW |
57.7 kW 82.4 kW |
67.2 kW 94.3 kW |
75.5 kW 104 kW |
87.3 kW 119 kW |
100 kW 136 kW |
| Input Power1,4 Input Power2,4 |
15 kW 13.4 kW |
17.8 kW 15.9 kW |
21.5 kW 19.1 kW |
23.1 kW 20.6 kW |
27.9 kW 23.9 kW |
31.7 kW 28.1 kW |
| Condenser Air Flow | 23,700 m3/h | 23,700 m3/h | 23,400 m3/h | 41,000 m3/h | 40,000 m3/h | 60,000 m3/h |
| Fans/Diameter | 3 n°/500 mm | 3 n°/500 mm | 3 n°/500 mm | 2 n°/800 mm | 2 n°/800 mm | 3 n°/800 mm |
| Fans Input Power (each) | 0.72 kW | 0.72 kW | 0.72 kW | 1.94 kW | 1.94 kW | 1.94 kW |
| EER1,3 EER2,3 |
3.33 kW / kW |
3.24 kW / kW 5.18 kW / kW |
3.13 kW / kW 4.94 kW / kW |
3.27 kW / kW 5.06 kW / kW |
3.23 kW / kW 4.99 kW / kW |
3.15 kW / kW 4.83 kW / kW |
| SEPR5 SEPR6 |
5.39 kW 5.51 kW |
5.60 kW 5.70 kW |
5.48 kW 5.58 kW |
5.52 kW 6.18 kW |
5.51 kW 6.21 kW |
5.54 kW 6.03 kW |
| Compressor Number | 2 n° | 2 n° | 2 n° | 2 n° | 2 n° | 2 n° |
| Cooling Capacity Steps | 3 n° | 3 n° | 3 n° | 3 n° | 3 n° | 4 n° |
| Refrigerant Charge | 13 kg | 13 kg | 13 kg | 19 kg | 23 kg | 24 kg |
| Nominal Water Flow Rate1 Nominal Water Flow Rate2 |
8.58 m3/h 12.33 m3/h |
9.92 m3/h 14.17 m3/h |
11.56 m3/h 16.22 m3/h |
12.99 m3/h 17.94 m3/h |
15.02 m3/h 20.52 m3/h |
17.18 m3/h 23.34 m3/h |
| Nominal Pressure Drop1 Nominal Pressure Drop2 |
33 kPa 68 kPa |
29 kPa 60 kPa |
40 kPa 78 kPa |
32 kPa 61 kPa |
43 kPa 80 kPa |
33 kPa 62 kPa |
| Min/Max Water Flow |
5.8 m3 / 17.1 h | 7.1 m3 / 20.7 h | 7.1 m3 / 20.7 h | 8.9 m3 / 26.2 h | 8.9 m3 / 26.2 h | 11.5 m3 / 34.0 h |
| Min/Max Pressure Drop |
15/130 kPa | 15/128 kPa | 15/128 kPa | 15/130 kPa | 15/130 kPa | 15/131 kPa |
| Shipping Weight
(Hydraulic Version 7-8) |
945 kg | 956 kg | 968 kg | 1,277 kg | 1,285 kg | 1,464 kg |
| Operating Weight
(Hydraulic Version 7-8) |
1,270 kg | 1,281 kg | 1,293 kg | 1,762 kg | 1,770 kg | 1,949 kg |
| Dimensions L x W x H |
1,934 x 1,231 x 2,700 mm | 1,934 x 1,231 x 2,700 mm | 1,934 x 1,231 x 2,700 mm | 2,260 x 1,231 x 3,500 mm | 2,260 x 1,231 x 3,500 mm | 2,257 x 1,231 x 4,000 mm |
1In/Out evaporator water temperature 12/7°C (100% water), inlet condenser air temperature 35°C, versions with AC fans.
2In/Out evaporator water temperature 20/15°C (100% water), inlet condenser air temperature 25°C, versions with AC fans.
3EER = Cooling capacity [kW] / (Compressors [kW] + Fans [kW]), versions with AC fans.
4Data valid for hydraulic configuration “0” only.
5SEPR = Data according to European Regulation (EU) 2016/2281 Ecodesign (high temperature process chillers). Basic unit, hydraulic version “0”, versions with AC fans.
6SEPR = Data according to European Regulation (EU) 2016/2281 Ecodesign (high temperature process chillers). Basic unit, hydraulic version “0”, versions with EC fans.
| Model | ECA1421 HT | ECA1621 HT | ECA1821 HT | ECA2121 HT | ECA2421 HT |
|---|---|---|---|---|---|
| Cooling Capacity1 Cooling Capacity2 |
111 kW 151 kW |
126 kW 171 kW |
139 kW 187 kW |
161 kW 220 kW |
179 kW 250 kW |
| Input Power1,4 Input Power2,4 |
34.9 kW 30.2 kW |
39.3 kW 33.6 kW |
43.5 kW 38 kW |
49.9 kW 44.4 kW |
56.8 kW 51.6 kW |
| Condenser Air Flow | 57,000 m3/h | 55,500 m3/h | 55,500 m3/h | 76,000 m3/h | 76,000 m3/h |
| Fans/Diameter | 3 n°/800 mm | 3 n°/800 mm | 3 n°/800 mm | 4 n°/800 mm | 4 n°/800 mm |
| Fans Input Power (each) | 1.94 kW | 1.94 kW | 1.94 kW | 1.94 kW | 1.94 kW |
| EER1,3 EER2,3 |
3.19 kW / kW 4.99 kW / kW |
3.22 kW / kW 5.10 kW / kW |
3.19 kW / kW 4.92 kW / kW |
3.23 kW / kW 4.95 kW / kW |
3.16 kW / kW 4.84 kW / kW |
| SEPR5 SEPR6 |
5.64 kW 6.13 kW |
5.84 kW 6.60 kW |
5.82 kW 6.35 kW |
5.61 kW 6.29 kW |
5.52 kW 5.98 kW |
| Compressor Number | 2 n° | 2 n° | 2 n° | 2 n° | 2 n° |
| Cooling Capacity Steps | 3 n° | 4 n° | 3 n° | 4 n° | 3 n° |
| Refrigerant Charge | 28 kg | 30 kg | 30 kg | 35 kg | 36 kg |
|
Nominal Water Flow Rate1 Nominal Water Flow Rate2 |
19.16 m3/h 25.92 m3/h |
21.74 m3/h 29.45 m3/h |
23.84 m3/h 32.13 m3/h |
27.73 m3/h 37.82 m3/h |
30.86 m3/h 42.98 m3/h |
| Nominal Pressure Drop1 Nominal Pressure Drop2 |
42 kPa 76 kPa |
34 kPa 63 kPa |
41 kPa 75 kPa |
39 kPa 72 kPa |
39 kPa 75 kPa |
| Min/Max Water Flow |
11.5 m3 / 34 h | 14.4 m3 / 42 h | 14.4 m3 / 42 h | 17.3 m3 / 50.5 h | 19.2 m3 / 56 h |
| Min/Max Pressure Drop |
15/131 kPa | 15/128 kPa | 15/128 kPa | 15/128 kPa | 15/128 kPa |
| Shipping Weight (Hydraulic Version 7-8) | 1,610 kg | 1,642 kg | 1,664 kg | 2,215 kg | 2,283 kg |
| Operating Weight (Hydraulic Version 7-8) | 2,245 kg | 2,277 kg | 2,299 kg | 3,150 kg | 3,218 kg |
| Dimensions L x W x H |
2,257 x 1,231 x 4,000 mm | 2,257 x 1,231 x 4,000 mm | 2,257 x 1,231 x 4,000 mm | 2,257 x 1,231 x 5,090 mm | 2,257 x 1,231 x 5,090 mm |
1In/Out evaporator water temperature 12/7°C (100% water), inlet condenser air temperature 35°C, versions with AC fans.
2In/Out evaporator water temperature 20/15°C (100% water), inlet condenser air temperature 25°C, versions with AC fans.
3EER = Cooling capacity [kW] / (Compressors [kW] + Fans [kW]), versions with AC fans.
4Data valid for hydraulic configuration “0” only.
5SEPR = Data according to European Regulation (EU) 2016/2281 Ecodesign (high temperature process chillers). Basic unit, hydraulic version “0”, versions with AC fans.
6SEPR = Data according to European Regulation (EU) 2016/2281 Ecodesign (high temperature process chillers). Basic unit, hydraulic version “0”, versions with EC fans.
| Model | ECA0621 MT | ECA0721 MT | ECA0821 MT | ECA0921 MT | ECA1121 MT | ECA1321 MT |
|---|---|---|---|---|---|---|
| Cooling Capacity1 Cooling Capacity2 |
46 kW 65.7 kW |
55.6 kW 79.7 kW |
63.1 kW 90.4 kW |
72 kW 100 kW |
84.8 kW 116 kW |
94.8 kW 131.0 kW |
| Input Power1,4 Input Power2,4 |
16.8 kW 15.4 kW |
18.9 kW 17 kW |
23.1 kW 20.7 kW |
24.6 kW 22 kW |
28.1 kW 25.3 kW |
32.3 kW 29.0 kW |
| Condenser Air Flow | 24,500 m3/h | 24,300 m3/h | 24,300 m3/h | 43,000 m3/h | 43,000 m3/h | 41,000 m3/h |
| Fans/Diameter | 3 n°/500 mm | 3 n°/500 mm | 3 n°/500 mm | 2 n°/800 mm | 2 n°/800 mm | 2 n°/800 mm |
| Fans Input Power (each) | 0.72 kW | 0.72 kW | 0.72 kW | 1.94 kW | 1.94 kW | 1.94 kW |
| EER1,3 EER2,3 |
2.74 kW / kW 4.27 kW / kW | 2.94 kW / kW 4.69 kW / kW | 2.73 kW / kW 4.37 kW / kW | 2.93 kW / kW 4.55 kW / kW | 3.02 kW / kW 4.59 kW / kW | 2.93 kW / kW 4.52 kW / kW |
| SEPR5 SEPR6 |
5.12 kW 5.19 kW | 5.27 kW 5.34 kW | 5.13 kW 5.19 kW | 5.20 kW 5.51 kW | 5.34 kW 5.67 kW | 5.38 kW 5.79 kW |
| Compressor Number | 2 n° | 2 n° | 2 n° | 2 n° | 2 n° | 2 n° |
| Cooling Capacity Steps | 3 n° | 3 n° | 3 n° | 3 n° | 3 n° | 4 n° |
| Refrigerant Charge | 9 kg | 12 kg | 12 kg | 17 kg | 17 kg | 19 kg |
|
Nominal Water Flow Rate1 Nominal Water Flow Rate2 |
7.91 m3/h 11.3 m3/h |
9.56 m3/h 13.71 m3/h |
10.85 m3/h 15.55 m3/h |
12.38 m3/h 17.23 m3/h |
14.59 m3/h 19.97 m3/h |
16.31 m3/h 22.57 m3/h |
| Nominal Pressure Drop1 Nominal Pressure Drop2 |
28 kPa 57 kPa |
27 kPa 56 kPa |
35 kPa 72 kPa |
29 kPa 56 kPa |
40 kPa 76 kPa |
30 kPa 58 kPa |
| Min/Max Water Flow |
5.8 m3 / 17.1 h | 7.1 m3 / 20.7 h | 7.1 m3 / 20.7 h | 8.9 m3 / 26.2 h | 8.9 m3 / 26.2 h | 11.5 m3 / 34.0 h |
| Min/Max Pressure Drop |
15/130 kPa | 15/128 kPa | 15/128 kPa | 15/130 kPa | 15/130 kPa | 15/131 kPa |
| Shipping Weight (Hydraulic Version 7-8) | 889 kg | 923 kg | 934 kg | 1,266 kg | 1,271 kg | 1,357 kg |
| Operating Weight (Hydraulic Version 7-8) | 1,214 kg | 1,248 kg | 1,259 kg | 1,751 kg | 1,756 kg | 1,842 kg |
| Dimensions L x W x H |
1,934 x 1,231 x 2,700 mm | 1,934 x 1,231 x 2,700 mm | 1,934 x 1,231 x 2,700 mm | 2,260 x 1,231 x 3,500 mm | 2,260 x 1,231 x 3,500 mm | 2,260 x 1,231 x 3,500 mm |
1In/Out evaporator water temperature 12/7°C (100% water), inlet condenser air temperature 35°C, versions with AC fans.
2In/Out evaporator water temperature 20/15°C (100% water), inlet condenser air temperature 25°C, versions with AC fans.
3EER = Cooling capacity [kW] / (Compressors [kW] + Fans [kW]), versions with AC fans.
4Data valid for hydraulic configuration “0” only.
5SEPR = Data according to European Regulation (EU) 2016/2281 Ecodesign (high temperature process chillers). Basic unit, hydraulic version “0”, versions with AC fans.
6SEPR = Data according to European Regulation (EU) 2016/2281 Ecodesign (high temperature process chillers). Basic unit, hydraulic version “0”, versions with EC fans.
| Model | ECA1421 MT | ECA1621 MT | ECA1821 MT | ECA2121 MT | ECA2421 MT |
|---|---|---|---|---|---|
| Cooling Capacity1 Cooling Capacity2 |
106.2 kW 147 kW |
118 kW 157 kW |
135 kW 185 kW |
153 kW 212 kW |
171 kW 240 kW |
| Input Power1,4 Input Power2,4 |
34.9 kW 30.9 kW |
40.1 kW 35.8 kW |
44.5 kW 39.2 kW |
52 kW 46.8 kW |
58.4 kW 53.6 kW |
| Condenser Air Flow | 40,000 m3/h | 40,000 m3/h | 60,000 m3/h | 57,000 m3/h | 55,500 m3/h |
| Fans/Diameter | 2 n°/800 mm | 2 n°/800 mm | 3 n°/800 mm | 3 n°/800 mm | 3 n°/800 mm |
| Fans Input Power (each) | 1.94 kW | 1.94 kW | 1.94 kW | 1.94 kW | 1.94 kW |
| EER1,3 EER2,3 |
3.04 kW / kW 4.75 kW / kW |
2.93 kW / kW 4.38 kW / kW |
3.03 kW / kW 4.73 kW / kW |
2.93 kW / kW 4.54 kW / kW |
2.93 kW / kW 4.47 kW / kW |
| SEPR5 SEPR6 |
5.57 kW 5.81 kW |
5.60 kW 5.88 kW |
5.64 kW 5.93 kW |
5.33 kW 5.76 kW |
5.18 kW 5.63 kW |
| Compressor Number | 2 n° | 2 n° | 2 n° | 2 n° | 2 n° |
| Cooling Capacity Steps | 3 n° | 4 n° | 3 n° | 4 n° | 3 n° |
| Refrigerant Charge | 26 kg | 26 kg | 26 kg | 32 kg | 33 kg |
| Nominal Water Flow Rate1 Nominal Water Flow Rate2 |
18.27 m3/h 25.25 m3/h |
20.23 m3/h 26.97 m3/h |
23.20 m3/h 31.87 m3/h |
26.25 m3/h 36.53 m3/h |
29.46 m3/h 41.25 m3/h |
| Nominal Pressure Drop1 Nominal Pressure Drop2 |
38 kPa 72 kPa |
46 kPa 83 kPa |
39 kPa 73 kPa |
35 kPa 67 kPa |
35 kPa 69 kPa |
| Min/Max Water Flow | 11.5 m3 / 34 h | 11.5 m3 / 34 h | 14.4 m3 / 42 h | 17.3 m3 / 50.5 h | 19.2 m3 / 56 h |
| Min/Max Pressure Drop |
15/131 kPa | 15/131 kPa | 15/128 kPa | 15/128 kPa | 15/128 kPa |
| Shipping Weight (Hydraulic Version 7-8) | 1,502 kg | 1,508 kg | 1,655 kg | 1,690 kg | 1,731 kg |
| Operating Weight (Hydraulic Version 7-8) | 1,987 kg | 1,993 kg | 2,290 kg | 2,325 kg | 2,366 kg |
| Dimensions L x W x H |
2,260 x 1,231 x 3,500 mm | 2,260 x 1,231 x 3,500 mm | 2,257 x 1,231 x 4,000 mm | 2,257 x 1,231 x 4,000 mm | 2,257 x 1,231 x 4,000 mm |
1In/Out evaporator water temperature 12/7°C (100% water), inlet condenser air temperature 35°C, versions with AC fans.
2In/Out evaporator water temperature 20/15°C (100% water), inlet condenser air temperature 25°C, versions with AC fans.
3EER = Cooling capacity [kW] / (Compressors [kW] + Fans [kW]), versions with AC fans.
4Data valid for hydraulic configuration “0” only.
5SEPR = Data according to European Regulation (EU) 2016/2281 Ecodesign (high temperature process chillers). Basic unit, hydraulic version “0”, versions with AC fans.
6SEPR = Data according to European Regulation (EU) 2016/2281 Ecodesign (high temperature process chillers). Basic unit, hydraulic version “0”, versions with EC fans.
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
