CA Series CA4222-7622 432 to 910 kW
Cooling capacity: 432 to 910 kW

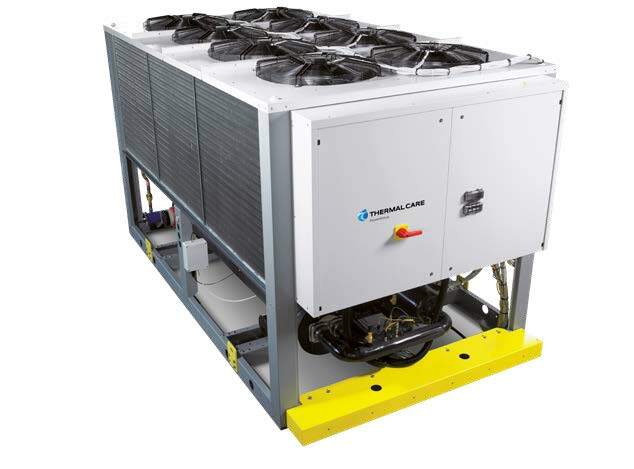

The Thermal Care CA Series air-cooled chillers (models CA4222–CA7622) deliver reliable, high-performance cooling for large industrial and commercial applications.
Designed for outdoor installation, these chillers combine robust dual screw compressors with independent twin refrigerant circuits, ensuring continuous operation even under demanding conditions. With cooling capacities ranging from 432 kW to 910 kW, the CA Series provides flexibility for a wide range of process cooling requirements.
-
Integral free-cooling
-
Digital scroll compressor
-
Single or double circuit with independent temperatures
-
Braised plate evaporator and condenser
Benefits of the CA Series CA4222-7622 Chiller Features
Delivers reliable cooling under all load conditions by allowing each circuit to operate independently, improving efficiency, balancing compressor workload, and ensuring maximum uptime.
Provides temperature stability and efficiency by regulating refrigerant flow to the evaporator. This ensures high precision control even at low flow rates.
Provide smooth, energy-efficient compression with high-capacity performance, reduced vibration, and longterm reliability for demanding industrial applications.
Overview
- Maximum Uptime: Dual independent refrigerant circuits ensure continuous operation even if one circuit is offline, minimizing downtime.
- Industrial Reliability: Robust dual screw semi-hermetic compressors deliver consistent performance under demanding industrial conditions.
- Flexible Cooling Capacity: Available from 432 kW to 910 kW, easily adaptable to a wide range of process cooling needs.
- Energy Efficiency: Shell-and-tube evaporator design optimizes heat transfer for reduced energy consumption.
- Precise Temperature Control: Electronic expansion valves allow accurate, responsive regulation of cooling performance.
- Outdoor Ready Design: Built for outdoor installation, simplifying integration into industrial sites without additional enclosures.
- Advanced Monitoring: Winfactory 4.0 compatibility provides real-time monitoring, diagnostics, and remote control capabilities.
- Environmentally Friendly Options: Optional R513A low-GWP refrigerant (<700) supports sustainability initiatives.
- Easy Maintenance: Modular design and accessible components simplify service and reduce downtime, supporting long-term reliability.
- Warranty: 1 year parts and labor.
Available Options
- Free-Cooling kit
- Heating kit
- Condensation control
- Serial interface board
- Phase sequence control
- PROFIBUS serial interface board
- Water filter 500 microns 1"
- Acoustic visual alarm
Resources
Specifications
Specification Tables
| Model | CA4222 | CA4822 | CA5322 |
|---|---|---|---|
|
Cooling Capacity1 Cooling Capacity2 |
487 kW 327 kW |
541 kW 360 kW |
608 kW 425 kW |
|
Absorbed Power (15°-25°C)3 Absorbed Power (7°-35°C)4 |
121 kW 117 kW |
137 kW 134 kW |
147 kW 148 kW |
|
Installed Power |
180.6 kW |
190.8 kW |
204.2 kW |
|
Compressor Number |
2 |
||
|
Fan Number |
8 |
8 |
8 |
|
EER (15°-25°C)5 EER (15°-25°C)6 |
4.02 kW 2.79 kW |
3.94 kW 2.68 kW |
4.13 kW 2.89 kW |
|
Cooling Partialization |
Continuous modulation (stepless) from 25% to 10% |
||
|
Water Pump Low Pressure |
48 - 120 m3/h 2 - 3 bar 9.2 kW |
48 - 120 m3/h 2 - 3 bar 9.2 kW |
84 - 180 m3/h 1.6 - 2.7 bar 11 kW |
|
Water Pump Medium Pressure |
48 - 138 m3/h 2.9 - 4.1 bar 15 kW |
48 - 138 m3/h 2.9 - 4.1 bar 15 kW |
84 - 180 m3/h 3.2 - 4.7 bar 22 kW |
|
Water Pump High Pressure |
48 - 138 m3/h 4.4 - 6 bar 22 kW |
48 - 138 m3/h 4.4 - 6 bar 22 kW |
84 - 216 m3/h 3.9 - 6 bar 30 kW |
|
Water Connections Gruvlock (In/Out) |
6" |
||
|
Operating Weight |
3,925 kg |
4,000 kg |
4,050 kg |
|
Dimensions L x W x H |
4,110 x 2,250 x 2,470 mm |
4,110 x 2,250 x 2,470 mm |
4,110 x 2,250 x 2,470 mm |
1In/Out evaporator water temperature 15/18°C; ambient temperature 25°C.
2In/Out evaporator water temperature 7/12°C; ambient temperature 35°C.
3Temperature is 15-25°C.
4Temperature is 7-35°C.
5EER = Cooling capacity [kW] / (Compressors [kW] + Fans [kW]); temperature is 15-25°C.
6EER = Cooling capacity [kW] / (Compressors [kW] + Fans [kW]), temperature is 7-35°C.
| Model | CA5822 | CA6522 | CA7622 | |
|---|---|---|---|---|
|
Cooling Capacity1 Cooling Capacity2 |
674 kW 480 kW |
757 kW 538 kW |
871 kW 616 kW |
|
|
Absorbed Power (15°-25°C)3 Absorbed Power (7°-35°C)4 |
164 kW 164 kW |
183 kW 183 kW |
210 kW 210 kW |
|
|
Installed Power |
243.4 kW |
271 kW |
306 kW |
|
|
Compressor Number |
2 |
|||
|
Fan Number |
10 |
12 |
12 |
|
|
EER (15°-25°C)5 EER (15°-25°C)6 |
4.12 kW 2.92 kW |
4.14 kW 2.93 kW |
4.15 kW 2.93 kW |
|
|
Cooling Partialization |
Continuous modulation (stepless) from 25% to 10% |
|||
|
Water Pump Low Pressure |
84 - 180 m3/h 1.6 - 2.7 bar 11 kW |
84 - 180 m3/h 2.2 - 3.3 bar 15 kW |
84 - 180 m3/h 2.2 - 3.3 bar 15 kW |
|
|
Water Pump Medium Pressure |
84 - 180 m3/h 3.2 - 4.7 bar 22 kW |
84 - 180 m3/h 3.2 - 4.7 bar 22 kW |
84 - 180 m3/h 3.2 - 4.7 bar 22 kW |
|
|
Water Pump High Pressure |
84 - 216 m3/h 3.9 - 6 bar 30 kW |
84 - 216 m3/h 3.9 - 6 bar 30 kW |
84 - 216 m3/h 3.9 - 6 bar 30 kW |
|
|
Water Connections Gruvlock (In/Out) |
6" |
|||
|
Operating Weight |
4,725 kg |
5,400 kg |
5,625 kg |
|
|
Dimensions L x W x H |
4,980 x 2,250 x 2,470 mm |
5,850 x 2,250 x 2,470 mm |
5,850 x 2,250 x 2,470 mm |
|
1In/Out evaporator water temperature 15/18°C; ambient temperature 25°C.
2In/Out evaporator water temperature 7/12°C; ambient temperature 35°C.
3Temperature is 15-25°C.
4Temperature is 7-35°C.
5EER = Cooling capacity [kW] / (Compressors [kW] + Fans [kW]); temperature is 15-25°C.
6EER = Cooling capacity [kW] / (Compressors [kW] + Fans [kW]), temperature is 7-35°C.
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
