Aryacool+
Cooling Towers & Adiabatic Fluid Coolers

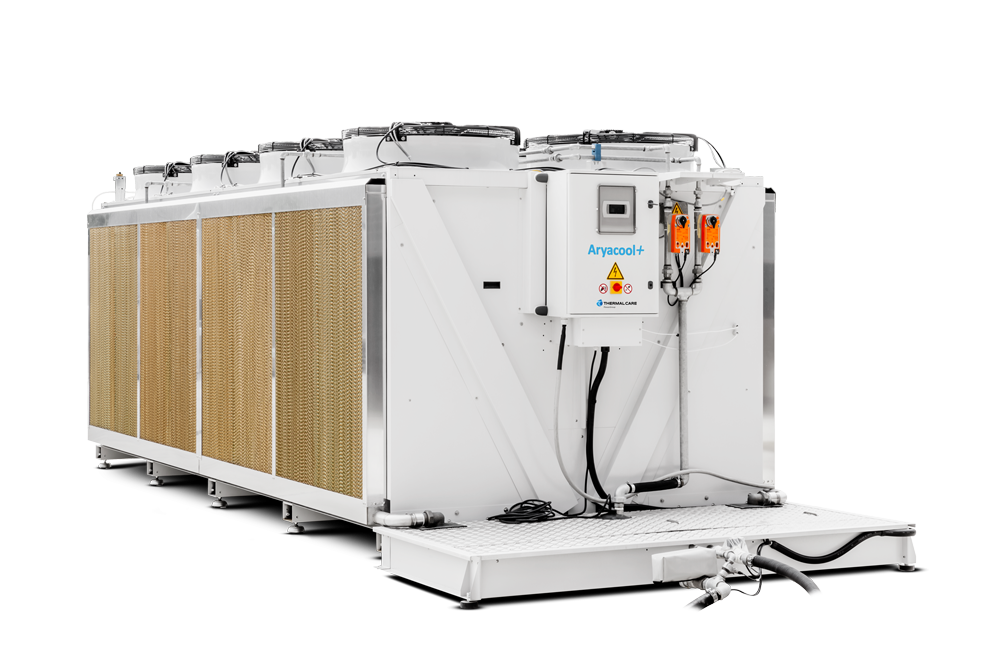

Aryacool+ adiabatic liquid cooler is the synthesis of a decennial global experience and encompasses answers to all those industrial customers who are looking for process sustainability. Cooling capacity from 190 kW to 1.300 kW.
Among the key features to highlight:
- DuoCool control: two independent process temperature
- Self-drain solution: no antifreeze needed in cold area
- Adiabatic booster spray: extra spray for high humidity countries
- Dry version: no PAD and optimized energy consumption
- WRS Water Recovery System: to further reduce water consumption
The logistics are optimised as the unit can be handled by forklift or crane. All versions can be shipped through standard 20 or 40 feet containers.
The HMI is user friendly and can be operated either by remote, through LAN and or Internet.
-
Outdoor Installation
-
Adiabatic Cooling
-
Water-Saving
-
Closed-Loop System
Benefits of the Aryacool+ Industrial Chiller Features
Innovative and patented supporting structure made of welded tubulars offer maximum robustness to avoid any deformation during the lifting and transportation process.
The circuits are designed for counter flow and prevents damage to the pipes caused by thermal expansion.
Maintenance-free, external rotor axial fans with integrated PID control, volt-free contact for reading operating conditions and alarm states.
Increases the performance of the air cooled equipment, reduces the air temperature, increases the efficiency of the heat exchanger and ensure low maintenance.
Galvanized steel structure bolted down to the load bearing surface with a natural rubber elastic body.
Designed to continuously and homogeneously regulate the speed of the EC fan motors using MODBUS RS485 serial communication protocol, as well as control and run diagnostics with on-board systems (adiabatic systems, pressure, temperature and humidity sensors).
Additional Benefits:
- Closed Loop System Technology: It reduces maintenance costs, which prevents the formation of scale on pipes and molds.
- Simplified Maintenance: Evaporative PAD, EC fans, feeding water devices can be easily maintained by any operator. The internal controller automatically recalls maintenance programs.
- High Efficiency Heat Exchangers with Minimum Footprint: The range has been designed to optimize the ratio cooling capacity and surface.
- DuoCool Control: Two independent process temperature settings.
- Self-drain Solution: No antifreeze needed in cold areas.
- Adiabatic Booster Spray: Contains extra spray for high humidity areas.
- Dry Version: No PAD and optimized energy consumption.
- Water Recovery System (WRS): Utilized to further reduce water consumption.
- Adjustable Feet: Helps to keep the unit completely leveled.
Overview
- Flexcoool solution: Aryacool+ is a core unit of the Flexcool solution, supplying the water cooled chillers and the IMM hydraulic heat exchangers
- Industrial plant application: Aryacool+ has been intensively used in power generation, chemical, pharmaceutical and cosmetics
- Touch panel display: user friendly interface
- Adjustable feet to keep the unit level
- Water drainage: any cooling water droplets not fully evaporated are drained into a pipe, avoiding stagnation on the floor below the unit
- Clean process water: due to the closed loop system, no risk of oxidation, algae, legionella bacteria
- Operating cost saving: no formation of scale on pipes, heat exchangers and moulds strongly reduces energy and maintenance costs
- Water Saving: thanks to new Thermal Care technology, Aryacool+ utilises 30% less water compared to market benchmarks
- Extra efficiency: electronic motors (EC) with integrated speed controller, special fan blade with high efficiency (900mm)
- Automatic anti-pollen function: programmable, automatic cycle that reverses the fan rotation and flushes the pollen outwards
- Simplified maintenance: evaporative PAD, EC fans, feeding water devices can be easily maintained by any operator. The internal controller automatically recalls maintenance programs
- High efficiency heat exchangers with minimum footprint: the range has been designed to optimize the ratio cooling capacity/surface
Available Options
- Semi-graphic remote display with cable 50m
- Touch screen remote display 7” with cable 50m
- Acoustic and visual alarm
- Water filter for adiabatic ware circuit (PADS line)
Resources
Specifications
Brochures
Specification Tables
| AFW - Dry Cooler (Adiabatic Version) | AFW0600 | AFW0800 | AFW1000 | AFW1200 | AFW1400 |
|---|---|---|---|---|---|
|
Cooling Capacity1 Cooling Capacity2 |
512 kW 313 kW |
706 kW 453 kW |
883 kW 561 kW |
1,053 kW 663 kW |
1,214 kW 766 kW |
|
Input Power1 Input Power2 |
9.4 kW 10.1 kW |
13 kW 13.3 kW |
16 kW 16.4 kW |
19 kW 20.0 kW |
22 kW 23.2 kW |
|
Water Flow Rate1 Water Flow Rate2 |
88 m3/h 54 m3/h |
121 m3/h 78 m3/h |
152 m3/h 97 m3/h |
181 m3/h 114 m3/h |
209 m3/h 132 m3/h |
|
Water Pressure Drop1 Water Pressure Drop2 |
36 kPa 21 kPa |
78 kPa 50 kPa |
65 kPa 40 kPa |
64 kPa 40 kPa |
59 kPa 37 kPa |
|
Air Flow |
128,000 m3/h |
171,000 m3/h |
214,000 m3/h |
256,000 m3/h |
300,000 m3/h |
|
Evaporated Water |
662 l/h |
884 l/h |
1,106 l/h |
1,323 l/h |
1,551 l/h |
|
Fans/Diameter |
6 n°/910 mm |
8 n°/910 mm |
10 n°/910 mm |
12 n°/910 mm |
14 n°/910 mm |
|
Fans Input Power (each) |
1.6 kW |
1.6 kW |
1.6 kW |
1.6 kW |
1.6 kW |
|
Operating Weight |
2,633 kg |
3,294 kg |
3,955 kg |
4,616 kg |
5,277 kg |
|
Dimensions L x W x H |
5,701 x 2,366 x 2,235 mm |
7,012 x 2,366 x 2,235 mm |
8,323 x 2,366 x 2,235 mm |
9,634 x 2,366 x 2,235 mm |
10,945 x 2,366 x 2,235 mm |
|
Internal Volume |
280 dm3 |
390 dm3 |
490 dm3 |
580 dm3 |
680 dm3 |
|
Sound Power3 |
91 dBA |
92 dBA |
93 dBA |
94 dBA |
95 dBA |
|
Sound Pressure4 |
59 dBA |
60 dBA |
61 dBA |
62 dBA |
63 dBA |
|
Electrical Supply |
400 V / 3 Ph / 50 Hz |
1In/Out water temperature 40/35°C (100% water), air temperature 25°C (EN 1048 data).
2In/Out water temperature 35/30°C (30% ethylene glycol), air temperature 35°C (DB) / 35% (RH).
3Power and sound pressure compliant with Standard EN 13487.
4The sound pressure level at 10m of distance is calculated in free field conditions, therefore it is merely indicative as it will be affected by
the characteristics of the area where it is installed.
| DFW - Dry Cooler (Dry Version) | DFW0600 | DFW0800 | DFW1000 | DFW1200 | DFW1400 |
|---|---|---|---|---|---|
|
Cooling Capacity1 Cooling Capacity2 |
582 kW 309 kW |
802 kW 451 kW |
1,000 kW 557 kW |
1,182 kW 660 kW |
1,374 kW 757 kW |
|
Input Power1 Input Power2 |
8.9 kW 8.9 kW |
11.6 kW 11.6 kW |
14.5 kW 14.5 kW |
17.8 kW 17.8 kW |
20.7 kW 20.7 kW |
|
Water Flow Rate1 Water Flow Rate2 |
100 m3/h 53 m3/h |
138 m3/h 78 m3/h |
172 m3/h 96 m3/h |
203 m3/h 113 m3/h |
236 m3/h 132 m3/h |
|
Water Pressure Drop1 Water Pressure Drop2 |
44 kPa 20 kPa |
98 kPa 49 kPa |
81 kPa 40 kPa |
80 kPa 40 kPa |
74 kPa 36 kPa |
|
Air Flow |
150,000 m3/h |
200,000 m3/h |
250,000 m3/h |
300,000 m3/h |
350,000 m3/h |
|
Fans/Diameter |
6 n°/910 mm |
8 n°/910 mm |
10 n°/910 mm |
12 n°/910 mm |
14 n°/910 mm |
|
Fans Input Power (each) |
1.5 kW |
1.5 kW |
1.5 kW |
1.5 kW |
1.5 kW |
|
Operating Weight |
2,004 kg |
2,583 kg |
3,163 kg |
3,741 kg |
4,320 kg |
|
Dimensions L x W x H |
4,696 x 2,224 x 2,235 mm |
6,007 x 2,224 x 2,235 mm |
7,318 x 2,224 x 2,235 mm |
8,629 x 2,224 x 2,235 mm |
9,940 x 2,224 x 2,235 mm |
|
Internal Volume |
280 dm3 |
390 dm3 |
490 dm3 |
580 dm3 |
680 dm3 |
|
Sound Power3 |
91 dBA |
92 dBA |
93 dBA |
94 dBA |
95 dBA |
|
Sound Pressure4 |
59 dBA |
60 dBA |
61 dBA |
62 dBA |
63 dBA |
|
Energy Class |
D |
C |
C |
D |
D |
|
Electrical Supply |
400 V/3 Ph/50 Hz |
1In/Out water temperature 40/35°C (100% water), air temperature 25°C (EN 1048 data).
2In/Out water temperature 35/30°C (30% ethylene glycol), air temperature 25°C.
3Power and sound pressure compliant with Standard EN 13487.
4The sound pressure level at 10m of distance is calculated in free field conditions, therefore it is merely indicative as it will be affected by the characteristics of the area where it is installed.
Specifications may change without notice. Contact Thermal Care for the most current information. Note that graphics and photos are for illustrative purposes only and may not accurately reflect each product or the most current design.
